SB Acoustics SB16PFCR25-4 6" Paper Cone Woofer - 4 ohm

Manufacturer: SB Acoustics

1 Customer Review(s)

Product ID: SB16PFC25R-4

$38.60

Add to wish list E-mail to a friend

Overview

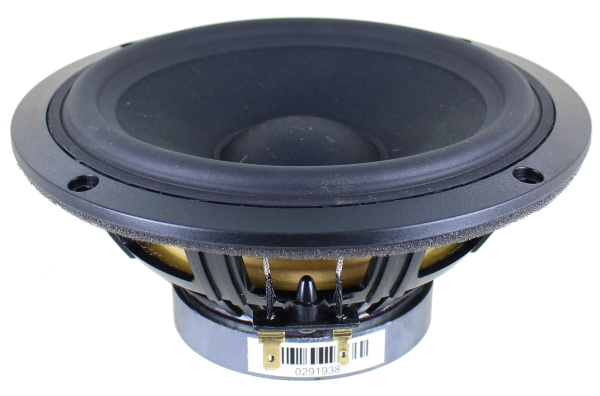

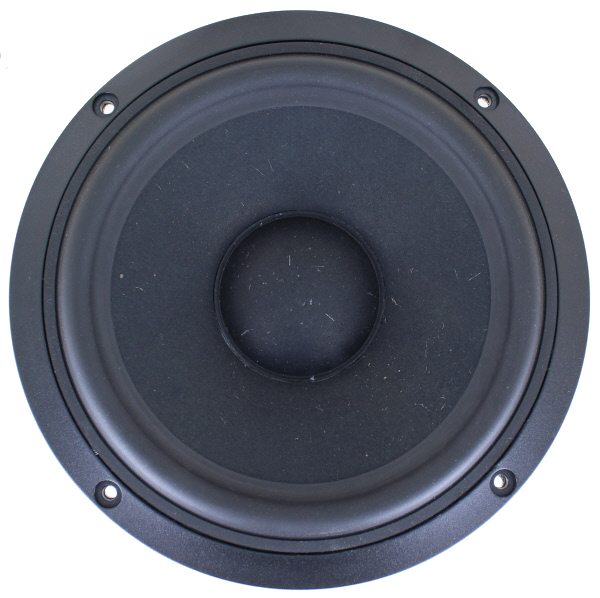

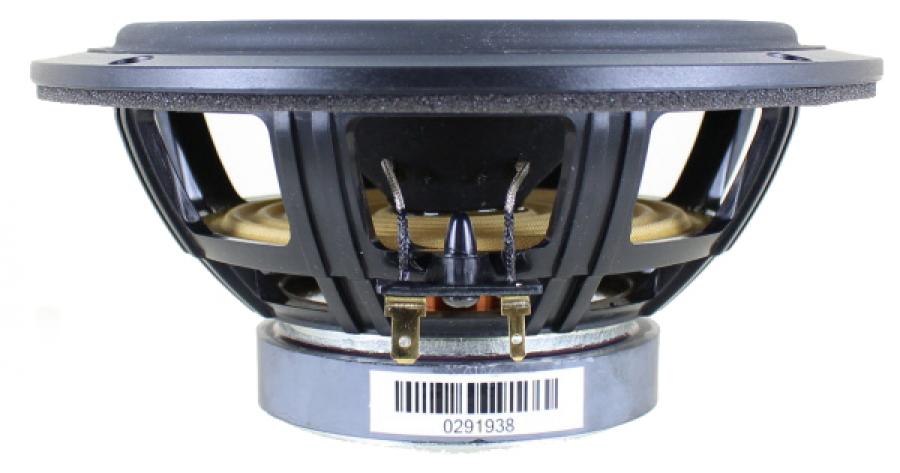

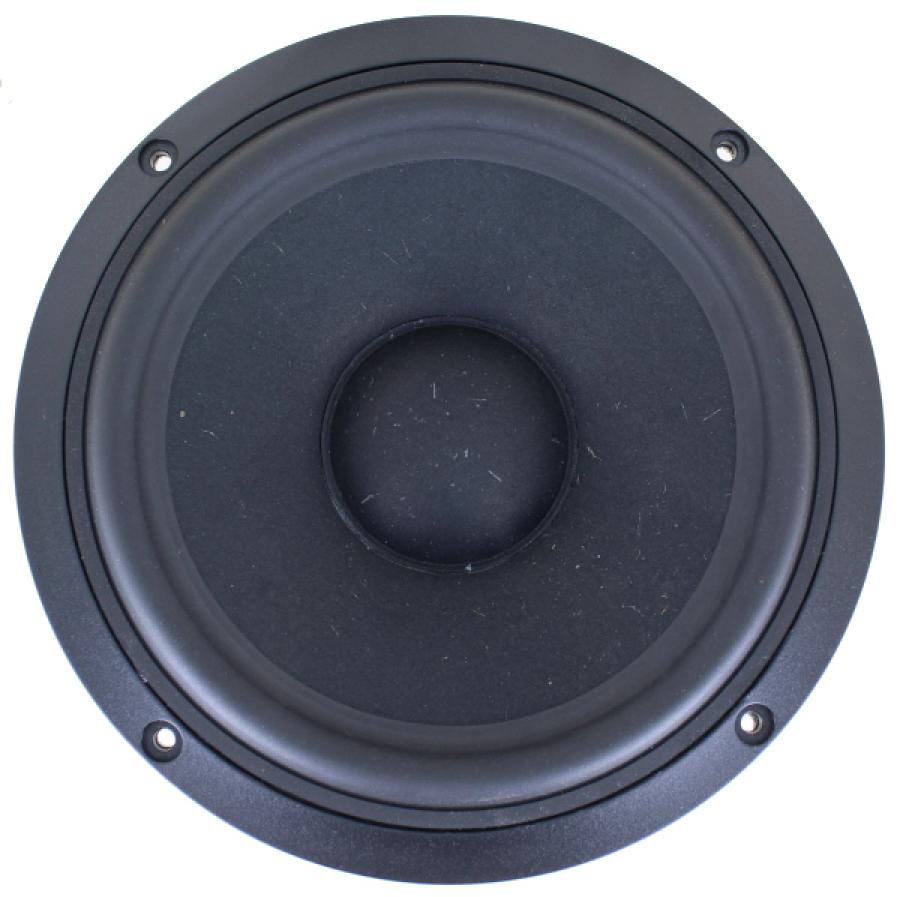

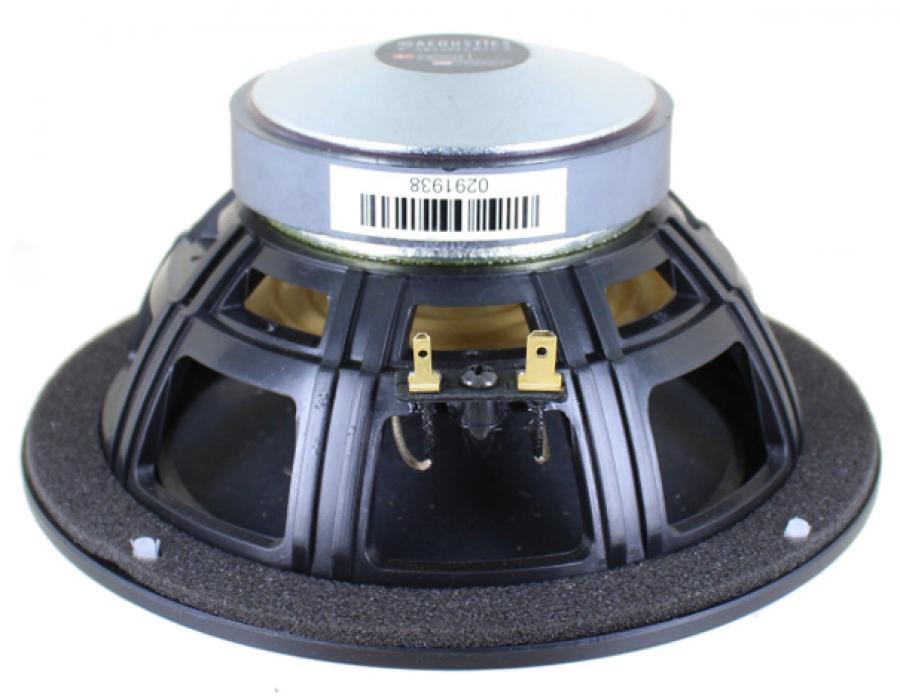

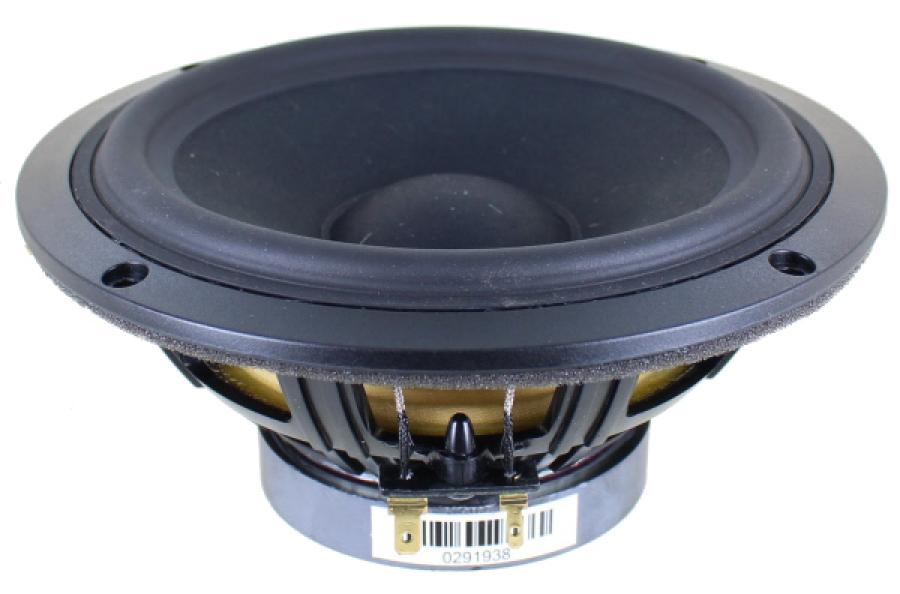

SB Acoustics SB16PFC25R-4 6" Paper Cone Woofer - 176mm -4 ohm- ROUND

SB Acoustics SB16PFC25R-4 6" Paper Cone Woofer - 176mm -4 ohm- ROUND

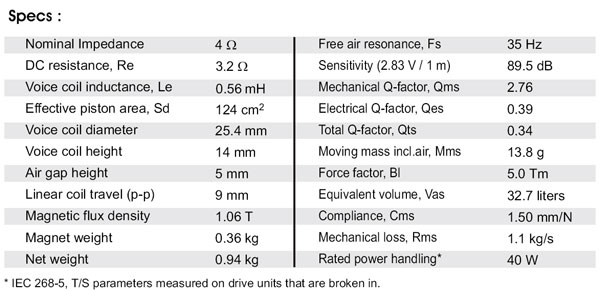

Spec Sheet PDF

Low Q, good in small vented box.

Vented reinforced plastic chassis
Proprietary cone material with natural fibers (made in house)
Low damping rubber surround for improved transient response
Optimized motor system
Vented coil former for low compression
Non-resonant long life lead wires

This woofer is used in Neil Blanchard Designs MLTL-6 speaker build. Flatpacks are available here.

Suggested box alignments:

The SB16PFC25-4 in a sealed box of 0.25 to 0.3 cubic feet (7 liters to 8.5 liters) should have a response of 3dB down on the low end of about 80Hz.

A ported enclosure of 0.4 cubic feet (11.3 liters) with a 1.5" diameter vent by 5.5" long should have a 3dB down point of about 55Hz.

A ported enclosure of 0.5 cubic feet (14 liters) with a 1.5" diameter vent by 5" long should have a 3dB down point of about 50Hz.

1 Customer Review(s)

Verified Purchase

Wonderful Woofer - A High Performace Driver

Reviewed by NeilBlanchard on 05/11/2024

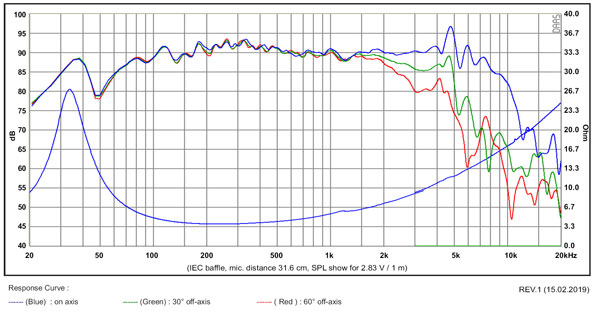

This woofer is a standout performer - and it ticks a lot boxes, as it were: paper cone, high compliance suspension, Fs 35Hz, and has a very smooth and extended response; in both directions. It has fairly high sensitivity for its size. It has a vented spider, and the voice coil is vented here, as well. It is an incredible value, and is a great driver that belies its price.

I am using it in 2 different mass loaded transmission line cabinets - the MLTL-6 stand mount, that has a fundamental frequency of 32Hz - which is phenomenal. And the other is the Tower 6, that has an even lower fundamental frequency of 28Hz! The Mms of 13.8 grams means that the midrange quality is also excellent.

The build manual for my MLTL-6 stand mount speakers is available here:
https://www.nbdesigns.work/shop/p/mltl-6-mass-loaded-transmission-line-speaker-build-manual

The build manual for my Tower 6 floor standing speakers is available here:
https://www.nbdesigns.work/shop/p/tower-6-mass-loaded-transmission-line-speaker-build-manual-1

Both speakers use an excellent tweeter, also from SB Acoustics - the SB26STCN-C000-4 https://www.madisoundspeakerstore.com/sb-acoustics-soft-dome-tweeters/sb-acoustics-sb26stcn-c000-4-tweeter-4-ohms/

The Cheap Audio Man has a review video of the MLTL-6 speakers:
https://www.youtube.com/watch?v=jwzLeDOdoKY

ABX Audiophiles has the part of a build/review of the MLTL-6 speakers with the available CNC cut Baltic birch flat pack:
https://www.youtube.com/watch?v=VDUfPH0q5no
