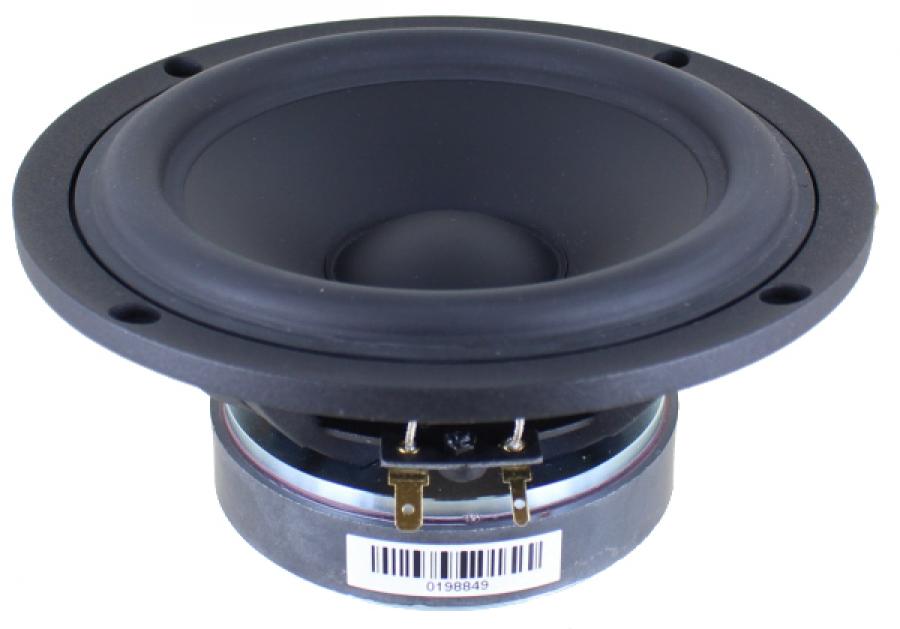

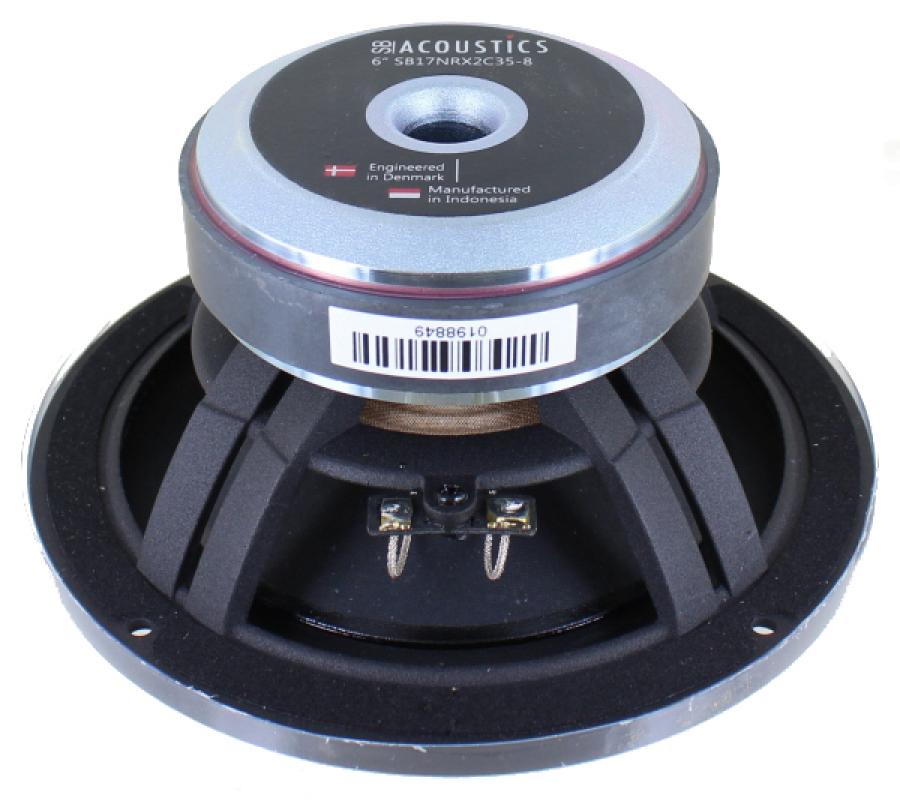

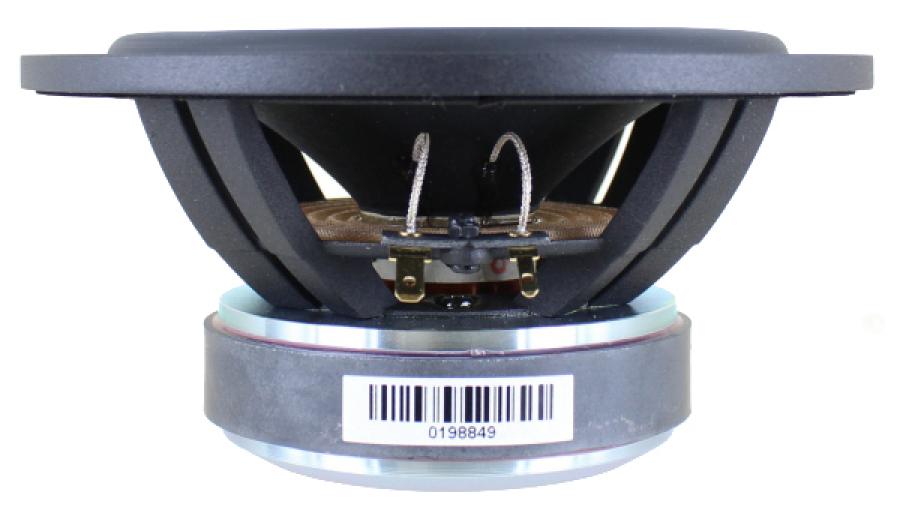

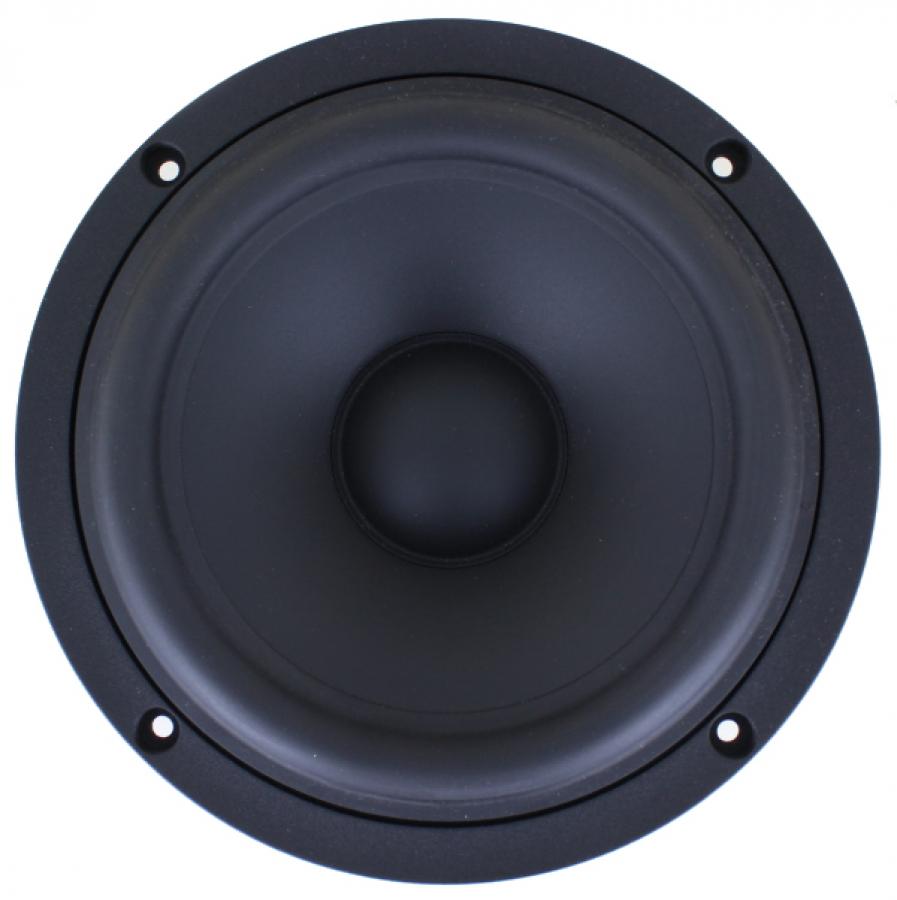

SB Acoustics SB17NRX2C35-8 6" Woofer, paper cone, new version, 8 ohm

SB Acoustics SB17NRX2C35-8 6" Woofer, paper cone, new version, 8 ohm

New from SB! This model replaces the discontinued SB17NRXC35-8.

SB17NRXC35-8 + SB29RDC-C000-4 Passive Crossover Design

• Vented cast aluminum chassis for optimum strength and low compression
• Proprietary cone material with natural fibers made in-house
• Soft low damping rubber surround for transient response
• Non-conducting fiber glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and low distortion
• Vented coil former CCAW voice coil for reduced moving mass
• Long life silver lead wires
• Vented pole piece for reduced compression

Suggested alignments:

• Sealed box of 0.25 cubic feet for F3 of 80Hz
• Vented box of 0.6 cubic feet with 50% filling, 2" vent by 7" long, F3 of 45Hz
