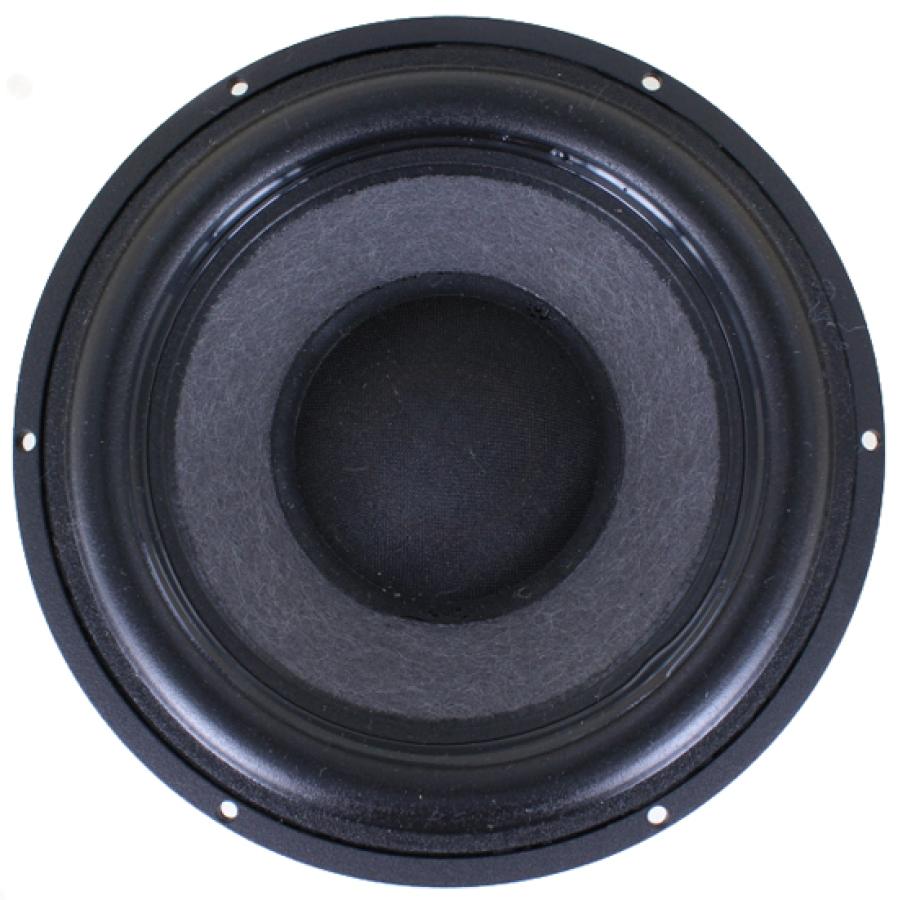

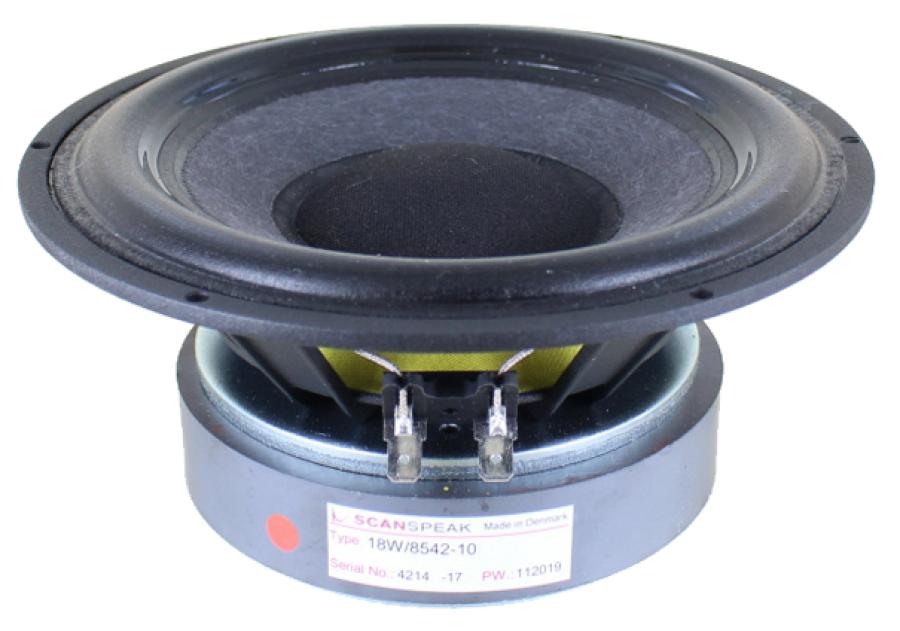

ScanSpeak Classic 18W/8542-10 7" Mid Woofer Paper Cone

ScanSpeak Classic 18W/8542-10 7" Mid Woofer Paper Cone- 177mm- 8 ohm

Spec Sheet PDF

New version with Aluminum Basket! Replaces the 18W/8542-00

The heritage, quality and success of Scan-Speak’s designs during decades live on in the Classic family, with such patented and proprietary technologies as; Symmetrical Drive, Low Loss Linear Suspension, air dried paper/carbon fiber cones and coated textile diaphragms.

This Scan-speak 7" woofer features a coated paper cone that delivers very smooth and warm reproduction with excellent detailing. We recommend this driver for high quality 2-way systems of bass reflex design. This driver has the SD magnet system, aluminum cast frame, aluminum former and wire. The surround is a double coated foam material with long term stability.

This is your best choice to replace a Proac Studio 100 woofer.

Also written as: 18W/8542-00, 18W854200, 18W 8542 00, 18W 854200

· Patented Symmetrical Drive Motor Design

· 42mm Voice Coil

· Low Damping Black Coated Foam Surround

· Air Dried Paper/Nylon Fibre Cone

· Low-Loss linear suspension

· Die-cast alu. chassis

Box Suggestions:

0.2 cubic foot sealed box for F3 of 115Hz

0.35 cubic foot box with 1.5" diameter vent by 6" long for F3 of 70Hz

0.55 cubic foot box with 2" diameter vent by 4" long for F3 of 55Hz
