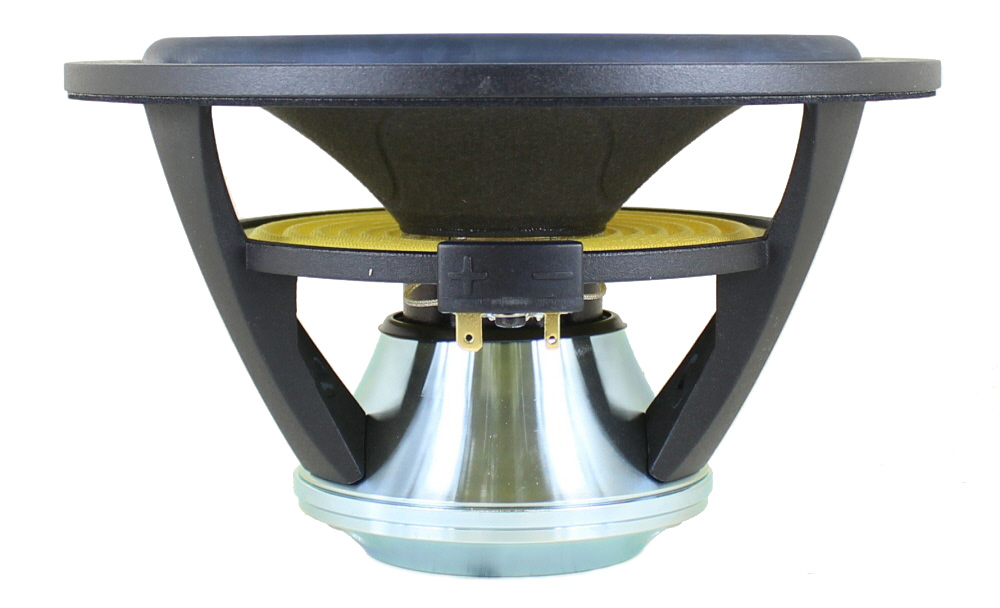

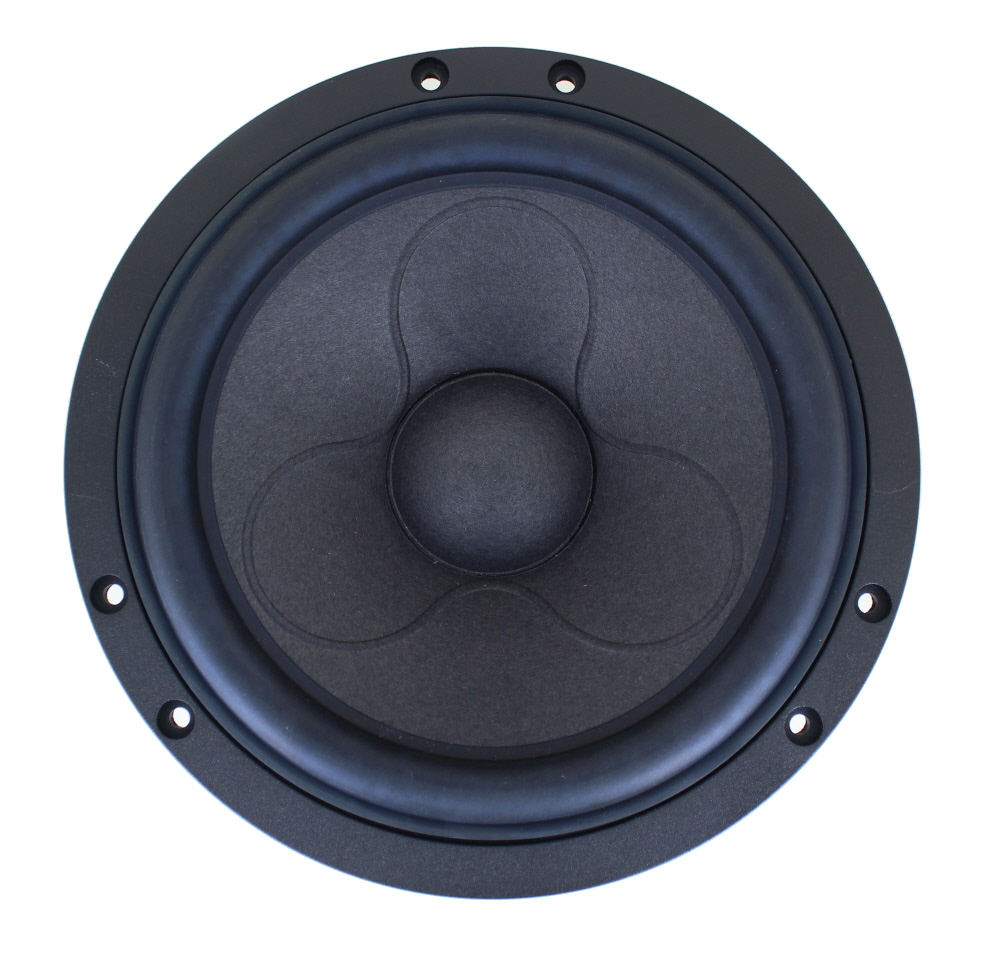

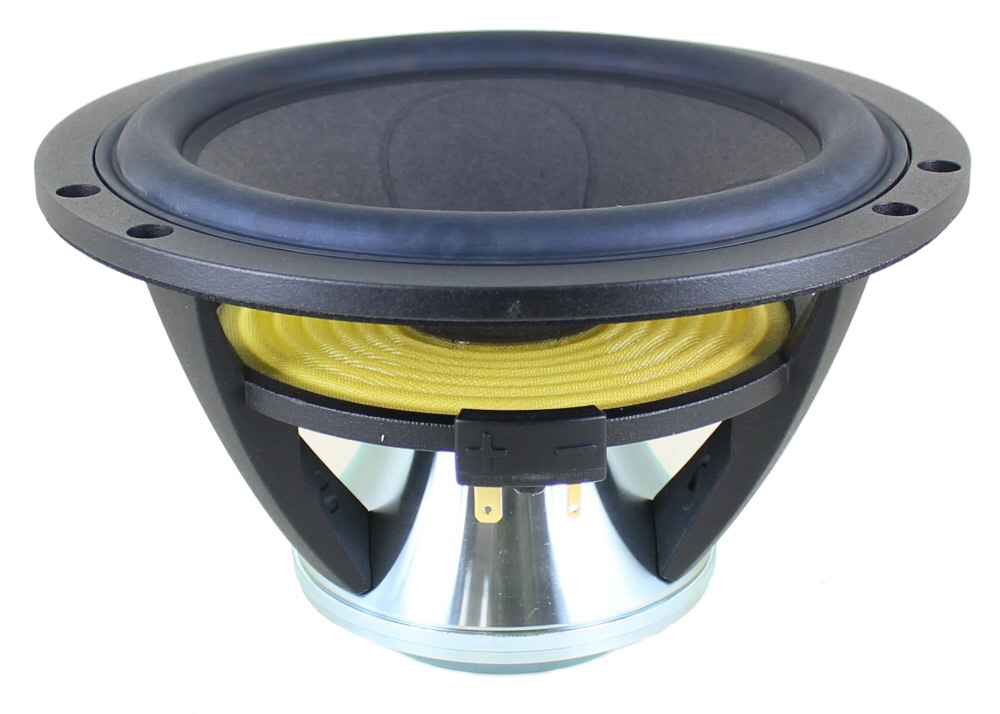

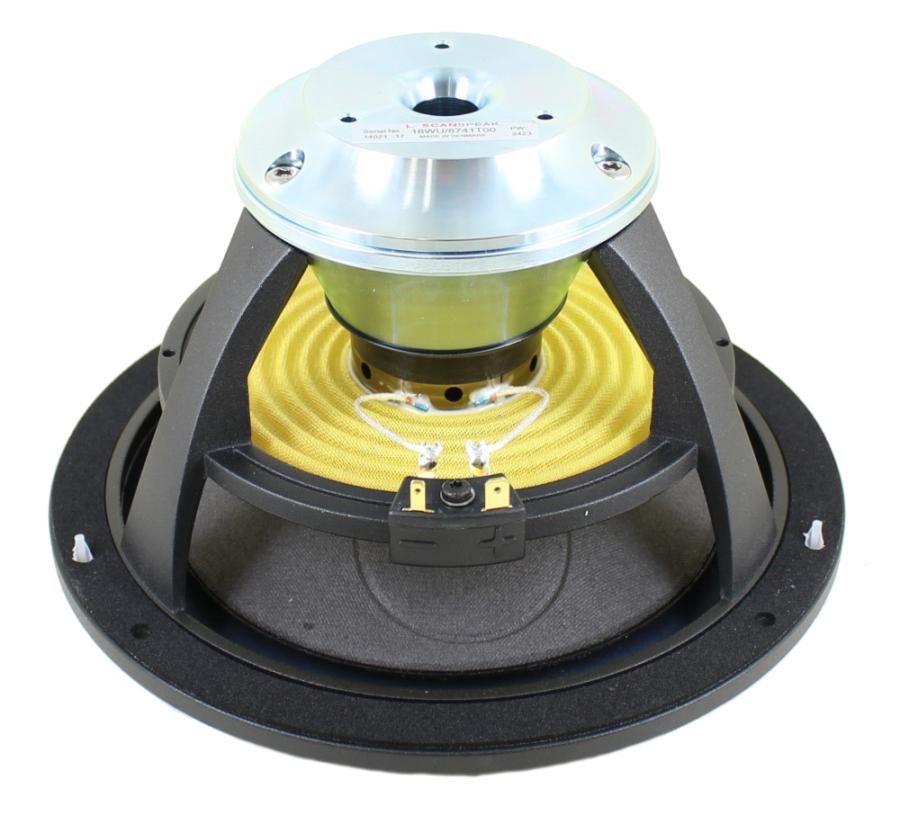

ScanSpeak Illuminator 18WU/8741T 7" Woofer, 8 ohm

ScanSpeak Illuminator 7" Paper Cone Woofer 18WU/8741T-00- 184mm- 8 ohm

Scan Speak PDF

The Illuminator woofers are in every aspect unusual designs with the open construction, the extremely long linear excursion and patented under-hung SD-3 (Symmetrical Drive) neodymium motor system, which due to copper caps and its construction ensures very low distortion, adding the unique patented cones, low-loss linear suspension the result is: ”The Very Best Money Can Buy”!

The Illuminator woofers are based on compact underhung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor, and with the very open cast aluminum chassis design the driver is virtually free from compression.

Sample LEAP crossover designs using the 18WU/8741T-00:

18WU8741T x2 +D30046640Be MTM Passive Crossover Design

Passive Crossover Design for 18WU8741T + SB29RDCC0004

• Underhung voice coil
• Neodymium magnet
• Exceptionally long linear excursion
• Paper cone
• 8 ohm

Madisound Recommends:

• Sealed box of 0.4 cubic feet for F3 of 70Hz
• Vented box of 0.5 cubic feet with a 2" diameter vent by 8" long for F3 of 54Hz
• Vented box of 0.75 cubic feet with a 2" diameter vent by 8" long for F3 of 48Hz

Also written as: 18WU/8741T-00, 18WU8741T00, 18WU 8741T 00, 18WU 8741T00, 18WU8741T, 18WU 8741T00
