Fostex FE206NV2 8" Full Range

Fostex FE206NV2 8" Full Range

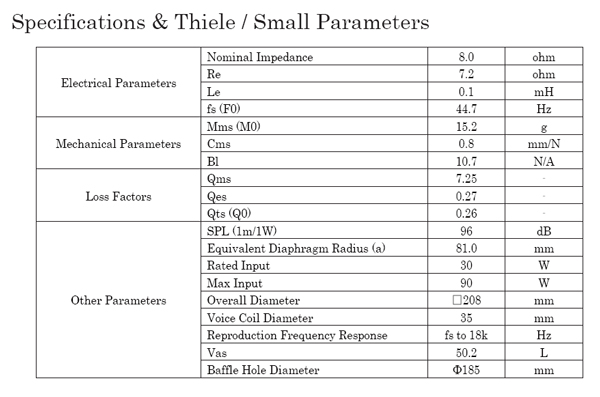

Spec Sheet PDF

The FE series full-range speaker units, where the tradition of Fostex is alive, are renewed to FE-NV2 series in order to further promote environmental friendliness in this era.

Points changed from FE-NV series

・ To promote environmental responses, changed some adhesives

・ To reduce paper resources, the product specification sheet is to download from homepage

Performances and specifications are the same as current FE-NV series models.

Depending on the model, NV2 series will be supplied once the current NV series inventory runs out. New cone paper is based on vigorously beaten kenaf fiber. Mixing long and short fibers of non-wood pulp maintains appropriate internal loss and stiffness. By mixing chemical fiber and mineral ore as secondary material, it improves propagation speed and rigidity.

The metallic eyelets used to be added to the diaphragm result in uneven weight balance, causing unequal split resonance in addition to the annular vibration mode possessed by the cone-shaped diaphragm,which causes distortion in the midrange. By eliminating the metallic eyelets new FE-NV series offer reduced harmonic distortion in the midrange.

The pocket neck damper developed in the FF-WK series has been adopted to continue the three-point bonding of the voice coil and the damper and cone paper on the same circumference. The shape and material of the dampers have been reviewed for more linear amplitude characteristic than the current FE-En series.

A low-loss gold-plated terminal with Faston 205 type has been adopted as input connector.

We don't have a Fostex grill that fits this speaker, but there is a WO24 Satori grill that works.
