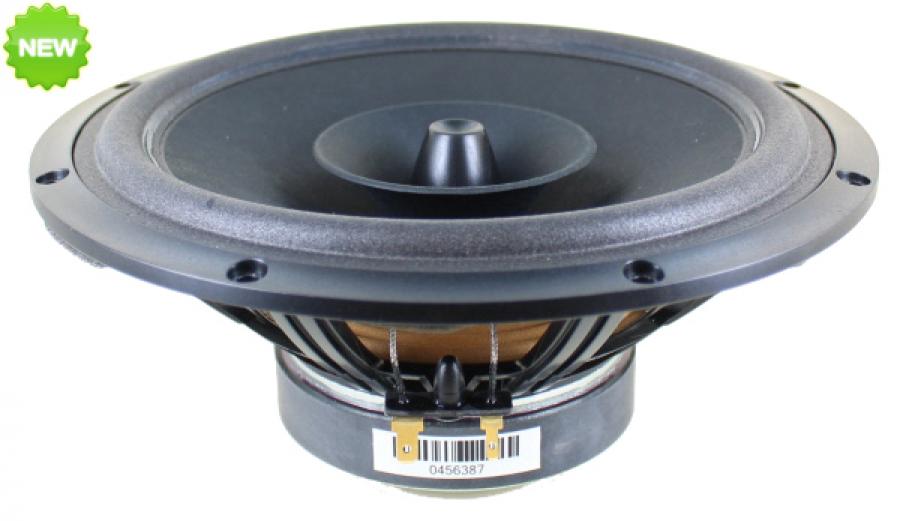

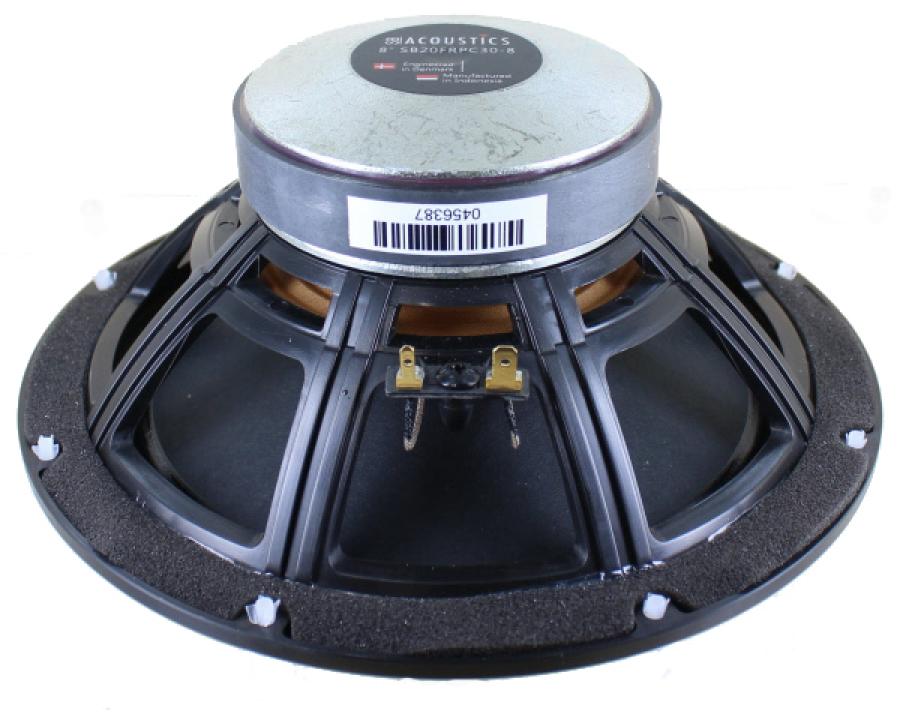

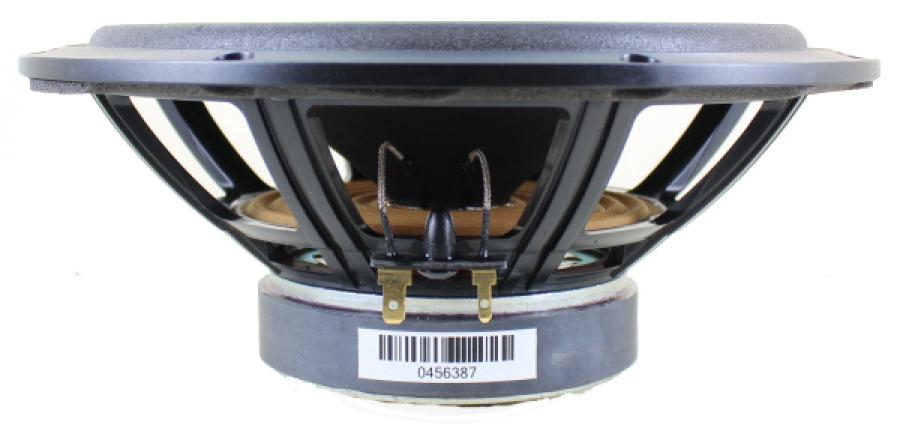

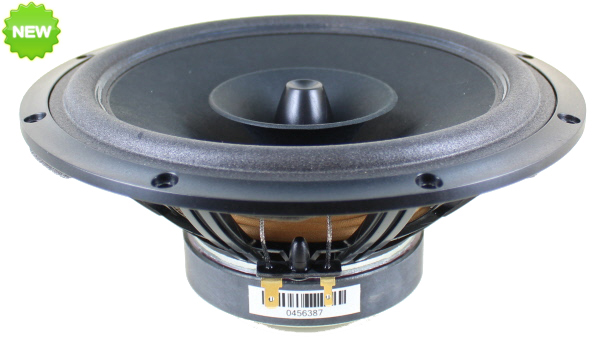

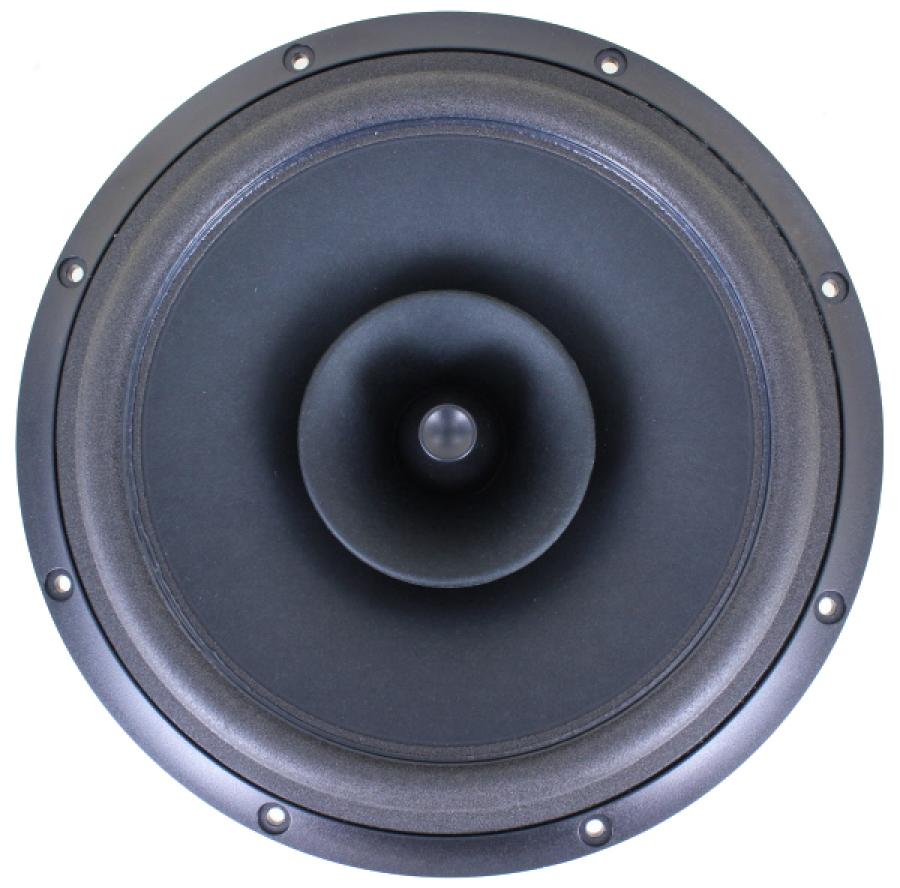

SB Acoustics SB20FRPC30-8 8" Paper Full Range

SB Acoustics SB20FRPC30-8 8" Paper Full Range- 218mm- 8 ohm

Spec Sheet PDF

High Qts, good for sealed box. Some sample boxes below.

Using a proprietary paper blend cone made in-house this woofer delivers good mid/bass response, extended by the use of a optimized “whizzer” cone. This is supplemented by the use of a phase cone to better radiate the high frequency output. The paper blend cone is made in-house to ensure quality control. This makes this a good “bang for the buck” full range driver.

• Proprietary cone material with natural fibers made in-house
• Light weight foam surround
• Optimized whizzer cone for smooth high frequency extension
• Phase plug for controlled radiation
• Large spider for improved linearity
• Optimized motor system
• Vented reinforced plastic chassis
• Non-conductive coil former
• Long life lead wires
• Extended copper sleeve on pole piece

Sample Boxes:

• 0.6 to 1.0 cf3 sealed F3 75Hz
• 1.0 cf3 vented, single straight port 2” x 5” F3 55Hz
• 1.25 cf3 vented, single straight port 2” x 4” F3 52Hz
• 1.5 cf3 vented, single straight port 3”x 6” F3 46Hz
• You might also consider a transmission line enclosure http://www.mh-audio.nl/Calculators/TML.html
