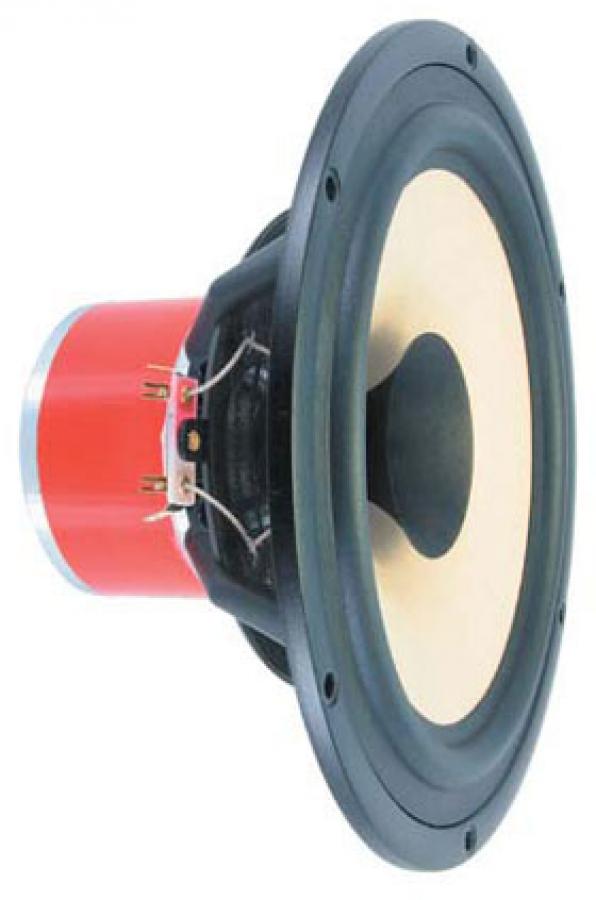

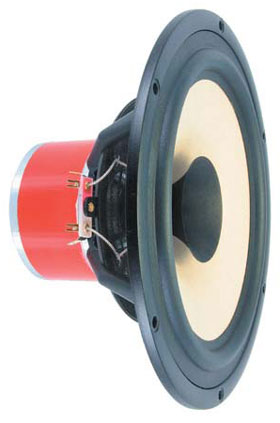

SEAS Exotic X1-08, F8, 8 ohm, 8" Full Range Driver

Special Order. Lead time is usually about 4 weeks.

SEAS X1-08 Exotic F8, 8 ohm, 8" Full Range Driver- 220mm- 8 ohm- 93 dB

Spec Sheet PDF

Considered to be one of the best full-range drivers in the world.

• Consider purchasing the F8 Crossover.
•

• Download the F8 Exotic User Guide.
•

• Magazine review of the F8 (in German)

This full range 8 inch driver has a paper cone with papyrus fibers to optimize stiffness and damping, and high frequency whizzer cone perfectly matched to the cone. Special foam rubber surround that reduces mass of surround by 40% compared to regular rubber surrounds, which results in higher sensitivity for the driver, and excellent damping properties.

New GVD technology is combined with an extremely open weave spider. The threads in the weave are woven together in a way that makes the spider silent. In other words, the noise from the threads rubbing together is completely gone. The open weave is practically fully acoustically transparent and resonance problems caused by traditional spiders are reduced to a minimum. High temperature voice coil wound on a stiff and rigid glass fiber former. AlNiCo Magnet system in addition to a copper cap on the pole piece and an underhung voice coil reduce non linear distortion to a minimum.

H2 lead out wires prevent roping and resonances.

We recommend using a 60 liter (2 cubic foot) sealed box for this speaker.
