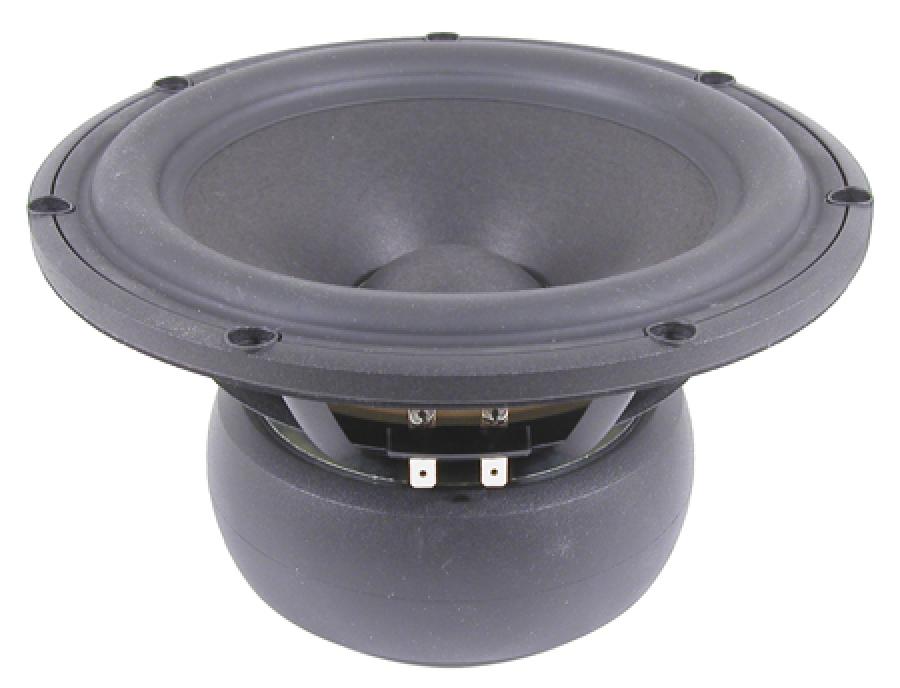

ScanSpeak Revelator 22W/4851T 8" Paper Cone Woofer, 4 ohm

ScanSpeak Revelator 22W/4851T00 8" Paper Cone Woofer- 222mm -4 ohm

Spec Sheet PDF

Also written as: 22W/4851T-00, 22W4851T00, 22W 4851T 00, 22W 4851T00, 22W4851T 00, 22W/4851T, 22W /4851T-00, 22W4851T

Good for moderate-sized ported box, please see some Madisound suggestions below.

The Scan-speak 22W/4851T is a new addition to the Revelator line. This robust 8" woofer was designed to provide deep and accurate bass in a small enclosure. This woofer features a 2" voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max ensures good linear travel. The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.

• 1.0 cubic foot enclosure with a 3"Ø vent by 9" long for F3 of 39Hz.
• 1.25 cubic foot enclosure with a 3"Ø vent by 8" long for F3 of 37Hz.
• 1.50 cubic foot enclosure with a 3"Ø vent by 7.5" long for F3 of 34Hz.

Scan-Speak DIY Kits:

Ellam FLEX 3W (D3004/660000 or R3004/662000, 15W/8530K00, 22W/4851T00)
ScanSpeak Revelator-3WC
(D3004/660000, 15M/8631G00, 22W/4851T00)
ScanSpeak Revelator-851 (D3004/660000, 15M/8631G00, 22W/4851T00)
