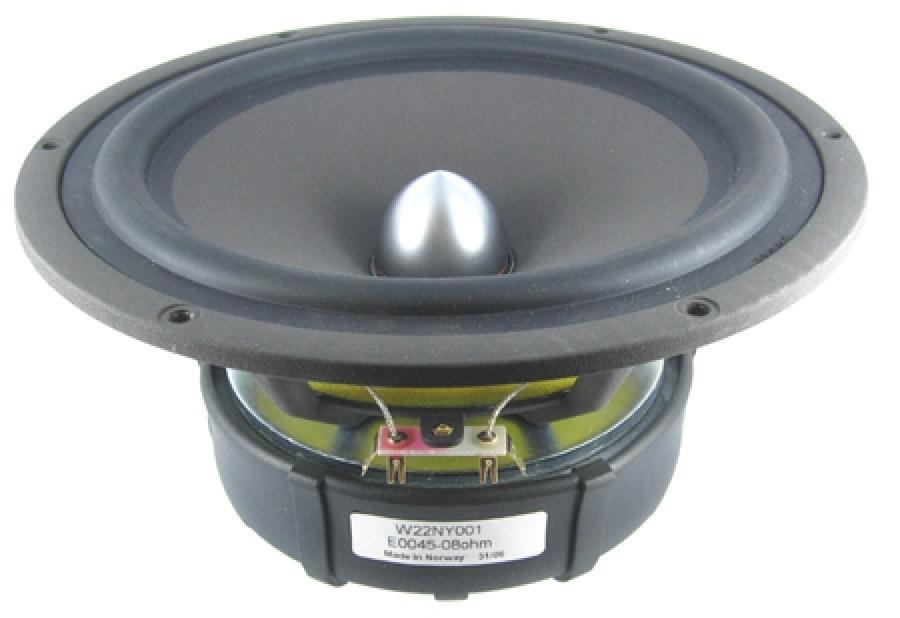

SEAS Excel W22NY-001 (E0045) 8" Nextel Cone Woofer

Special Order. Lead time is about 30 days.

Seas Excel W22NY-001 8" Nextel Coated Paper Cone Woofer with Chrome Plate Brass Phase Plug- 221mm- 8 ohm

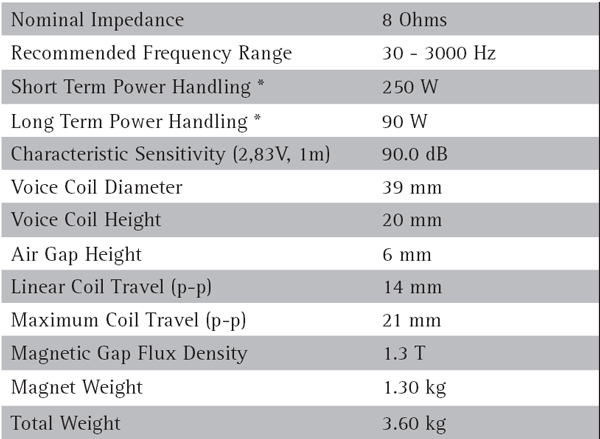

Spec Sheet PDF

Smooth midrange for 8" with good control from phase plug. Excellent bass potential as low as 40 Hz region in large vented box. For those not familiar, Nextel is a trademarked range of coatings from German company Mankiewicz Gebr. & Co., famous for its matte, suede-like results, extremely popular in electronics and speaker cabinet finishes used by many European brands.

A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. A large magnet system with a bumped back plate, together with a very long and light weight CCAW voice coil, allow extreme coil excursion with low distortion and excellent transient response. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increase long term power handling capacity and eliminates resonances in the cavity inside the voice coil former. The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Exceptionally smooth response. Good choice in a 2-way or for a powerful satellite in a sat/sub system.

Suggested Box Alignments

Sealed box of 0.35 cubic feet for F3 of 100Hz. 50% filling

Vented box of 0.8 cubic feet for F3 of 56Hz. 3" diameter vent by 6.5" long

Vented box of 1.2 cubic feet for F3 of 48Hz. 3" diameter vent by 5.1" long

Vented box of 1.6 cubic feet for F3 of 43Hz. 3" diameter vent by 4.4" long

Vented box of 2.0 cubic feet for F3 of 39Hz. 3" diameter vent by 3.8" long or 4" diameter vent by 8.1" long
