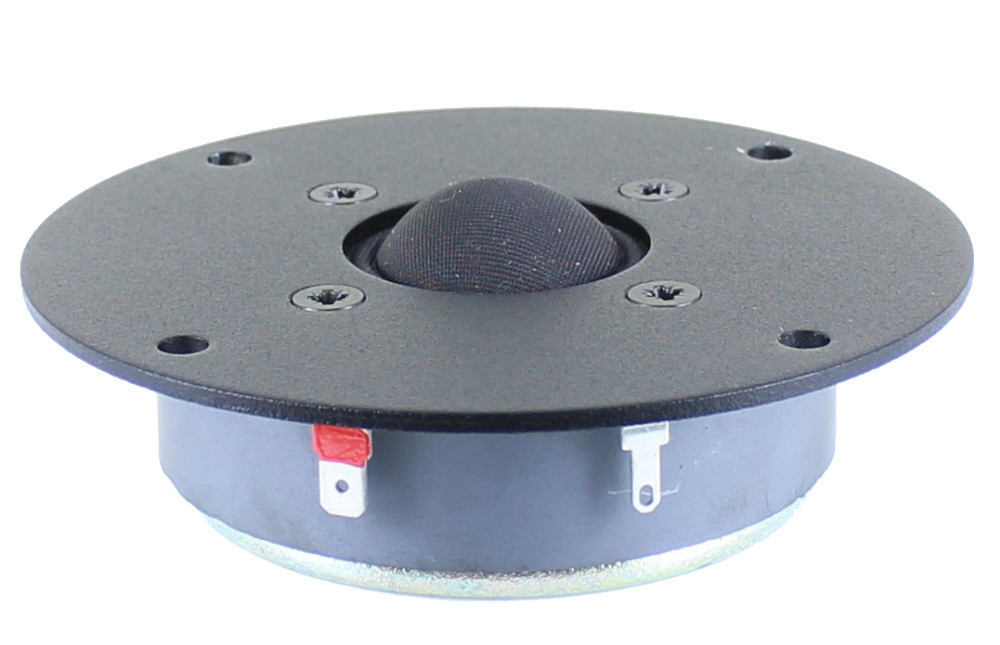

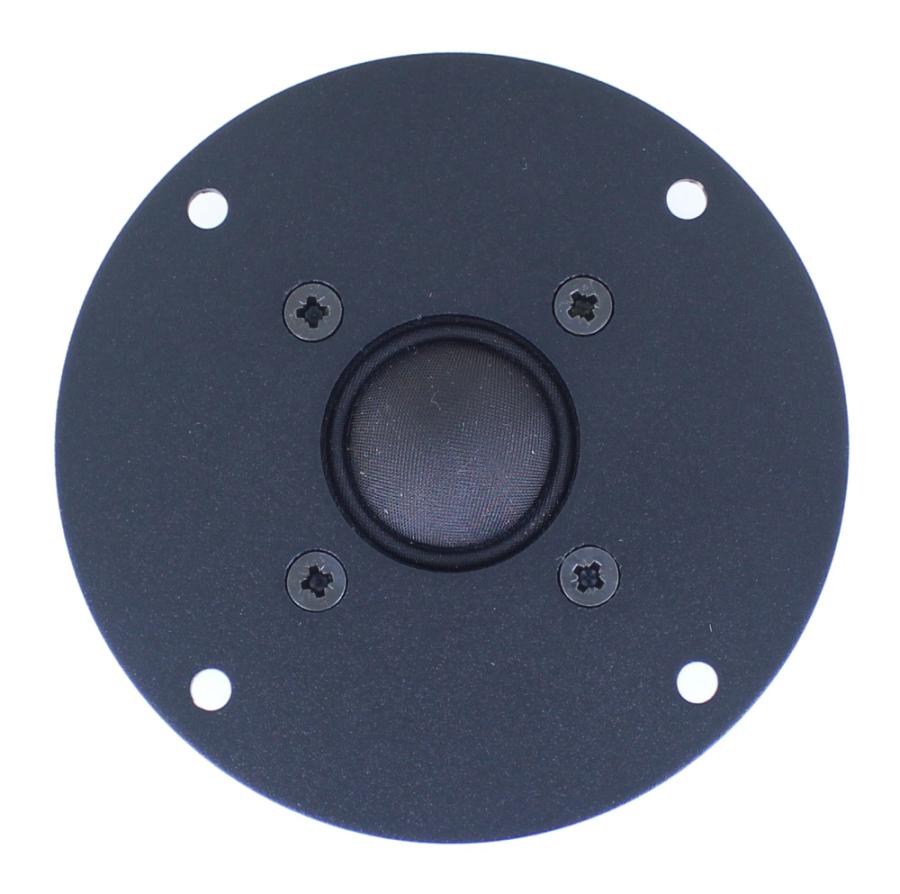

Audax TW025A2 1" textile dome 4 ohm tweeter
The catenary (curved) shape of this textile dome provides stiffness at the tip, so the moving mass behaves more like a perfect piston. This prevents out of phase break-up and the resulting sound is smooth, clean and effortless. Low resonant frequency. Made in France.
- Catenary profile impregnated textile dome
- Aluminum Face Plate, painted black
- 4 ohm version
- Flange 100mm (3.94")
- Cut out 73.5mm (2.9")
- Depth from back of flange 23.5mm (0.94")
- Used in the Spica TC50 speaker (exact replacement)
- Consider as replacement for Kef 104/2 tweeter (also MDT29-4)
- Snell Type A iii replacement (swap your Audax HD12x9D25 4ohm faceplate)
- Made in France
- Positive red terminal use QC205-R Red Quick Connect 0.205 inch
- Negative terminal use QC110-B Black Quick Connect 0.11 inch
- Terminal sizes have changed sizes over the years - current production different than pictured
- TW025AO 8ohm version also available
Manufacturer |
AUDAX |
Tweeter Type |
Textile Dome Tweeter |
Cone / Dome Diameter |
25mm |
Impedance |
4 ohms |
Power Handling (RMS) |
55 W |
Resonance Frequency |
1090.5 Hz |
Sensitivity |
93 dB |
There are 4 mounting screws that attach the faceplate to the magnet. The spacing from one screw to the next is 34mm. This information might be useful if you have another faceplate shape (Audax or otherwise) with 4 holes and you need to attach it to a new motor on this tweeter.
