Audax HM170Z18 6.5" Aerogel Coated Paper Cone Woofer
Audax by AAC has released the popular Aerogel cone version of their 6.5" mid bass. While the Xmax on this unit makes it more suitable as a midrange, the performace is superb. It features a cast aluminum basket and phase plug. The cone is made of a unique acrylic polymer gel with a blend of Kevlar and carbon fibers embedded into it. This results in an ultra light and extremely rigid cone that produces outstanding clarity, precise imaging and unequaled sonic definition. Developed for no compromise high end designs, these drivers feature a die cast Zamak chassis.

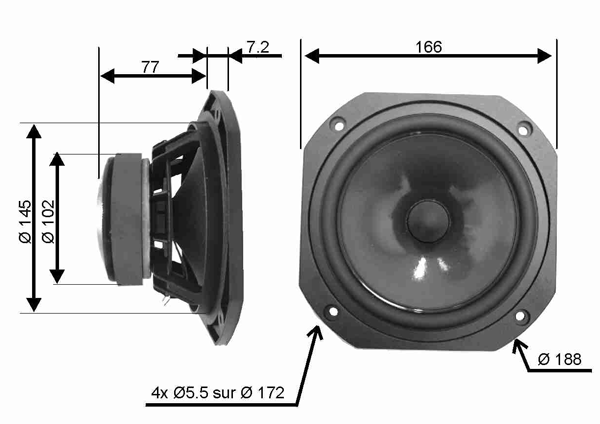

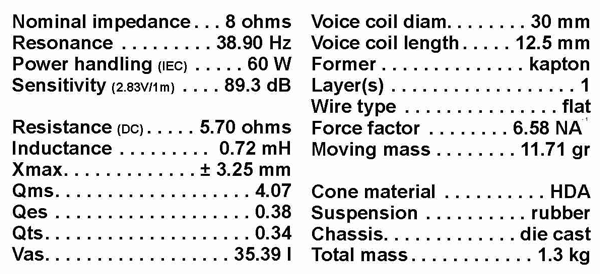

Specifications: • Power handling: 60 watts RMS/85 watts max • Voice coil diameter: 1-1/8" • Voice coil inductance: 0.72 mH • Nominal impedance: 8 ohms • Re: 5.7 ohms • Frequency range: 39-4,000 Hz • Magnet weight: 12 oz. • Fs: 38.9 Hz • SPL: 89.3 dB 2.83V/1m • Vas: 1.25 cu. ft. • Qms: 4.07 • Qes: 0.38 • Qts: 0.34 • Xmax: 3.25 mm • Net weight: 3.5 lbs. • Dimensions: Overall Diameter: 6-1/2", Cutout Diameter: 5-3/4", Mounting Depth: 3", Magnet Diameter: 3-1/4", Magnet Height: 1-1/8".
PDF Spec Sheet
- Made in France
- Aerogel Coated Paper Cone (Aerogel dries to a thin and stiff coating)
- Phase plug
- Diecast chassis
- High loss rubber surround
- High temperature voice coil
- Frequency response 40Hz to 4kHz
Suggested Box:
0.25 cubic foot sealed box for an F3 of 95Hz.
0.5 cubic foot vented box with 2" port by 5.25" long for an F3 of 60Hz.
0.7 cubic foot vented box with 2" port by 4.25" long for an F3 of 55Hz.
