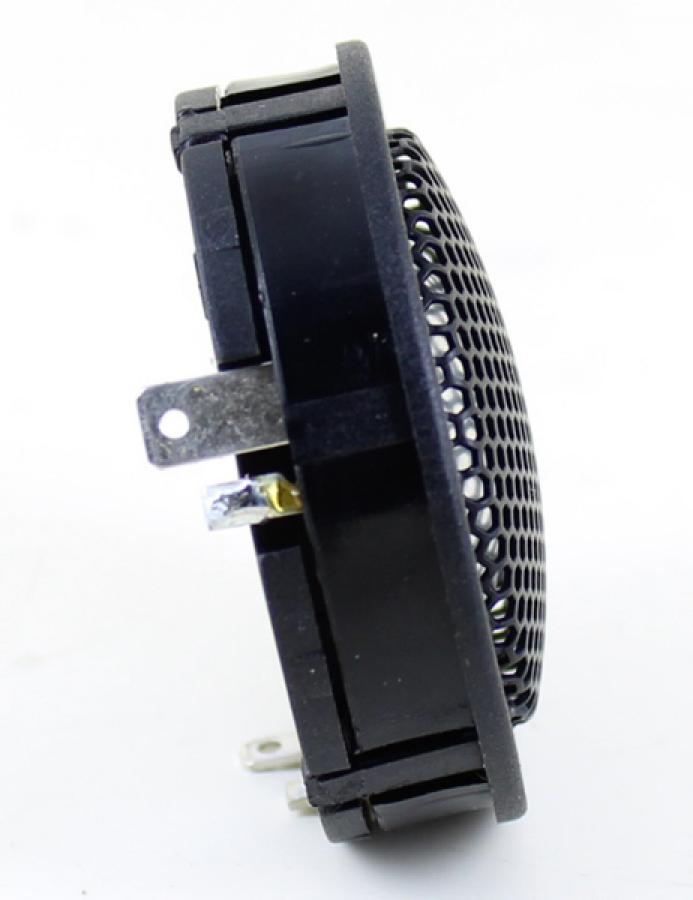

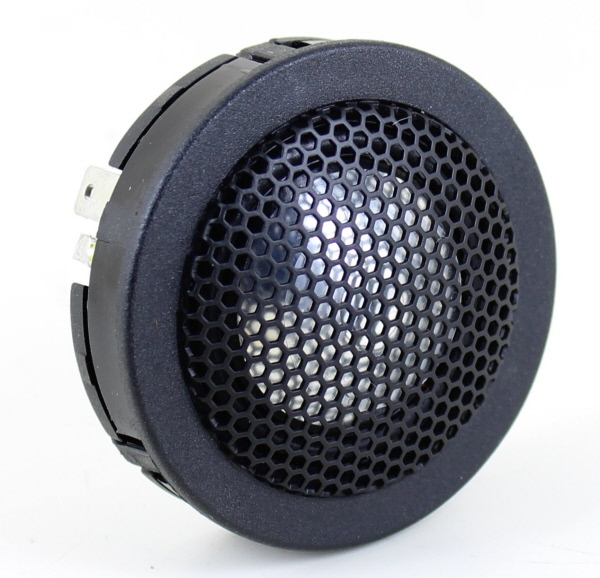

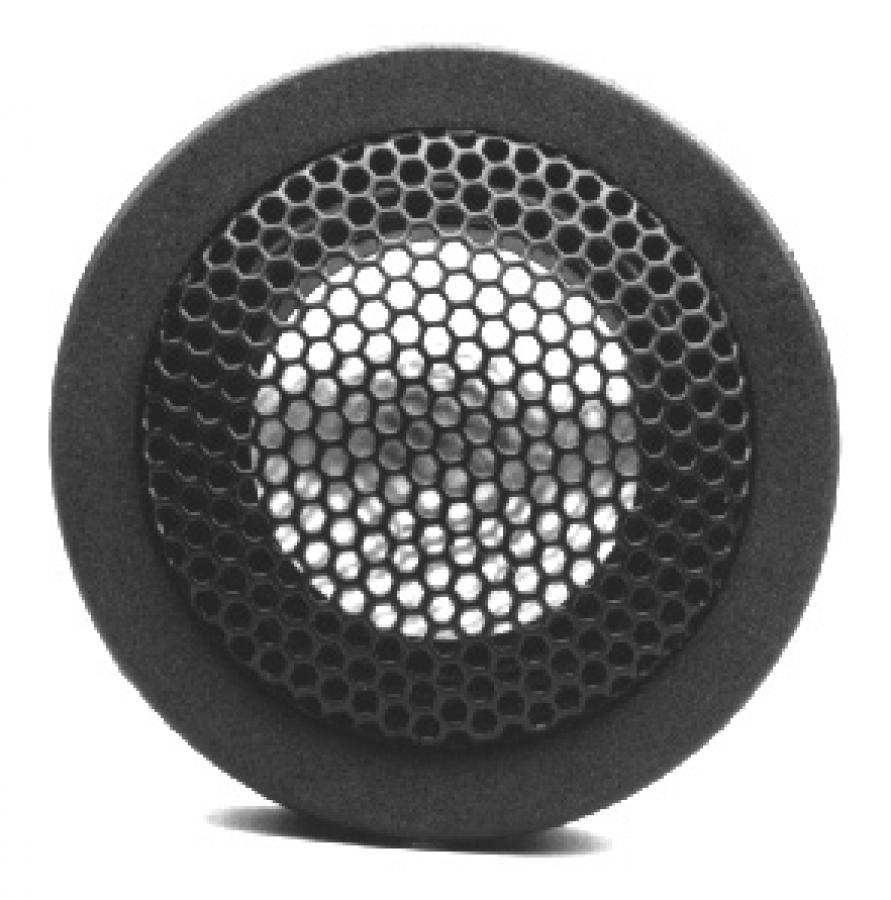

LPG 26NA Aluminum Dome Car Tweeter

LPG 1" Aluminum Dome Tweeter

Spec Sheet PDF

Greeat for Home or Autosound/ Car Audio

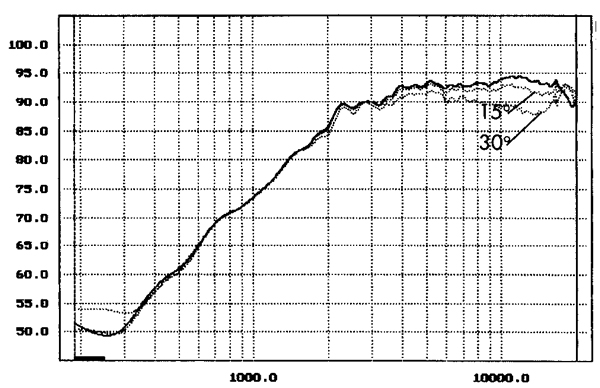

• Compact high efficiency dome tweeters with smooth and extended frequency response.
• Variable mounting to fit your applications.
• Ferrofluid cooled for higher power handling.
• Can be used in LPG wedge or flush mount.
• Use QC205R & QC110B if not soldering.

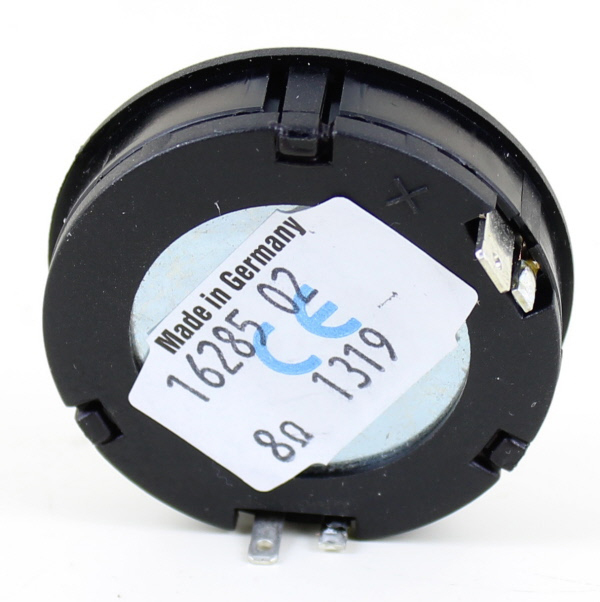

• Made in Germany

Technical Data

Nominal Impedance 8ohm

DC Resistance Rdc 6.8ohm

Resonant Frequency fr 1850 Hz

Rated Power 80 W

SPL 1W/1m 92 db

Total Moving Mass MMS 0.22 g

Effective Piston Area SD 6.8 cm2

Voice Coil Diameter 25 mm

Voice Coil Former Nomex

Voice Coil Length 1.5 mm

Voice Coil Layers 2

Flux Density B 1.35 Tesla

Force Factor BL 2.4 Tm

Gap Height 2 mm

Magnet Diameter 32 mm

Magnet Height 8 mm

Magnet Weight 0.05 kg

Mass of Speaker 0.07 kg

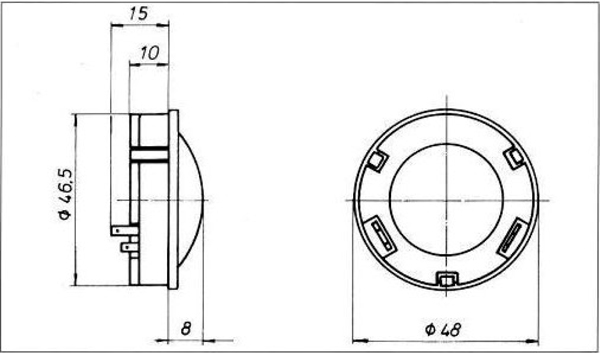

Flange diameter 48 mm

Cutout hole diameter 46 mm

Depth 10 mm
