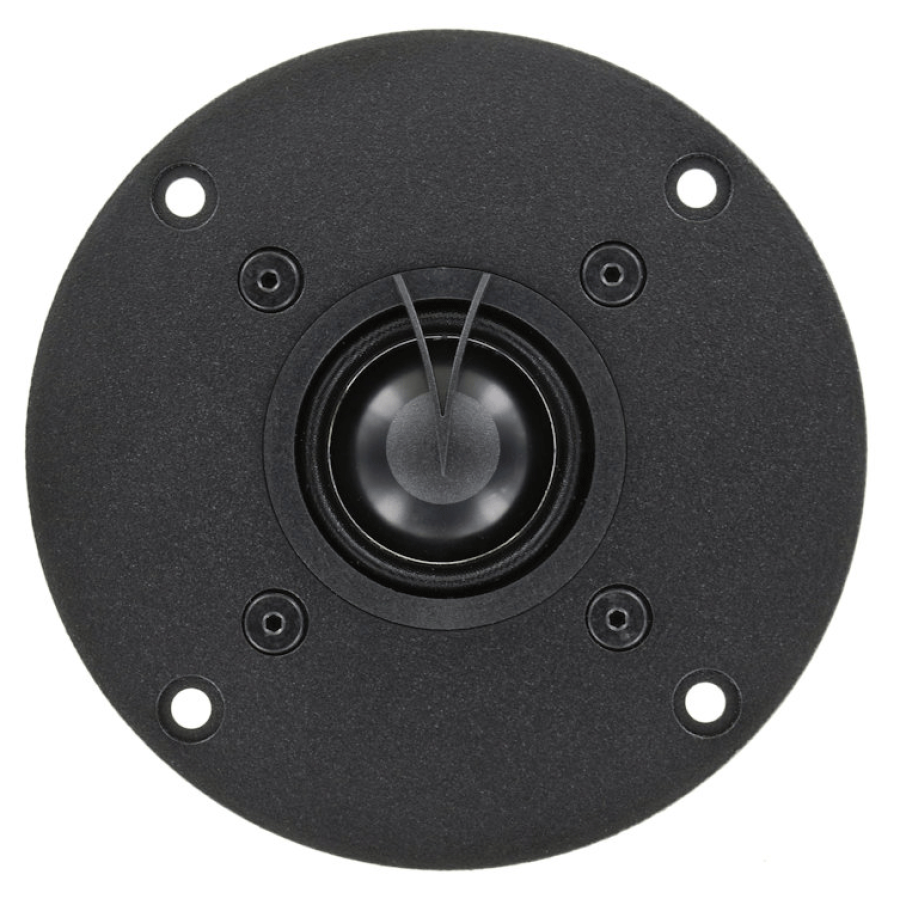

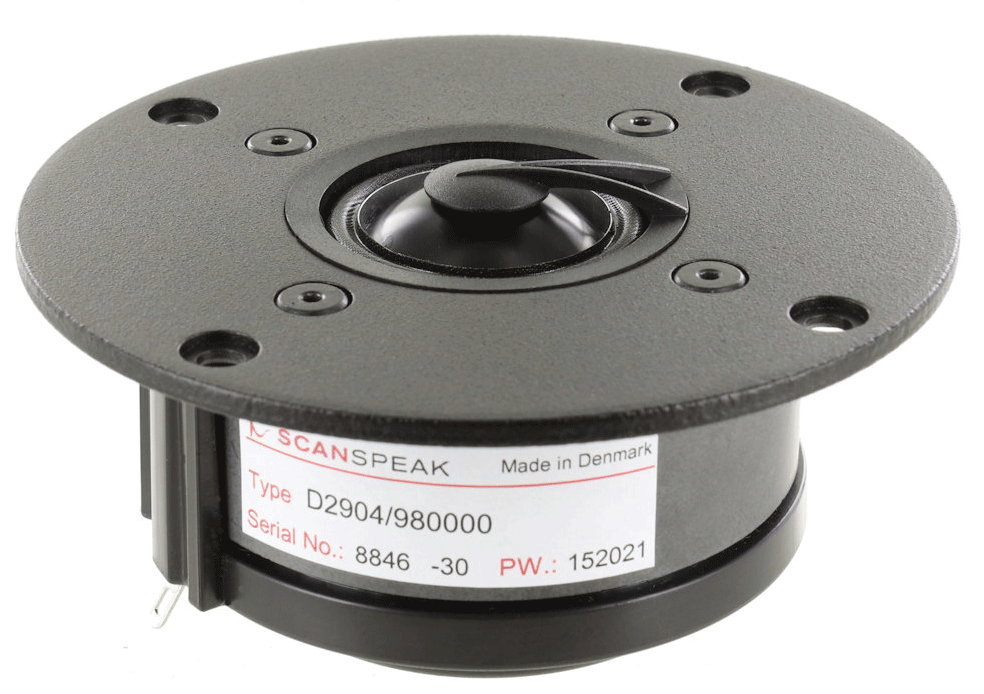

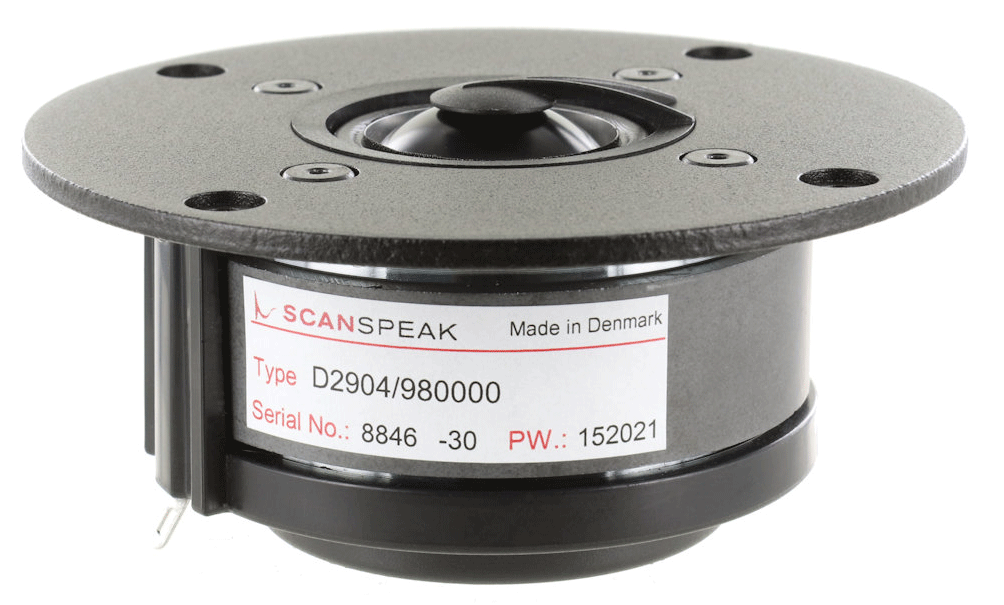

ScanSpeak Classic D2904/9800 1" Tweeter Aluminum Dome

ScanSpeak Classic D2904/9800 1" Tweeter Aluminum Dome- 104mm- 4 ohm

Spec Sheet PDF



• 1" Aluminium Dome Diaphragm
• Patented Symmetrical Drive (SD) motor
• Wave Guide
• Low Resonance Rear Chamber
• Black Painted Alu Face Plate

The Scan-speak D2904/9800 is a high-end 1" aluminum dome tweeter. The magnet system uses the Symmetric Drive technology that almost eliminates electrical phase shift. The specially designed chamber reduces air noise and compression. The geometry of the dome causes the "break-up" to appear beyond the audible range. A specially designed diffusor is used to equalize the response in the upper octave. The tweeter has a very clear and open sound.

The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over three decades. And still among the best tweeters available. The D2905/9000 tweeter kick-started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and -9800. Despite their many years on the market still used in many top high-end speakers around the world.
