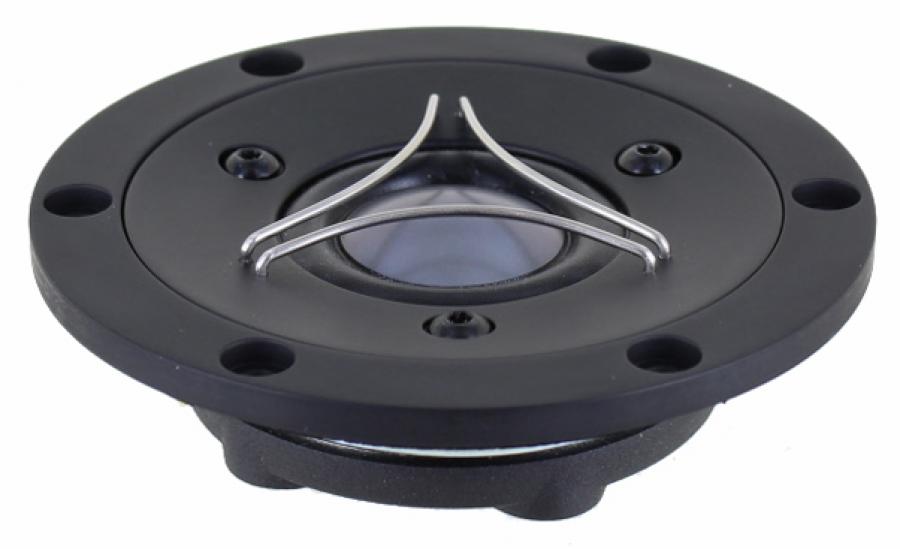

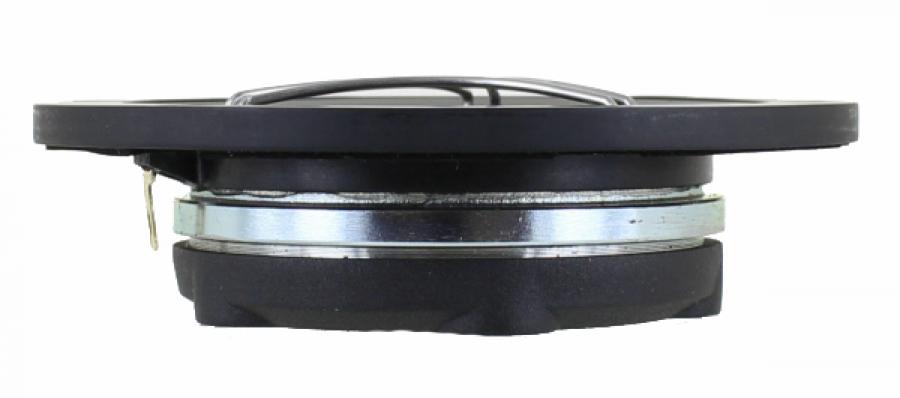

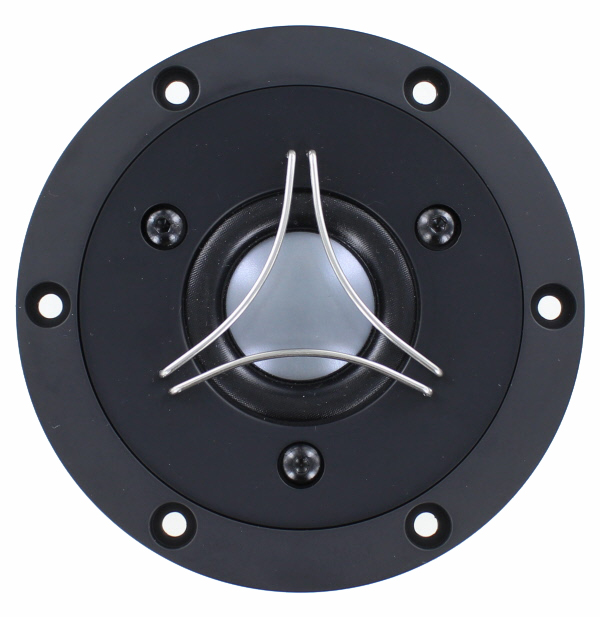

Satori TW29BN-B-8 Beryllium Dome Tweeter

Price: $385.00


Manufacturer: SB Acoustics
Product ID : TW29BN-B-8
Weight: 1.50 lbs
Manufacturer: SB Acoustics
E-mail to a friend


Satori TW29BN-B-8 Beryllium Dome Tweeter with Neodymium Magnet System -Black Face Plate

Link to TW29BN-B-8 pdf download

The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  While all dome materials have a different tonal and spatial presentation, Beryllium makes a real positive difference, providing an experience unlike all other dome materials.

Special Features:
  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range

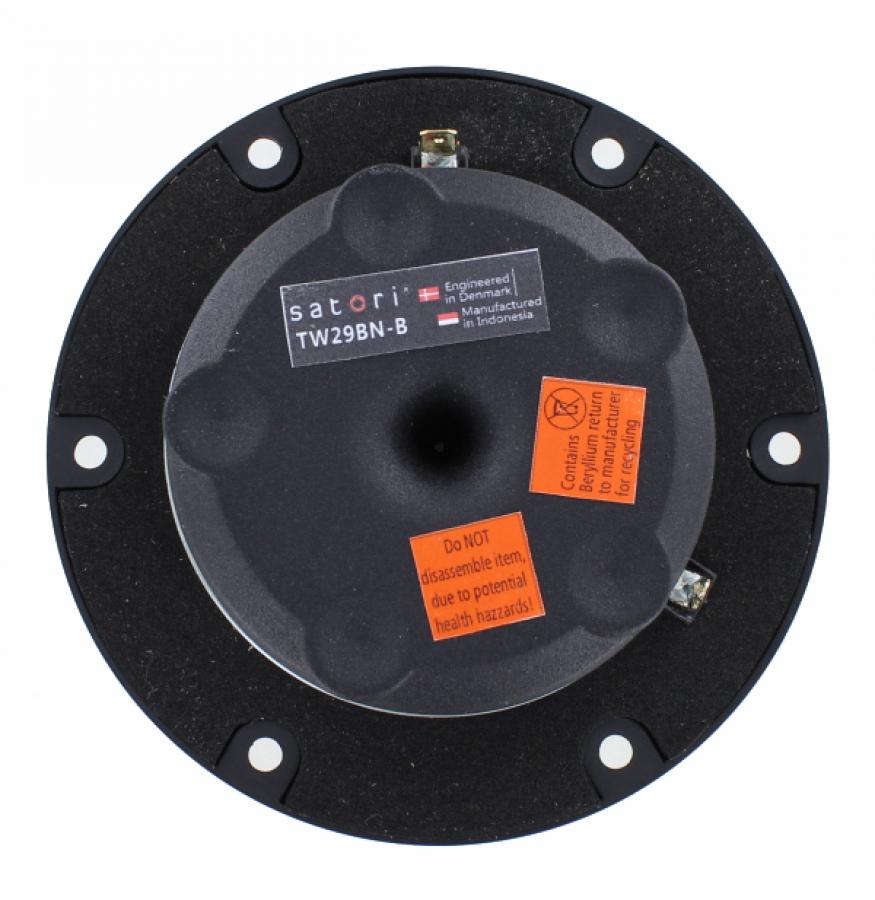

*** Warning ***
Beryllium is a toxic material.  Should you ever break the dome, do not touch the pieces with your bare hand.
