Accuton Cell C30-6-358 Ceramic Dome Tweeter

Accuton Cell C30-6-358 Ceramic Dome Tweeter- Ultra Low Distortion

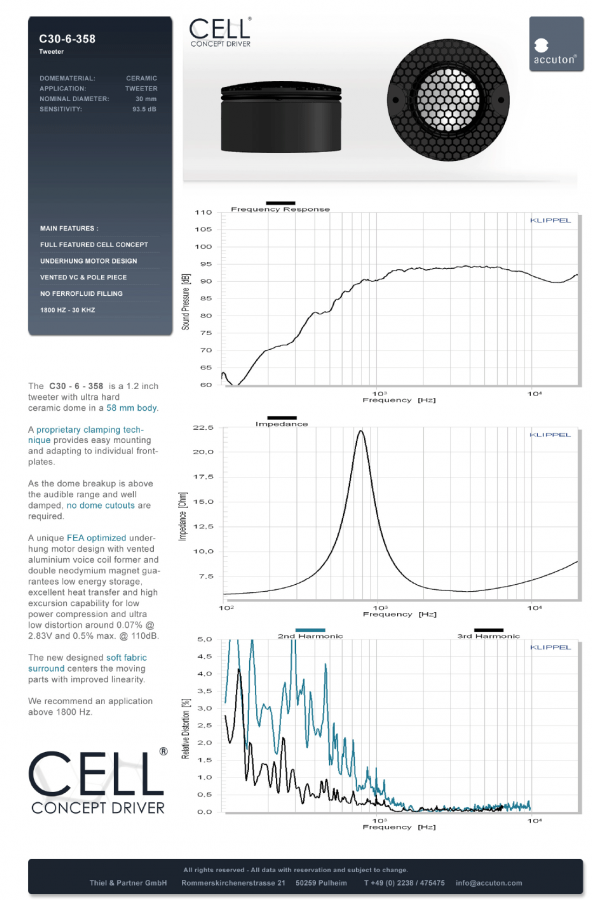

Spec Sheet PDF

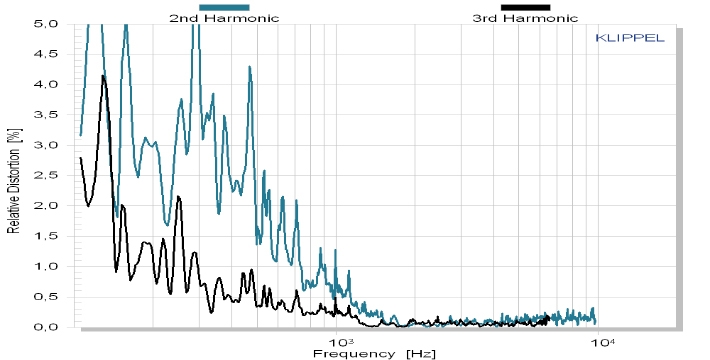

The C30-6-358 is a 1.2 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented aluminium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion around 0.07% @ 2.83V and 0.5% max. @ 110dB. The new designed soft fabric surround centers the moving parts with improved linearity. We recommend an application above 1800 Hz. Super-high fidelity 1.2" dome version, 58mm flange CELL concept tweeter featuring perfect signal settle and piston behavior of the dome even close to the dome resonance; acoustically decoupled clamping mechanism providing fast and easy assembly into a circular hole; Very low distortion -in the magnitude of electronic devices- even at high power levels; Steady decay of higher order harmonics; high bandwidth.

• FULL FEATURED CELL CONCEPT
• UNDERHUNG MOTOR DESIGN
• VENTED VC & POLE PIECE
• NO FERROFLUID FILLING
• 1800 Hz - 30 KHz

Test Bench Article

Square Cell Adapter: proprietary clamping technique provides easy mounting and adapting to individual frontplates

.
