Satori MT19CP-8 Coaxial with Papyrus Cone- 8 ohm

Satori MT19CP-8 Coaxial with Papyrus Cone- 187mm- 8 ohm

Spec Sheet PDF

Coaxial transducers are closer to a true point source compared to separate woofer/tweeter transducer combinations. This brings some advantages with regards to physical time alignment so that the sound source stays time coherent at any listening angle. The new Coaxial Satori MT19CP-8 is our take on a high end Coaxial transducer that is equally suited to midrange/tweeter reproduction in a larger multi-way speaker system or as a midwoofer/tweeter for a smaller monitor style speaker.

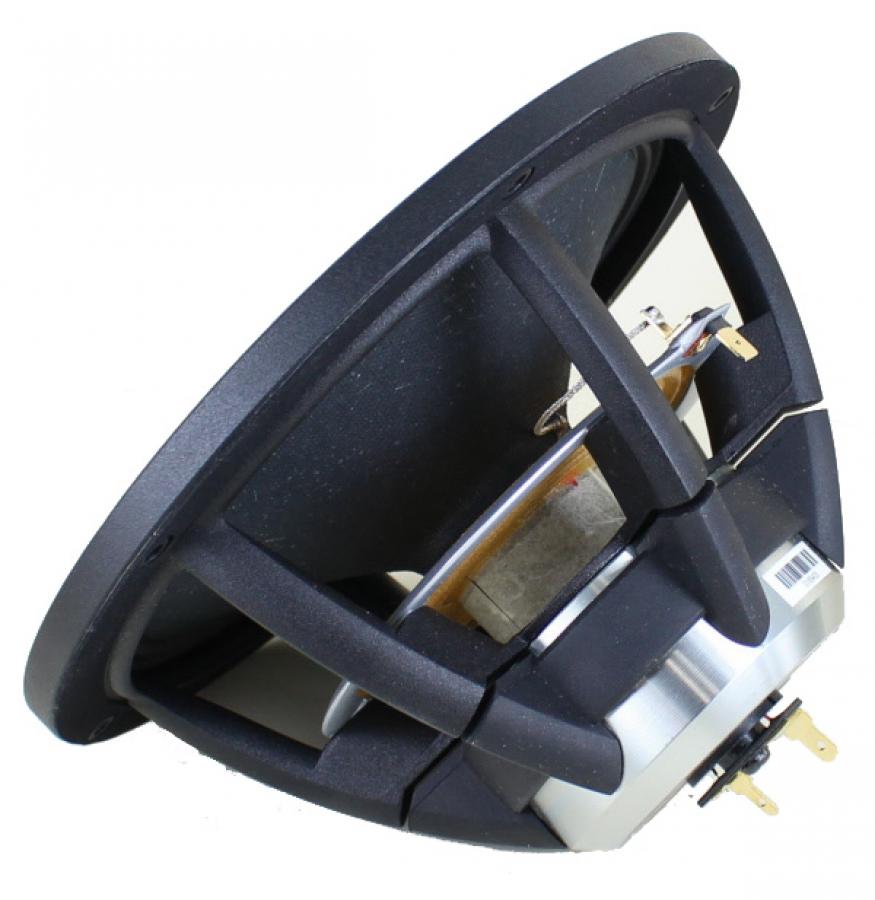

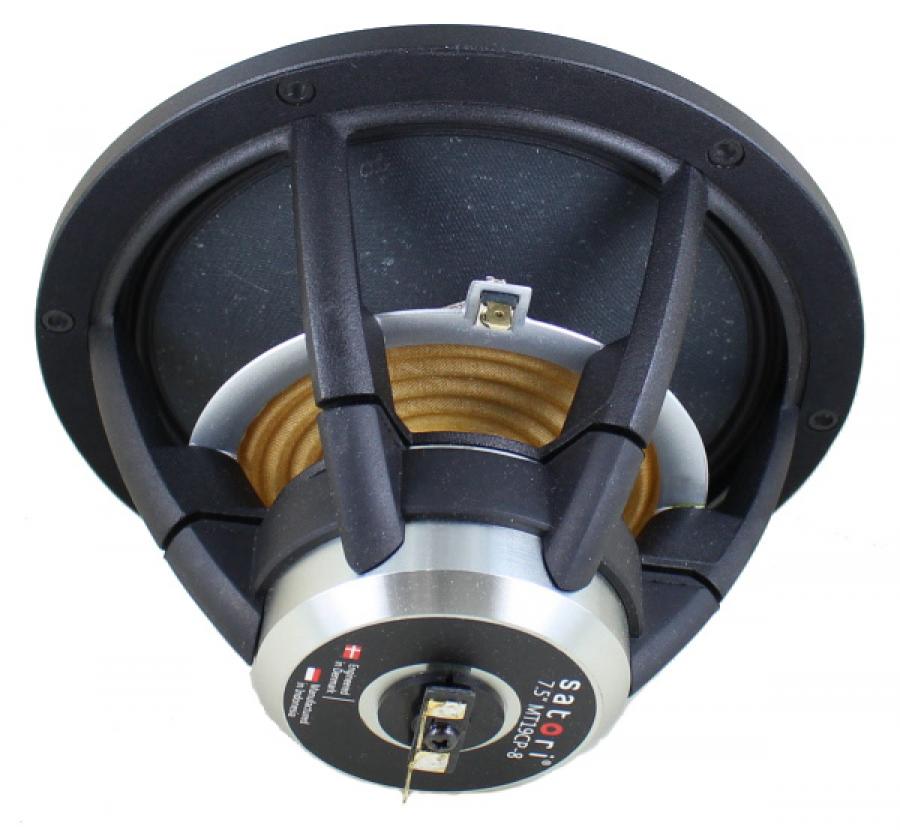

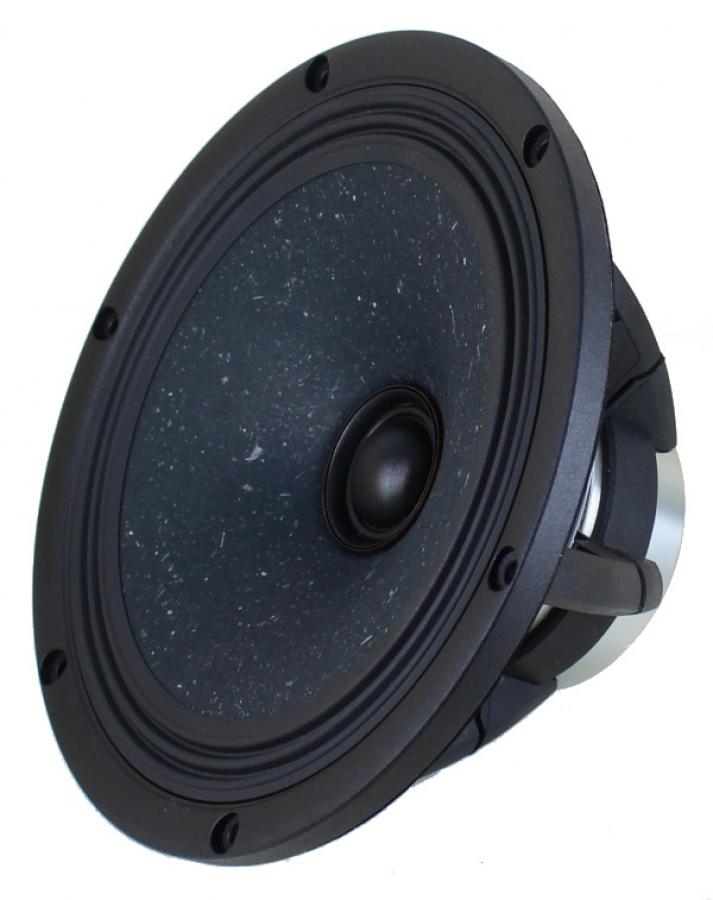

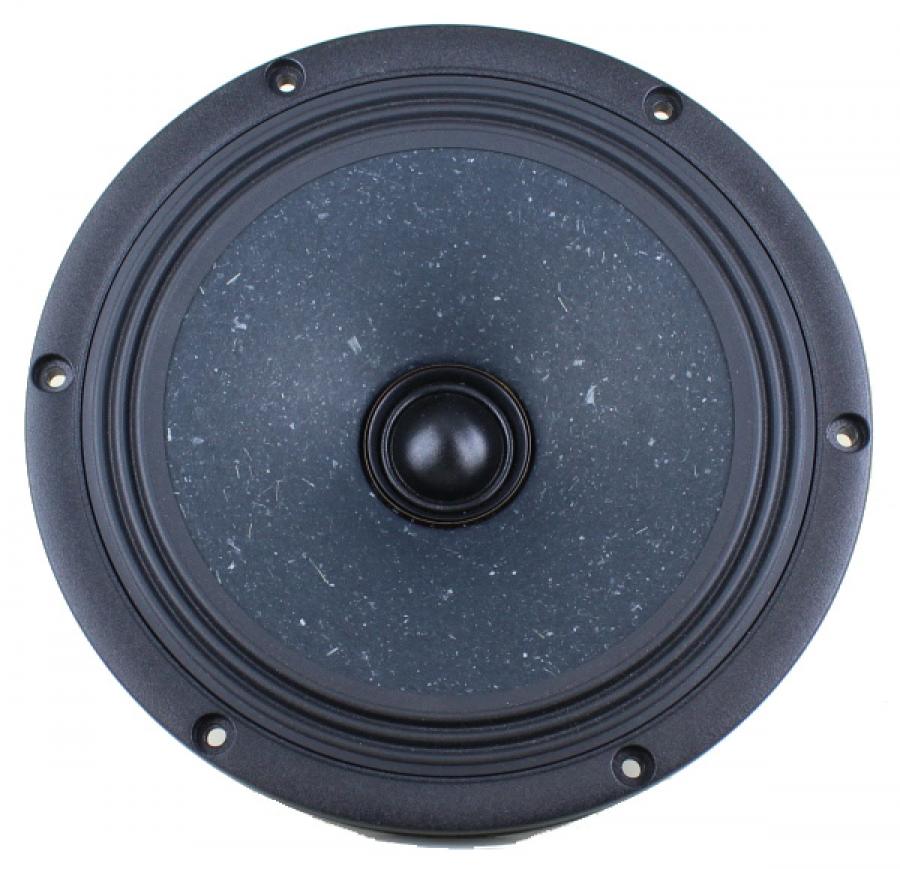

The new Satori coaxial driver SATORI MT19CP-8 is finally available! Please see new crossover design below. A very versatile coaxial 7.5" driver featuring a 38.5mm voice coil, Papyrus mixture paper cone, cloth surround, neodymium motor, and aluminium chassis. Satori is a Buddhist term for enlightenment that means "understanding" or "flash of awareness." Satori drivers are designed for subtlety and realism. Adding the MT19CP-8 to the family of high end Satori drivers is an exciting chapter for SB Acoustics. The Satori line of products are the flagship products within SB Acoustics and the MT19CP-8 is the newest addition to the Satori family and is the first Coaxial driver to appear in the Satori line which currently consists of a wide range of Midwoofer, Midrange and Tweeter transducers.

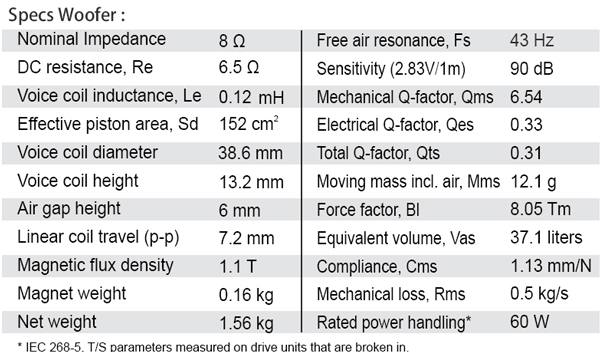

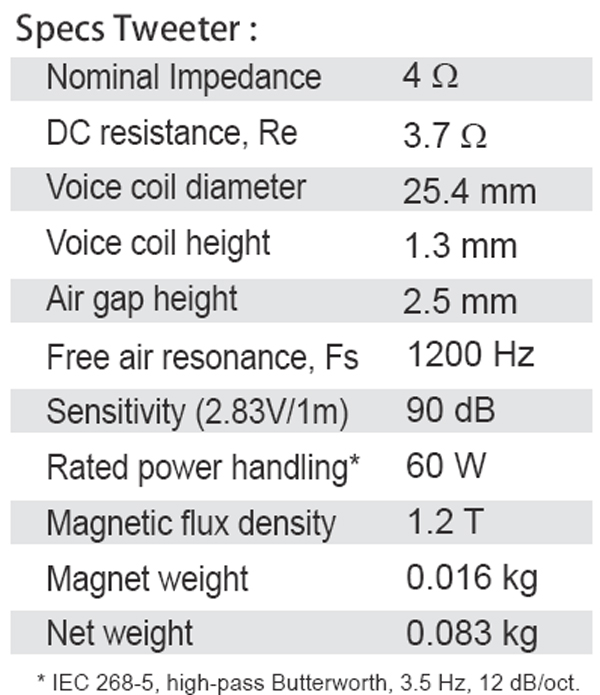

MT19CP-8 Technical Notes

MT19CP-8 Crossover PDF

This crossover is optimized for in-wall/in-ceiling applications and does not account for edge diffraction (baffle step). Furthermore, this design does not include a high-pass filter for the woofer. It is highly recommended to cross over this driver to a subwoofer at 60-80 Hz. Madisound can quote this assembled crossover for you with your choice of component brands.

• Vented aerodynamic cast aluminium chassis for optimum strength and low compression
• Proprietary cone material with Egyptian Papyrus fibres made in house
• Powerful low distortion neodymium motor system with extended copper sleeve
• Soft rubber surround with triple roll low profile for minimum high frequency diffraction and optimum transient response
• Light weight CCAW voice coil on fibres glass former
• Vented pole piece for reduced compression
• Long life silver lead wires
• 26mm high performance soft dome tweeter with neodymium motor, copper cap and CCAW voice coil

Madisound suggests some sample enclosures:

• 0.2 cf3 sealed and stuffed chamber, F3 about 125 Hz
• 0.5 cf3 vented Fb about 49 Hz, F3 about 67 Hz 2" x 6" flared vent
• 0.75 cf3 vented Fb about 45 Hz, F3 about 59 Hz 2" x 4.75" flared vent
• 1.0 cf3 vented Fb about 41 Hz, F3 about 56 Hz 2" x 4" flared vent
