miniDSP 2x4 HD USB DAC and Digital Signal Processor
Manufacturer: miniDSP
Product ID: miniDSP2x4HD
Price:
$299.00
Product is out of stock
miniDSP 2x4 HD USB DAC + Digital Signal Processor
Now includes free redemption code for plug-in, a $10 value!
Introducing the long-awaited “reboot” of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!
The upgraded on-board 400 MHz Analog Devices SHARC processor also enables substantial processing upgrades previously available only on more expensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy to use interface software.
I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios - anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.
The Linkwitz Lab LXmini Speaker Kit utilizes this impressive device!
Technical Specifications
- ADSP12489 400MHz Sharc DSP floating point engine
- XMOS Xcore200 for USB control and bidirectional audio streaming
- 24 bit ADC/DAC resolution

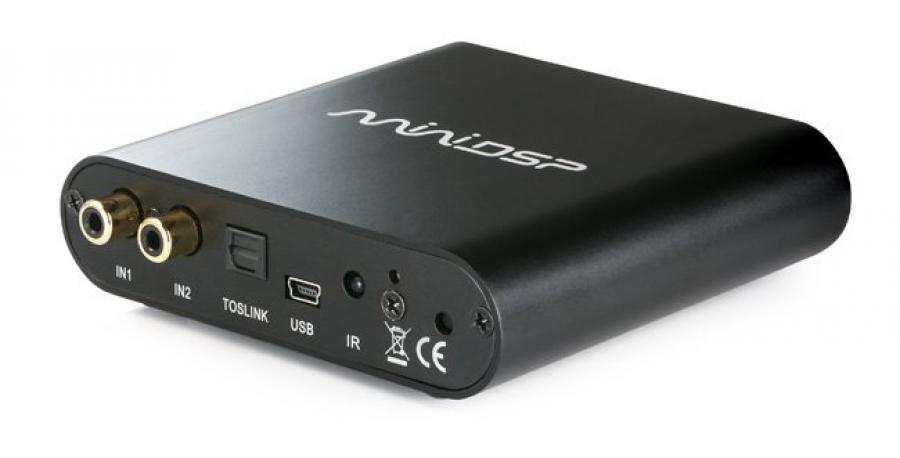

- Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
- Toslink digital input

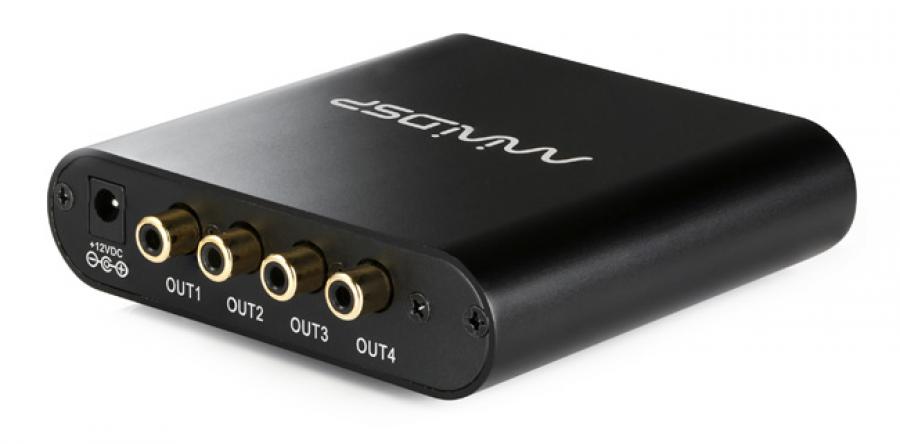

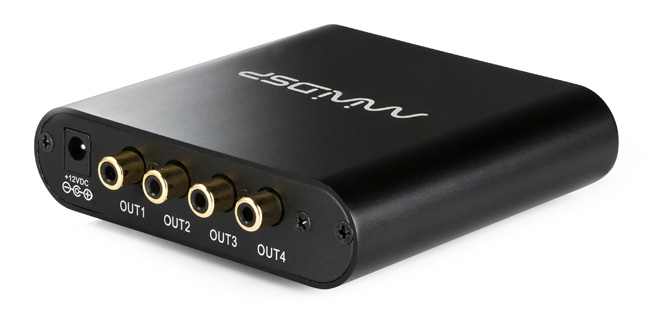

- Unbalanced outputs: Max 2Vrms
- USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
- 4 preset configuration, recallable via IR, Software
- Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
- Device does not required a PC once configured
- External single 12V supply
Product Downloads
miniDSP 2x4 HD Datasheet
miniDSP 2x4 HD User Manual
Each miniDSP 2x4 HD Purchase Includes:
1 x MiniDSP 2x4 HD, fully assembled and ready to use
1 x 12V power supply with UK/EU/US/AU plugs
1 x Shielded USB cable
1 x miniDSP Plug-in code ~ a $10 value
Your code is shipped with the miniDSP unit
Redeem @ miniDSP.com (create a user account @ www.minidsp.com> log in > go to www.minidsp.com/coupon > select appropriate plug-in > enter code & click "Validate" > download to your computer from your account via "User Downloads at top right of screen)
miniDSP 2x4 HD1 plug-in
Application Notes to get started
2way crossover project with the 2x4 HD
Subwoofer integration with the 2x4 HD
AutoEQ with REW
System Flowchart
*Now available* miniDSP IR Remote (via pulldown menu)
Now includes free redemption code for plug-in, a $10 value!
Introducing the long-awaited “reboot” of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!
The upgraded on-board 400 MHz Analog Devices SHARC processor also enables substantial processing upgrades previously available only on more expensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy to use interface software.
I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios - anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.
The Linkwitz Lab LXmini Speaker Kit utilizes this impressive device!
Technical Specifications
- ADSP12489 400MHz Sharc DSP floating point engine
- XMOS Xcore200 for USB control and bidirectional audio streaming
- 24 bit ADC/DAC resolution
- Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
- Toslink digital input
- Unbalanced outputs: Max 2Vrms
- USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
- 4 preset configuration, recallable via IR, Software
- Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
- Device does not required a PC once configured
- External single 12V supply
Product Downloads
miniDSP 2x4 HD Datasheet
miniDSP 2x4 HD User Manual
| Digital Signal Processor Engine | Analog Devices Fixed point DSP SHARC ADSP21489 |
|
Internal Processing resolution |
32 bit / 96kHz with 2x4HD1 plugin |
|
Input/Ouput Configuration |
2 in / 4 out |
|
Audio Input Connectivity |
Unbalanced analog input, RCA terminated |
|
Audio Output Connectivity |
Unbalanced output, RCA terminated |
|
Input / Output Max Levels |
IN: 2Vrms / 4Vrms (jumper-selectable) |
| Input Impendance |
10 kΩ |
| Output Impedance | 560 Ω |
| Calibration Software | miniDSP 2x4 HD1 plug-in |
| Filtering Technology | FIR + IIR |
| DSP Presets | Up to 4 presets |
| Dimensions | 27 x 119 x 107 mm |
| Power | 12 VDC single supply 2.1 mm round plug 2.5W |
| Impulse Response Correction | ✘ |
| Infrared Remote Learning | ✔ |
| Win/Mac Compatible | ✔ |
| UMIK-1 Included | ✘ |
| Bass Management | ✘ |
| Room EQ Wizard Support | ✔ |
Each miniDSP 2x4 HD Purchase Includes:
1 x MiniDSP 2x4 HD, fully assembled and ready to use
1 x 12V power supply with UK/EU/US/AU plugs
1 x Shielded USB cable
1 x miniDSP Plug-in code ~ a $10 value
Your code is shipped with the miniDSP unit
Redeem @ miniDSP.com (create a user account @ www.minidsp.com> log in > go to www.minidsp.com/coupon > select appropriate plug-in > enter code & click "Validate" > download to your computer from your account via "User Downloads at top right of screen)
miniDSP 2x4 HD1 plug-in
Application Notes to get started
2way crossover project with the 2x4 HD
Subwoofer integration with the 2x4 HD
AutoEQ with REW
System Flowchart
*Now available* miniDSP IR Remote (via pulldown menu)
This remote is preprogrammed for miniDSP products including. Current support include the following platforms.
- 2x4HD/nanoSHARC
- miniSHARC kit
- DDRC88/DDRC22 series/DDRC-24
- OpenDRC series (all series)
