Audax 13LB25AL 5" Full Range Paper Cone with Phase Plug

Price: $98.95

Purchase

Product is out of stock
Manufacturer: Audax
Product ID : 13LB25AL
Weight: 4.50 lbs
Manufacturer: Audax
E-mail to a friend | Add To Wish List

Description

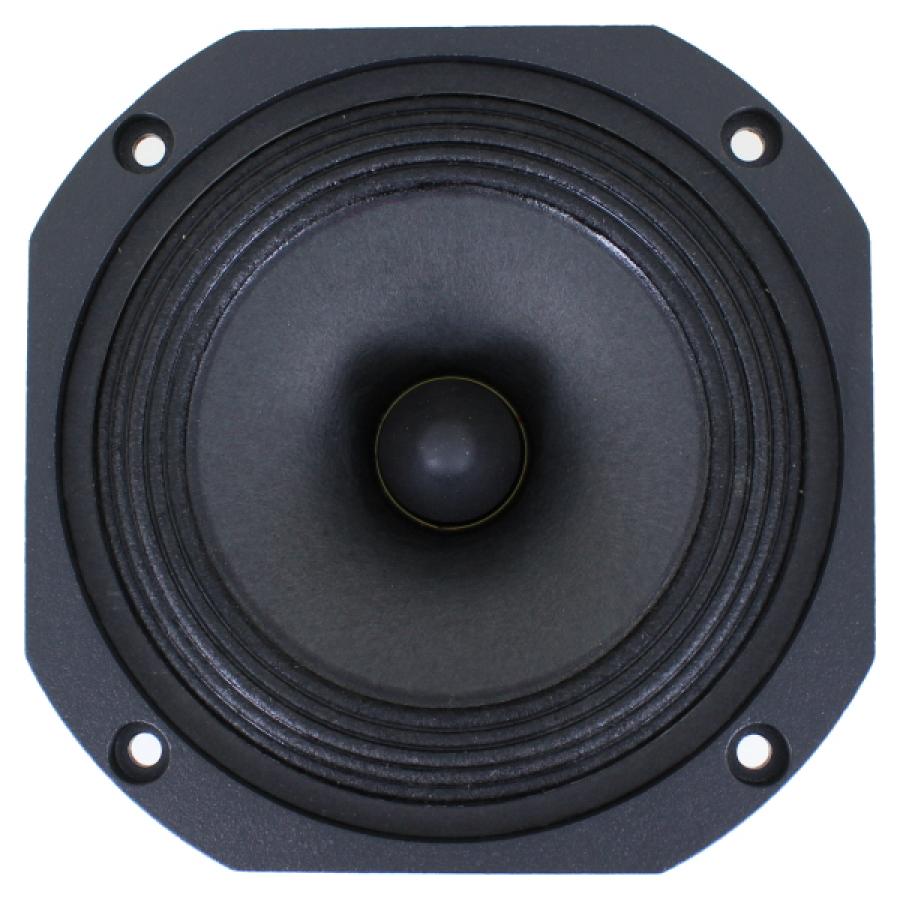

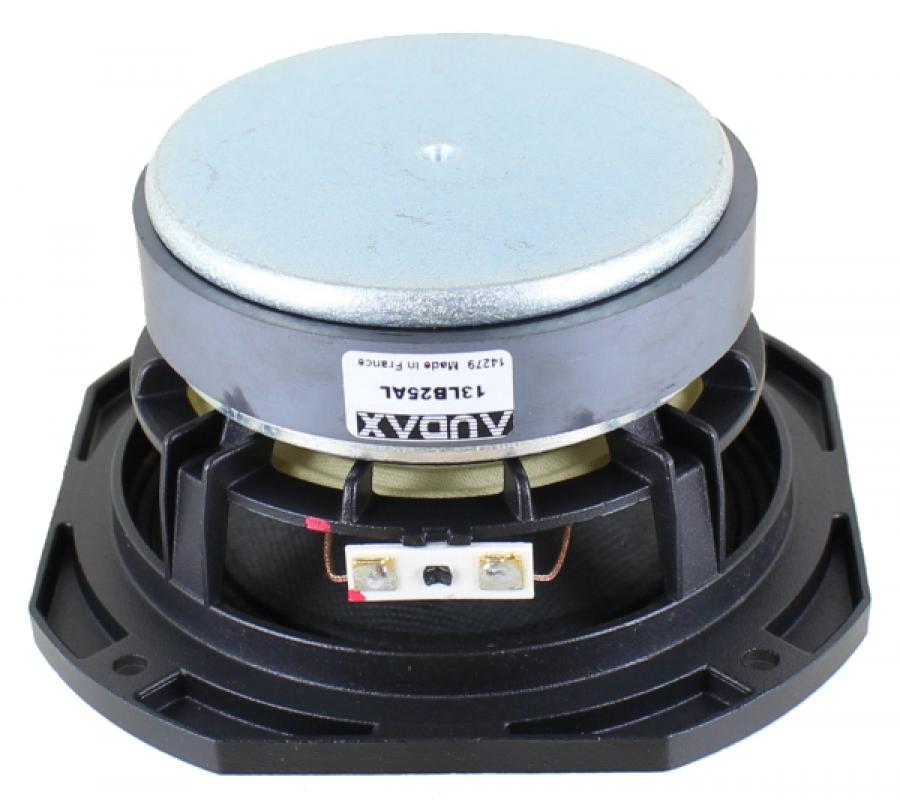

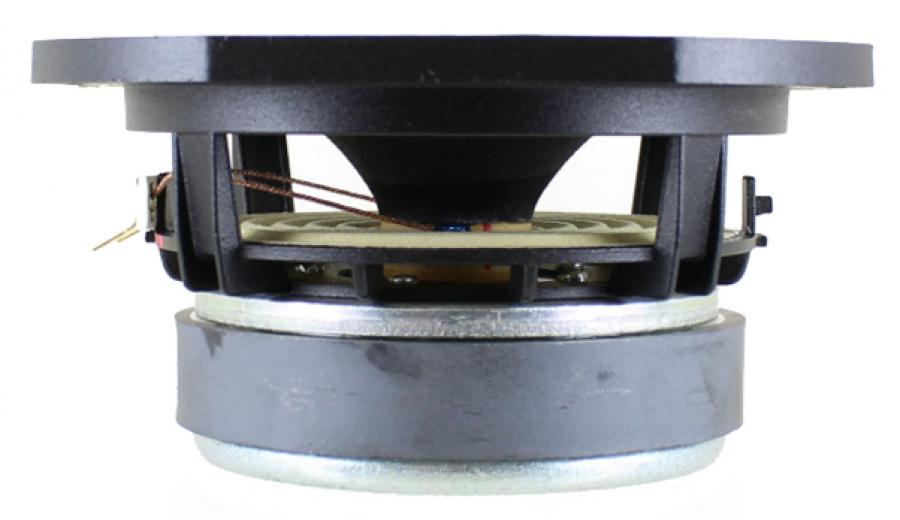

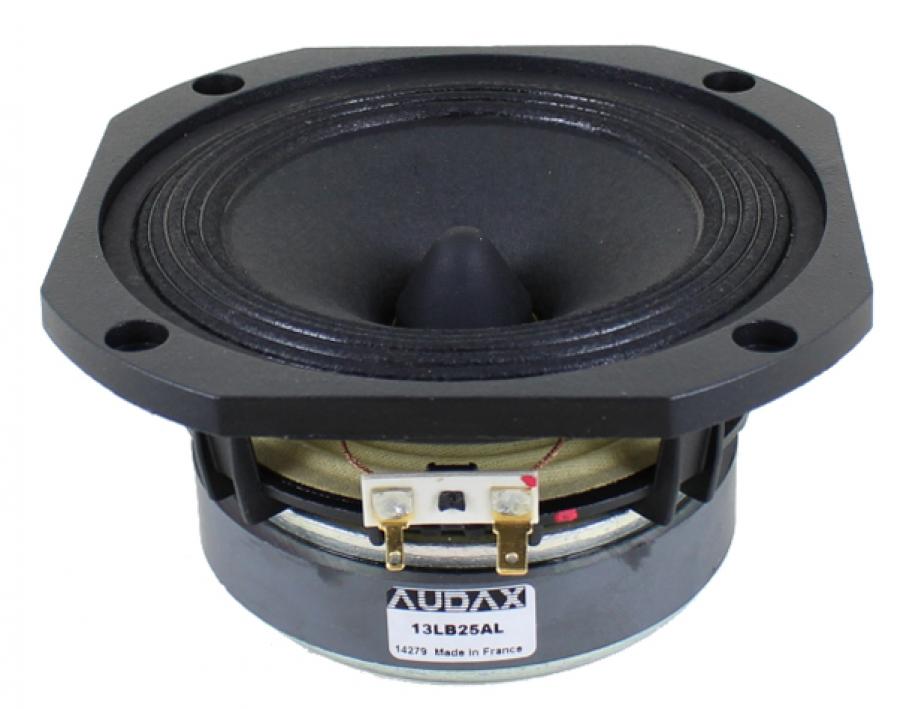

Audax 13LB25AL 5" Full Range Paper Cone with Phase Plug

This classic Audax full range driver has a very linear response to 15kHz. The one piece cone and surround has a lively sound with high sensitivity.
  • One piece paper cone and corrugated surround
  • Rubber phase plug
  • Ventilated raised nomex spider
  • Copper Clad Aluminum voice coil wire CCAW
  • Zomak die cast chassis
  • High 96 dB sensitivity
  • 8 ohm nominal impedance
  • Made in France
Possible box alignments:
  • Sealed box of 0.075 to 0.15 cubic feet.  3dB down at 260Hz and 6dB down at 175Hz
  • Vented box of 0.075 to 0.1 cubic feet.  1.5" diameter by 3.25" length port.  3dB down at 170Hz, 6dB down at 120Hz.
Manufacturer Datasheet PDF









About Audax
POLYDAX [AUDAX] from France is one of Europe's largest home, car & pro speaker manufacturers. Boston, JBL, Klipsch, Polk, PSB, Snell, Sony & many others use POLYDAX. The society AAC (stands for "Applications Acoustiques de Composites") is now the owner of AUDAX and took over the production of some designs.
