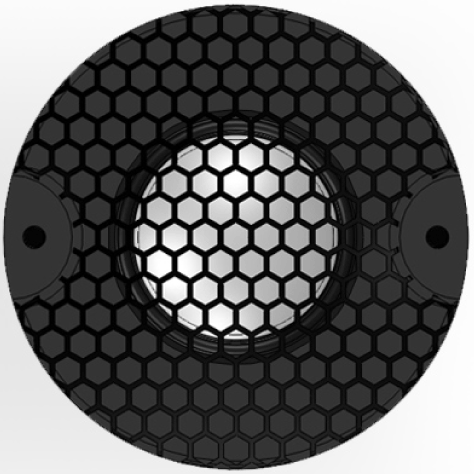

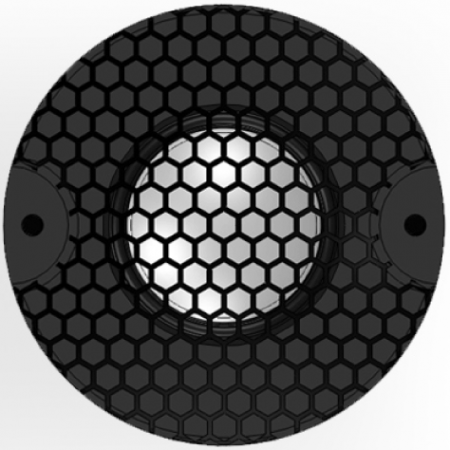

Accuton Cell C25-6-158 Ceramic Dome Tweeter

Manufacturer: Accuton

Be the first to review this product

Product ID: C25-6-158

$549.00

Add to wish list E-mail to a friend

Overview

Super-high fidelity 1" dome, 58mm flange CELL concept tweeter featuring perfect signal settle and piston behavior of the dome even close to the dome resonance; acoustically decoupled clamping mechanism providing fast and easy assembly into a circular hole; Very low distortion -in the magnitude of electronic devices- even at high power levels; Steady decay of higher order harmonics; high bandwidth

Accuton Cell C25-6-158 Ceramic Dome Tweeter

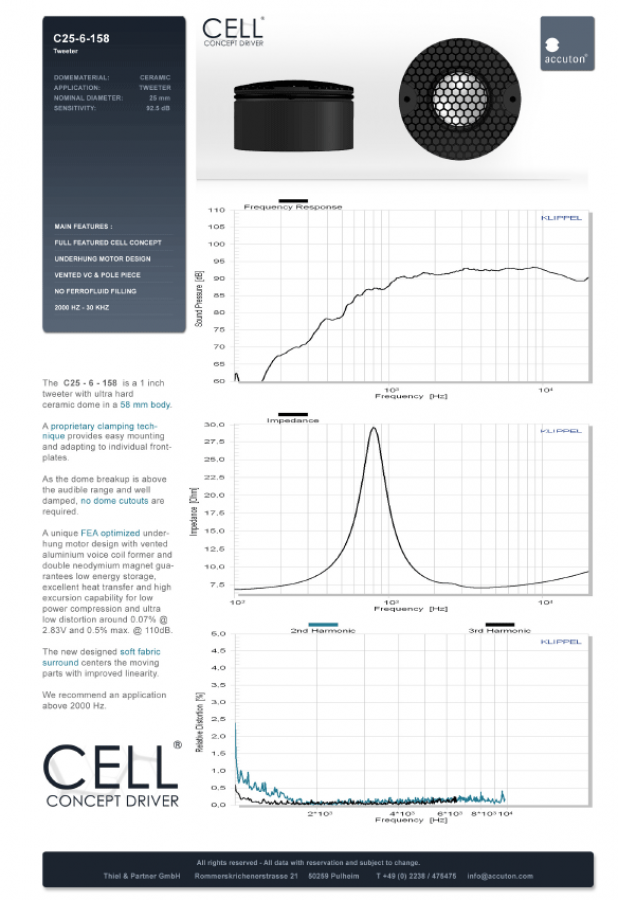

Spec Sheet PDF

FULL FEATURED CELL CONCEPT
UNDERHUNG MOTOR DESIGN
VENTED VC & POLE PIECE
NO FERROFLUID FILLING

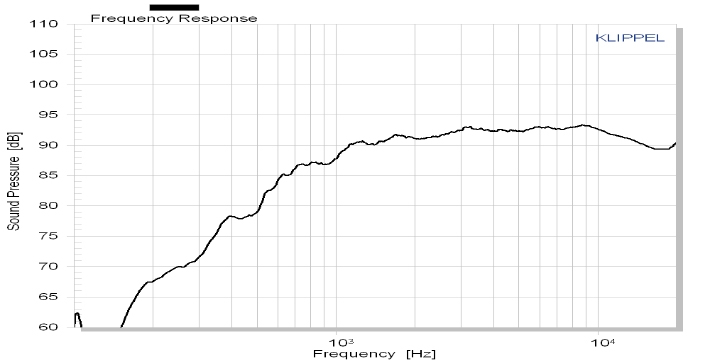

2000 Hz - 30 KHz

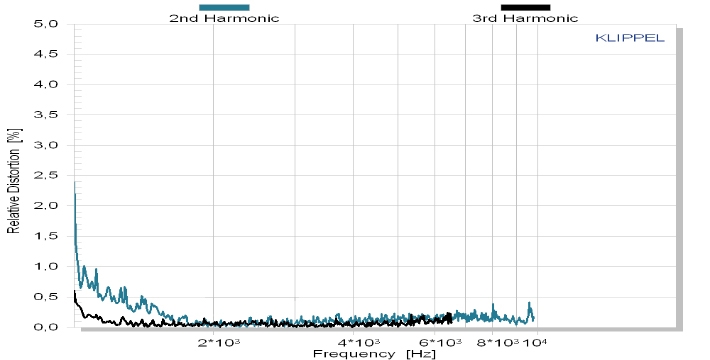

The C25 - 6 - 158 is a 1 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented aluminium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion around 0.07% @ 2.83V and 0.5% max. @ 110dB. The new designed soft fabric surround centers the moving parts with improved linearity. We recommend an application above 2000 Hz.
