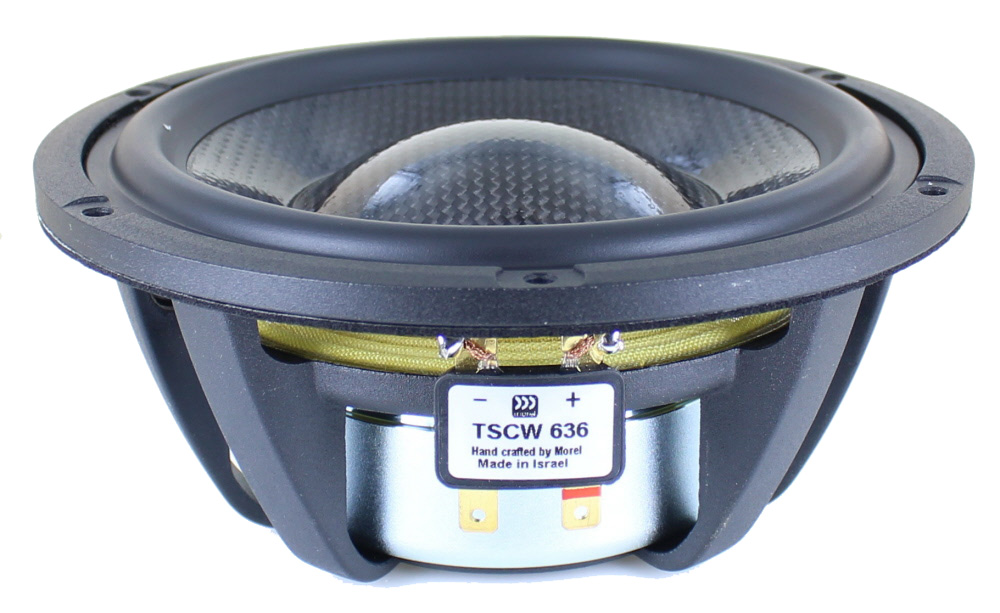

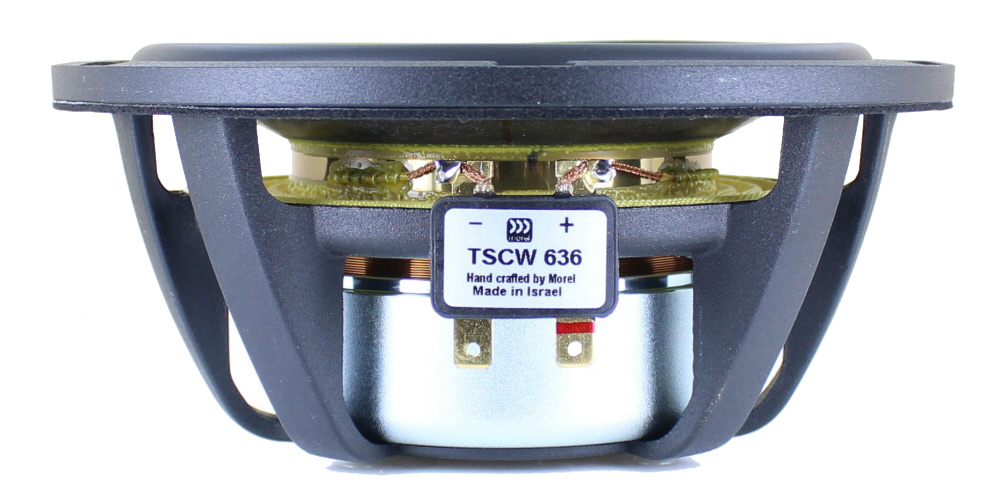

Morel TSCW636 6" Titanium Supreme Carbon-Fiber Woofer

Price: $372.00

Purchase

  • Buy 4 - 9 and get an additional 2.5 % off
  • Buy 10 - 100,000 and get an additional 10 % off
Manufacturer: Morel
Product ID : TSCW636
Weight: 3.30 lbs
Manufacturer: Morel
E-mail to a friend | Add To Wish List

Description

Morel TSCW636 Titanium Supreme Coppersleeve Woofer

Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.

Morel Titanium Supreme Series

The Titanium Supreme woofers from Morel are the latest jump forward in design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised, and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.

Uniflow­™ Aluminum Diecast Chassis

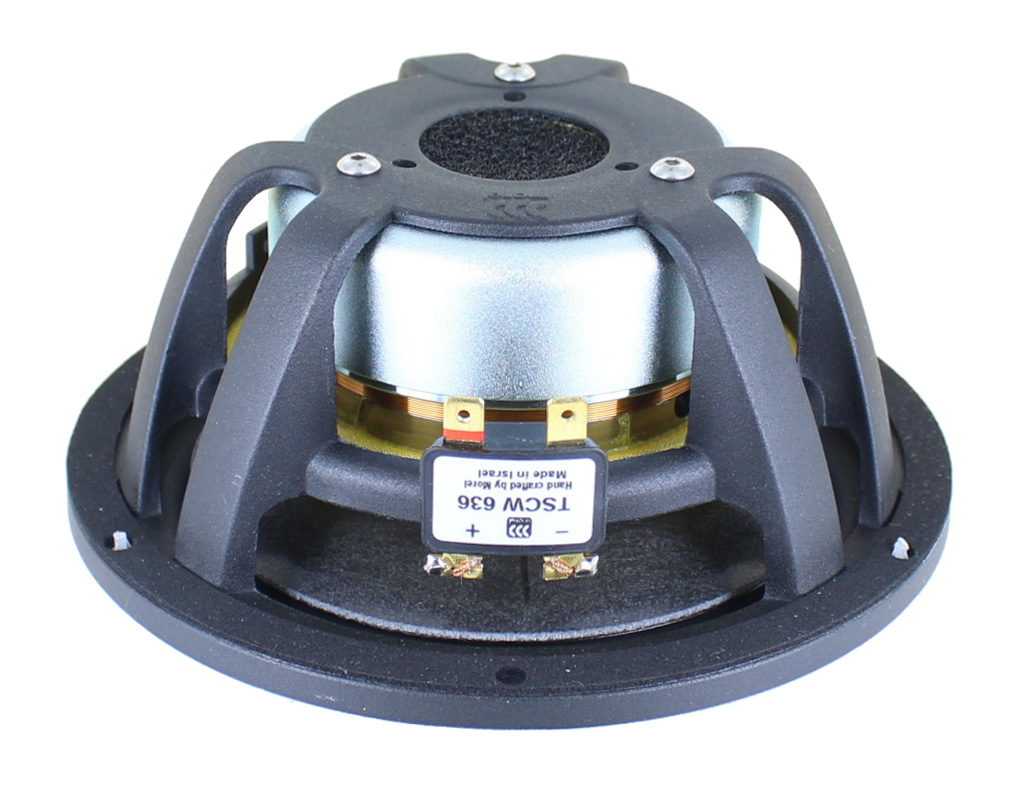

Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.

The 6" TSCW 636 midrange features a 6-ohm impedance and a unique, carbon fiber-Rohacell® composite cone offers flat frequency response from 43 Hz to 6,000 Hz on-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

Design Features:
•Carbon fiber/Rohacell/Carbon fibercomposite sandwich cone
•Uniflow™ Aluminum diecast chassis
•Hybrid™ Neodymium/Ferrite magnet
•3" Large Hexatech™ Aluminum voice coil
•Copper insulated center pole
•High power handling

Recommended Alignments:
Sealed 0.12 cubic foot (3 liters) F3= 94 Hz

Vented 0.27 cubic foot (7.5 liters)  F3= 54 Hz

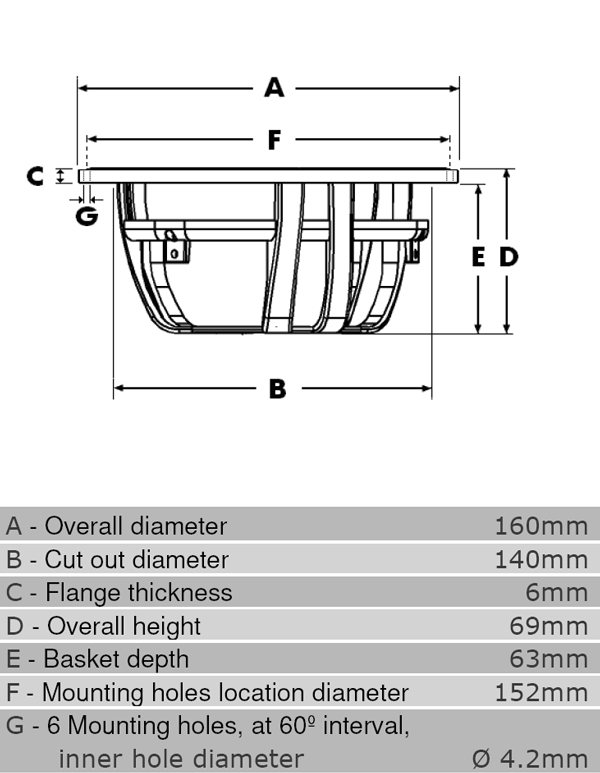

Mounting Information:
•Outside Diameter 6.30"
•Baffle Cutout Diameter 5.51"
•Depth 2.72"
•Six mounting holes

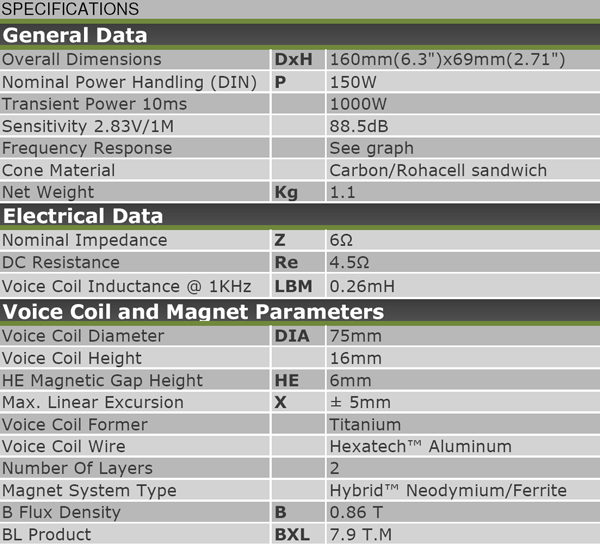

General Data:
•Nominal Power Handling (DIN) P 150W
•Transient Power 10ms 1000W
•Sensitivity 2.83V/1M 88.5dB

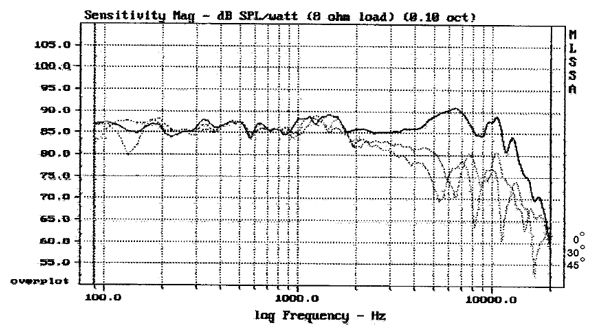

•Frequency Response See graph
•Cone Material Carbon/Rohacell sandwich
•Net Weight Kg 1.1

Electrical Data:
•Nominal Impedance Z 6Ω
•DC Resistance Re 4.5Ω
•Voice Coil Inductance @ 1KHz LBM 0.26mH

Voice Coil and Magnet Parameters:
•Voice Coil Diameter DIA 75mm
•Voice Coil Height 16mm HE
•Magnetic Gap Height HE 6mm
•Max. Linear Excursion X ± 5mm
•Voice Coil Former Titanium
•Voice Coil Wire Hexatech™ Aluminum
•Number Of Layers 2
•Magnet System Type Hybrid™ Neodymium/Ferrite
•B Flux Density B 0.86 T BL Product BXL 7.9 T.M

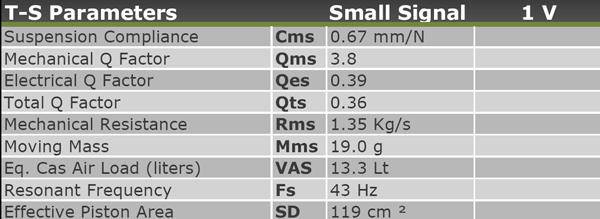

T-S Parameters (small signal, 1V):
•Suspension Compliance Cms 0.67 mm/N
• Mechanical Q Factor Qms 3.8
• Electrical Q Factor Qes 0.39
•Total Q Factor Qts 0.36
•Mechanical Resistance Rms 1.35 Kg/s
•Moving Mass Mms 19.0 g
•Eq. Cas Air Load (liters) VAS 13.3 Lt
•Resonant Frequency Fs 43 Hz
•Effective Piston Area SD 119 cm²
