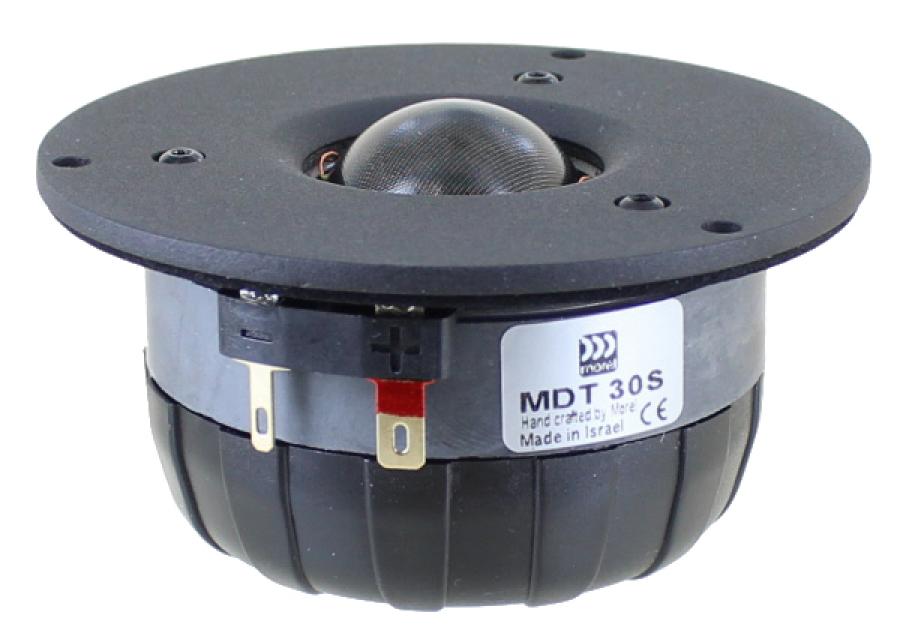

Morel MDT30S 1" Textile Dome Tweeter, Aluminum Face Plate, Rear chamber

Morel 1" textile dome tweeter with rear chamber
94mm diameter flange (3.7")
8 ohm

Spec sheet: Morel MDT30S Tweeter Hand coated dome

• Ferrofluid cooled
• Replaceable voice coils
• Aluminum face-plate
• Gold-plated terminals
• Rear chamber

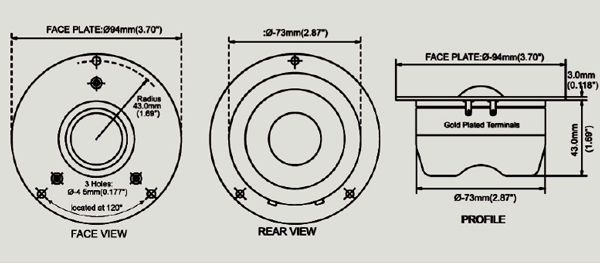

• Flange 94mm (3.7")
• Cut-out Ø 73mm (2.87")
• Depth 43mm (1.69")

Znom 8 ohm
Re 5.2 ohm
Le@1kHz 0.09 mH
fs 650 Hz
Mms 0.44 g
Cms - mm/N
Sd 6.0 cm2
BL 3.5 N/A
VC Ø 28 mm
Sensitivity 1W / 1m 90 dB
Nom. Power DIN 200 W
Net weight 0.56 kg

Use QC250R and QC110B if not soldering.
