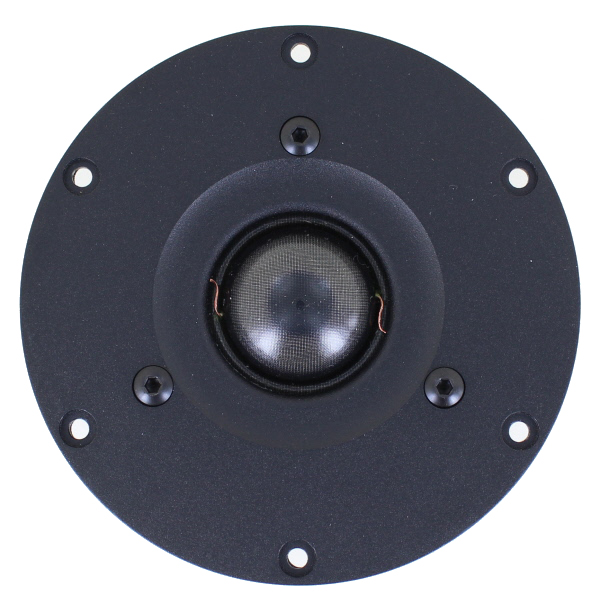

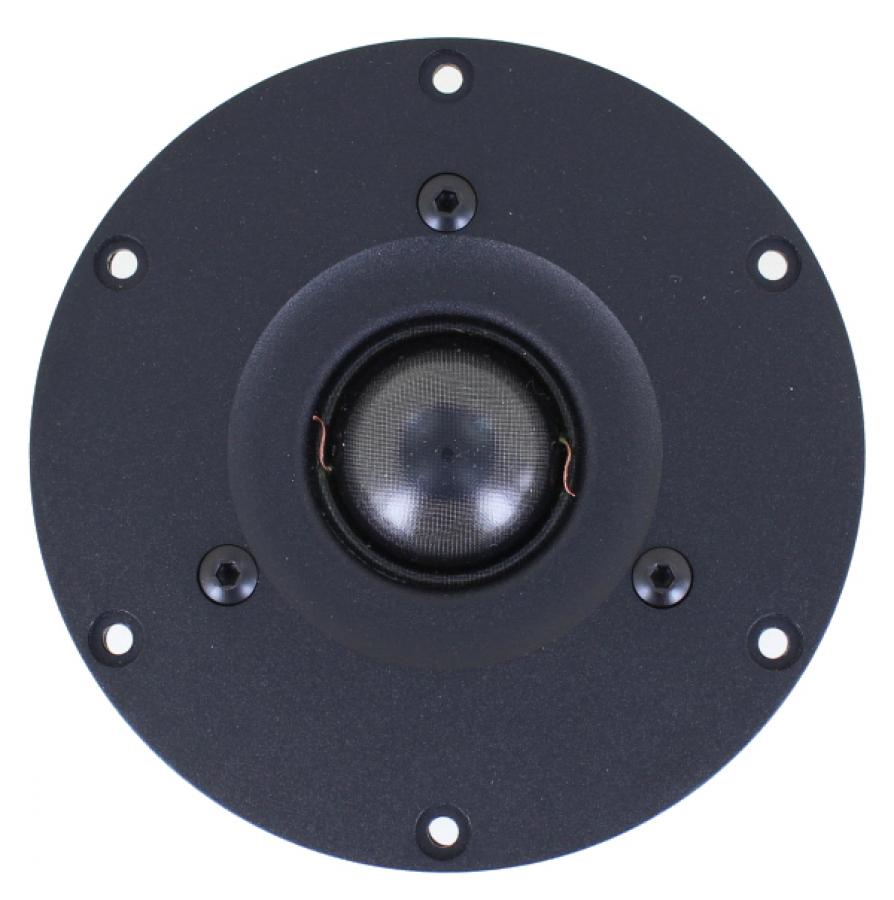

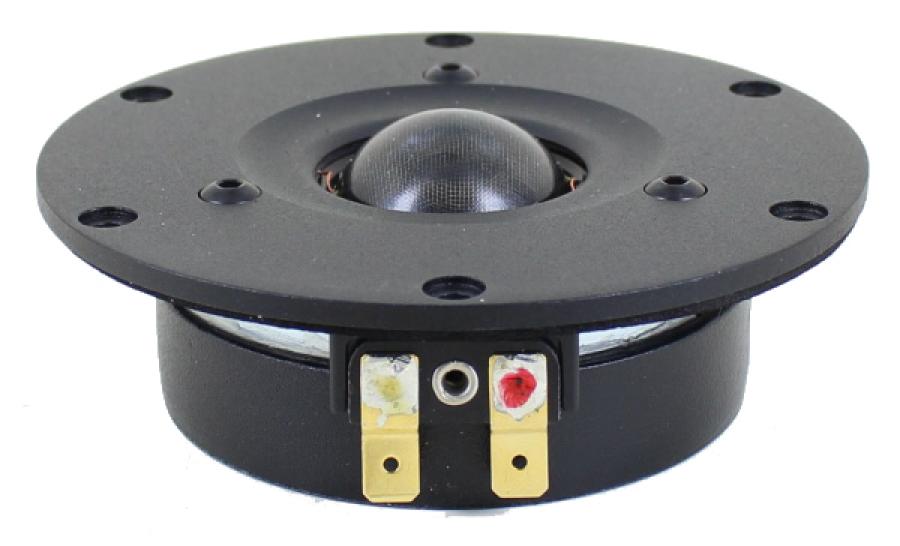

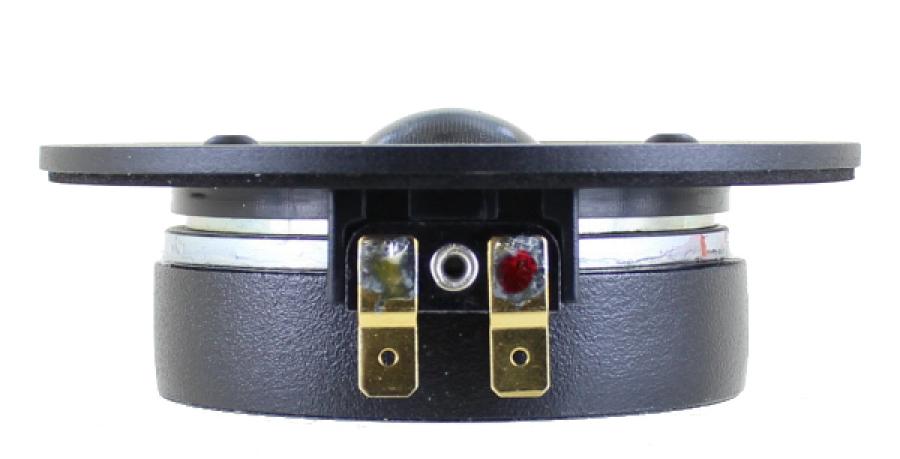

Morel Titanium Supreme TSCT1044 Tweeter - Each
Overview
Morel Titanium Supreme TSCT1044 Tweeter - Each
Advanced high-end 28mm silk dome tweeter from the Supreme range.

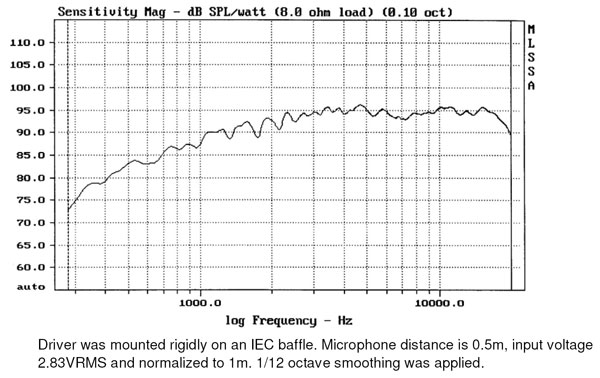

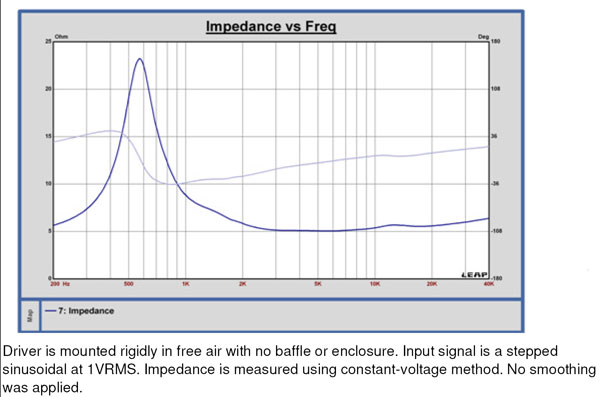

Test Bench Article
- Underhung voice coil, 4 ohm
- 1-1/8” Large Hexatech™ Aluminum voice coil
- Neodymium flat pancake magnet
- High power handling
- 104mm IDR™ (Improved Dispersion Recess)
- Titanium Voice Coil Former
- Replaceable Acuflex™ dome/coil assembly
- Aluminum die-cast rear chamber
- Copper shorting ring (in & out)

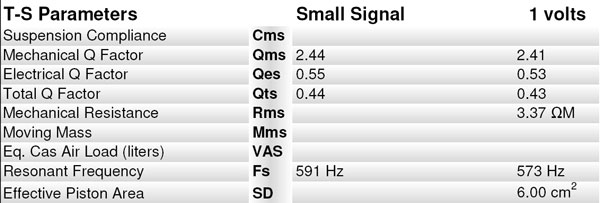

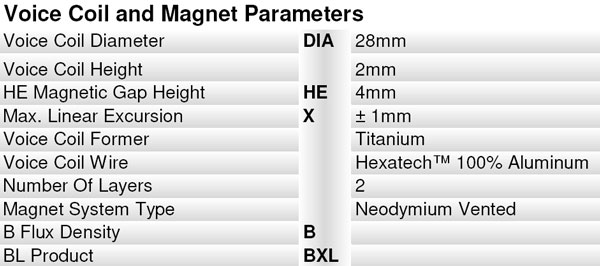

Spec sheet: Morel TSCT1044 Titanium Supreme Tweeter
Sold as each, but packaged in matched pairs. Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there at all times during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.
Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.
Copper shorting ring has several clear benefits: Reduces impedance rise and increases sensitivity; reduces voice coil inductance, which minimizes non-linearity during operation; improves overall speaker performance across the frequency band.
