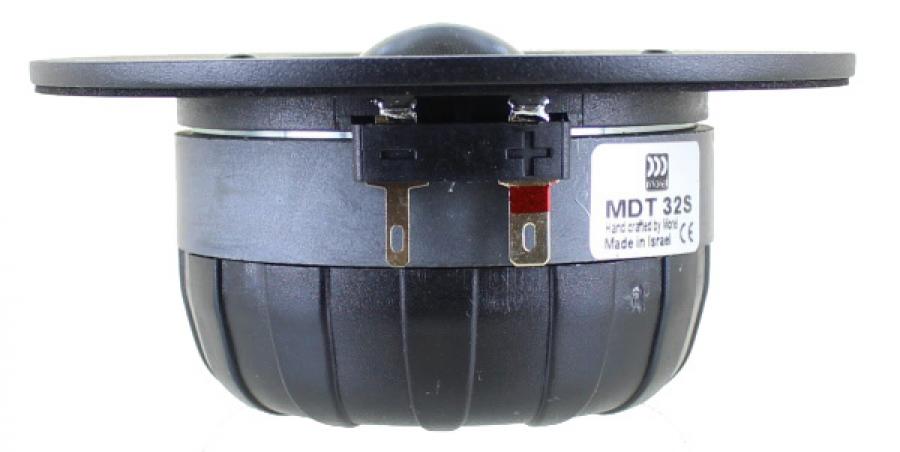

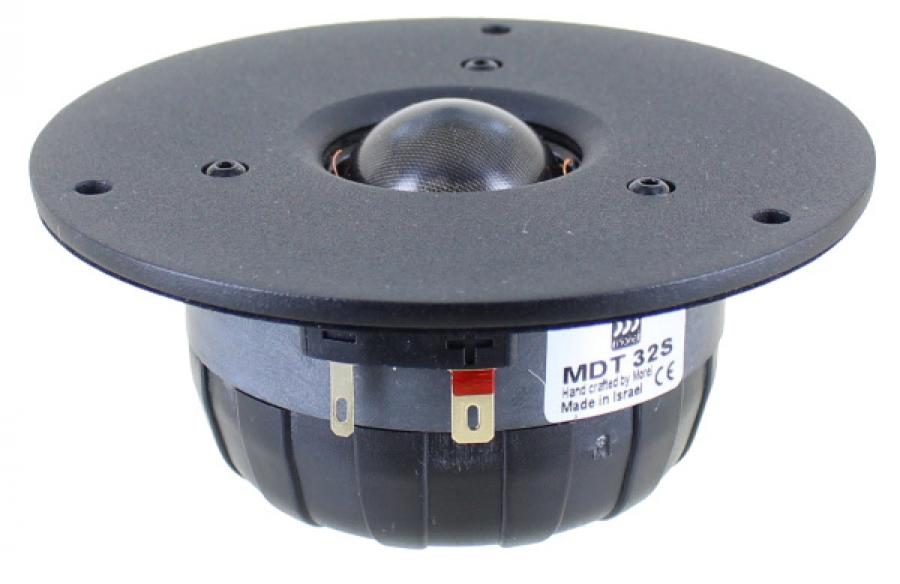

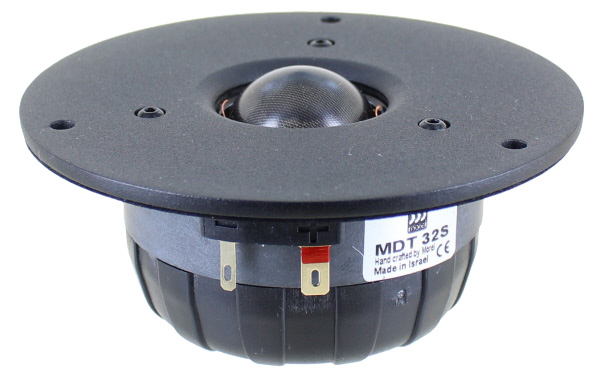

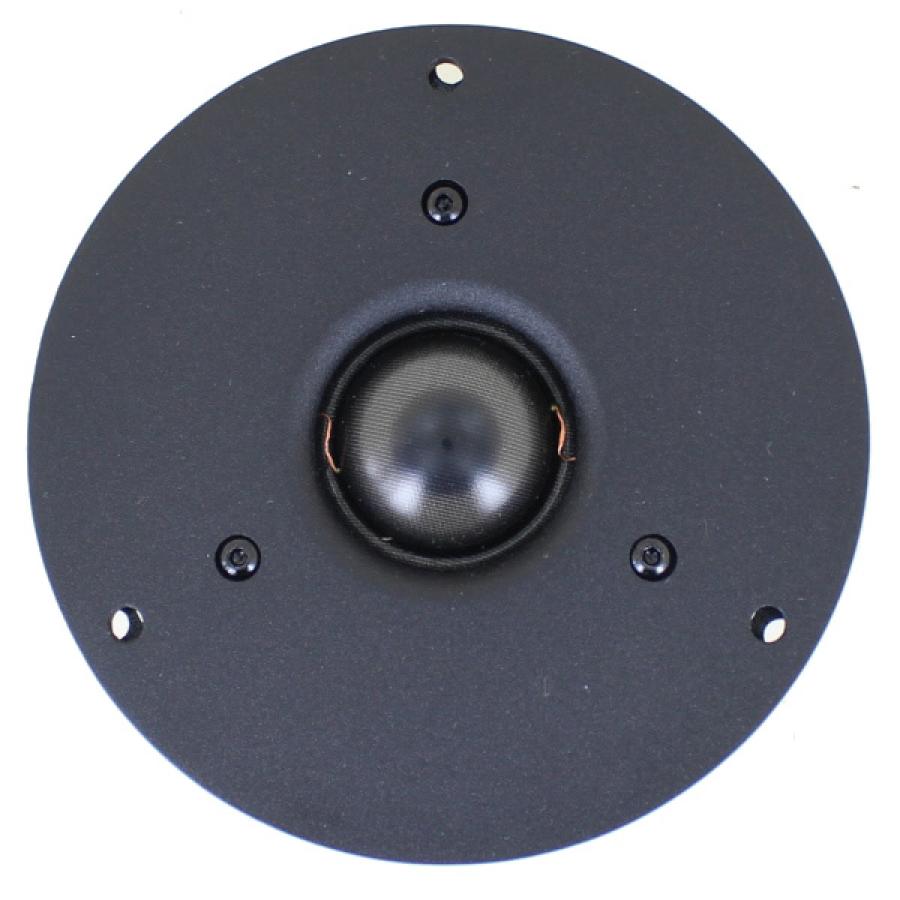

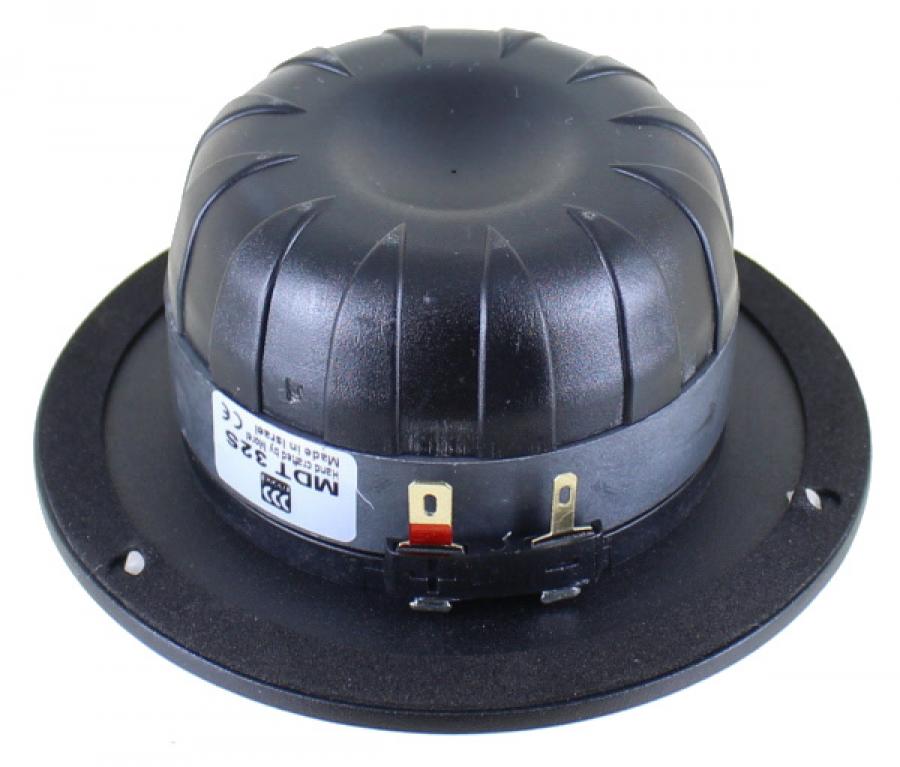

Morel MDT32S 1" textile dome tweeter with 4.33" flange
Spec sheet: Morel MDT32S Tweeter Hand coated dome
- Ferrofluid cooled
- Replaceable voice coils
- Aluminum face-plate
- Gold-plated terminals
- Rear chamber
- Flange 110mm (4.33")
- Cut-out Ø 73mm (2.87")
- Depth 43mm (1.69")
Znom 8 ohm
Re 5.2 ohm
Le@1kHz 0.09 mH
fs 650 Hz
Mms 0.44 g
Sd 6.0 cm2
BL 3.5 N/A
VC Ø 28 mm

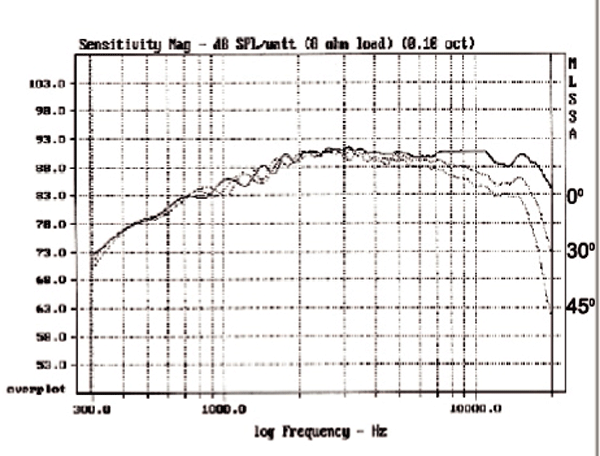

Sensitivity - 1W / 1m 90 dB
Nom. Power DIN 200 W
Net weight 0.56 kg
Best know replacement for Dynaudio D28/2 & D28AF. Same performance, specs and 110mm mounting flange. Can also be used to replace the Dynaudio D21, which also has a 110mm flange. Good replacement for the Eton 25SD-1 and 19SD-1 110mm flange tweeters, those have 4 mounting holes so you'll need to tap a couple new ones when mounting these in their place.
Use QC250R and QC110B if not soldering.
