Special Order please email us for availability.

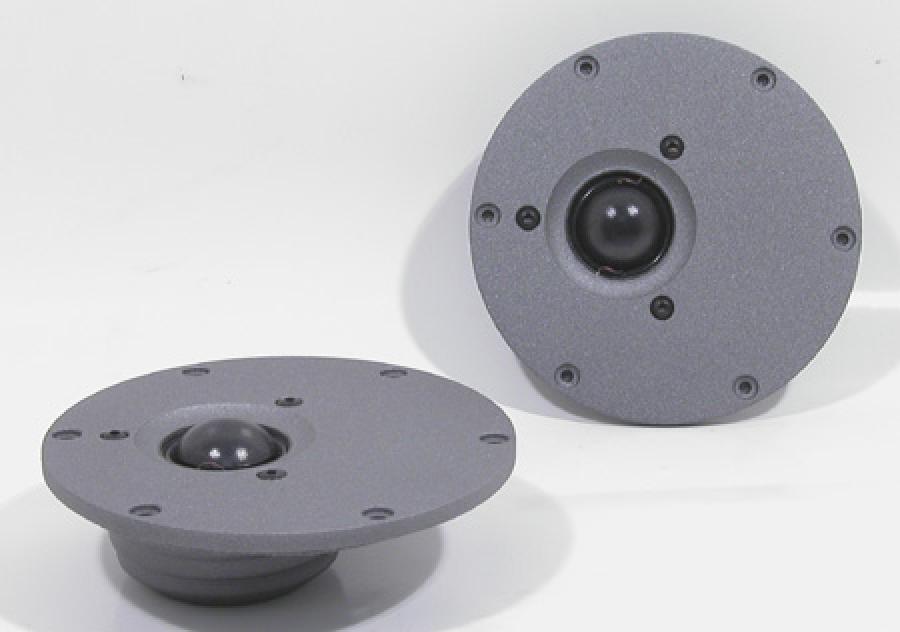

Morel Supreme ST1308 tweeter - offset dome
Spec sheet: Morel ST1308 Supreme Tweeter
Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there at all times during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.
SPECIFICATIONS: Supreme ST1308
- Overall Dimensions 130 mm
- Nominal Power Handling P 220W 12dB@2200Hz
- Nominal Impedance 8 ohm
- Sensitivity (2.83V@1M) 91.5dB
- Frequency Response 1400 - 22,000Hz
- Voice Coil Former Aluminum
- Voice Coil Wire Hexatech Aluminum
- Number Layers 2
- Magnet System Type Neodymium flat pancake
- Dome Material Acuflex Coated Textile
- IDR face plate
Voice coil replacement code: R-32/33
