Odin MK3 7" MTM Bass Reflex Speaker Kit- Pair- Parts Only

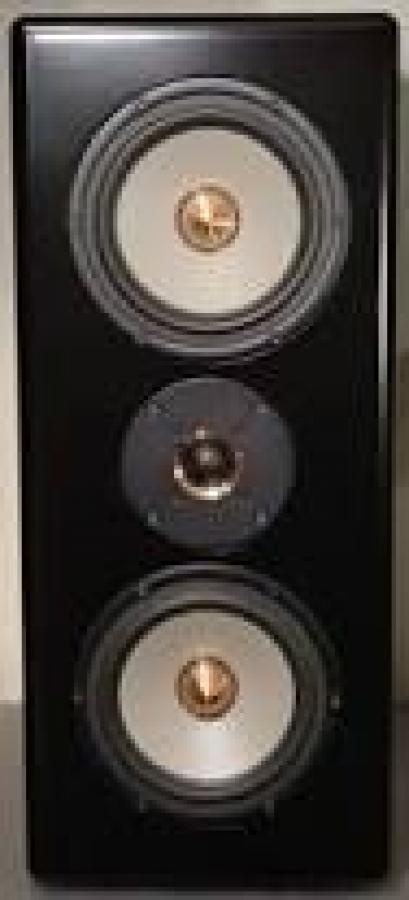

Premium MTM design using Seas Excel drivers in a bass reflex cabinet. Two W18 Excel magnesium cone woofers and the T25 Millennium fabric dome tweeter are mounted in a D'Appolito configuration. The D'Appolito configuration offers a number of advantages over standard single-woofer designs:

* Controlled vertical directivity in the midrange which reduces the effect of floor and ceiling reflections
* Excellent imaging and spatial characteristics
* Higher system sensitivity
* Lower distortion
* Increased bass output

The Odin was originally designed for Seas by Dr. Joseph D'Appolito, and was developed as a companion kit to the Thor transmission line system. He offers the following comments regarding the performance of the Odin MK3:

"The vented box is tuned about 15% lower than the ubiquitous QB3 alignment to yield a better damped bass response. Several hundred hours of laboratory testing and listening have gone into this system. You literally can't tell where the woofers leave off and the tweeter begins."

The kit includes a detailed PDF printout with instructions for assembly, including easy-to-read cabinet plans and installation of the accessories. Equivalent port to the 2-3/8" inside diameter by 7-3/4" long port would be 2.5" inside diameter by 8.25" long.

INSTRUCTIONS PDF

The cabinet is designed with a minimum front baffle area to reduce diffraction effects. The port tube is constructed of two MDF boards which also serve as additional bracing for the cabinet. The port is placed in the middle of the cabinet and the port exit is to the rear. This technique ensures that each of the drive units will have symmetrical bass loading. The bass loading utilizes a sub-chebychev filter for minimum group delay. The crossover network has been configured to yield an acoustic 4th order Linkwitz-Riley crossover at 2.2kHz. The network also includes 2 L-C networks connected directly at the woofer terminals which eliminate the high frequency peak caused by the breakup mode of the magnesium cone. The tweeter crossover section includes equalization and impedance linearization networks. The Odin produces a very accurate and detailed sound stage with superb imaging capabilities. Bass is solid and detailed with usable extension below 40Hz. The Odin is capable of revealing the good and bad aspects of both source material and the electronic components. It is recommended that a high quality amplifier with the capability of driving loads of 4 ohms or less be used with this system.

Optional Accessories Package:

• 2x Bennic TD Bi-Wire Terminal Cups
• 10' Foam Tape for gasketing
• 2x 27" x 42" Foam Sheets
• 1x 16 oz. of Acousta-stuff
• 32x #8 x1" Pan Head Screws
• 8x #6x 3/4" Socket Head Screws
• 15' Supra Classic 1.6 cable
• 36" Solder

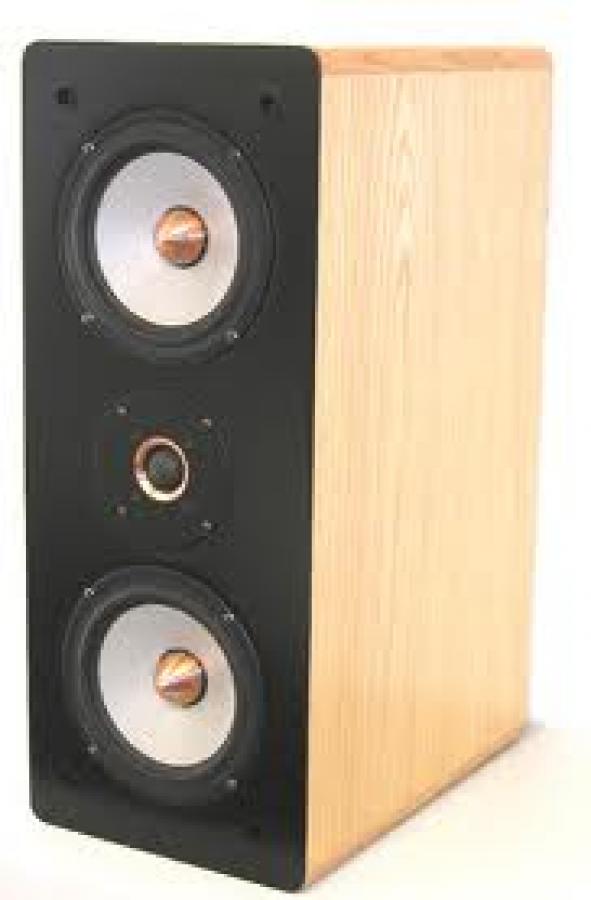

The drivers are mounted in a classic D'Appolito configuration. The cabinet is a bass reflex design with the vent placed in the rear. This directs any potential vent noises away from the listener, and allows for minimum baffle area in the front. The pvc port tube is supported by an internal baffle which helps maintain equal air flow on each end of the tube, and also serves as additional cabinet bracing. The port tuning frequency is 31Hz.

• Frequency response for Seas Odin Kit
• Enclosure plan for Seas Odin Kit (mm)
• Enclosure plan for Seas Odin Kit (inches)
• Crossover design for Seas Odin Mk3

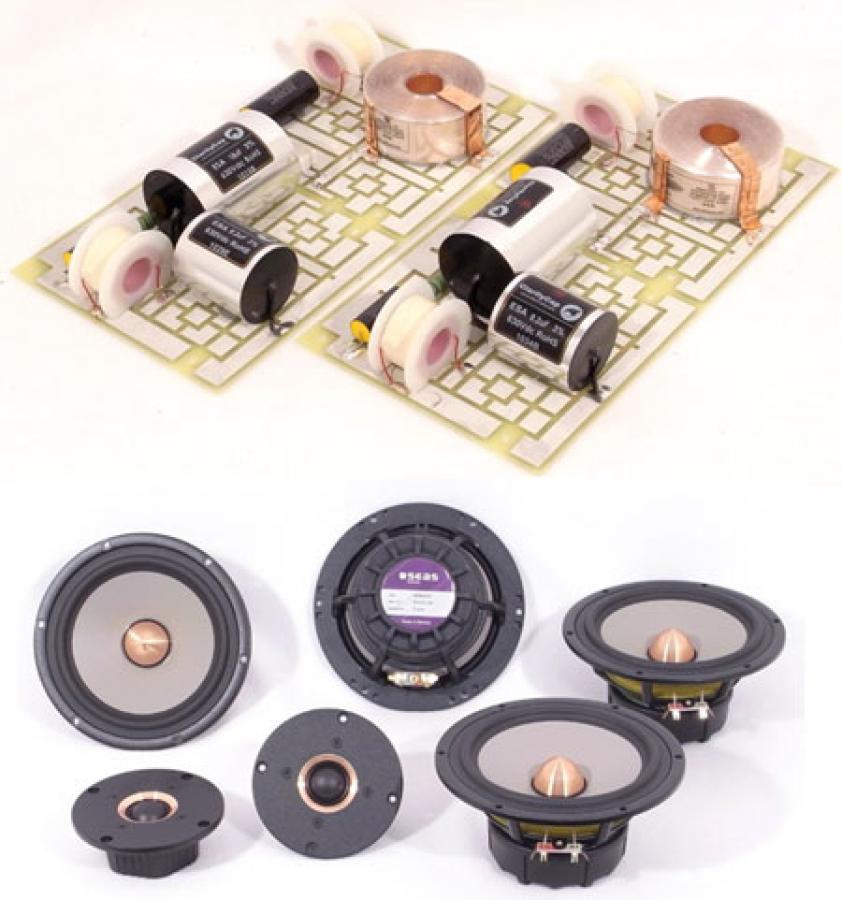

The crossover network is conventional except for a parallel circuit which suppresses the response peak due to the magnesium cone. The crossover frequency is 2.5kHz. We are building these exclusively with high-end parts: Goertz Copper Foil inductor on the woofer section, Clarity CSA and Bennic Polypropylene capacitors, and Mundorf resistors (please note the picture shows the older ESA-version crossovers).

Upgrade further to Mundorf Supreme on the hi-pass via the pull-down menu.
