Seas Thor Speaker Kit Pair- parts only
Volume Pricing
10% off
Overview

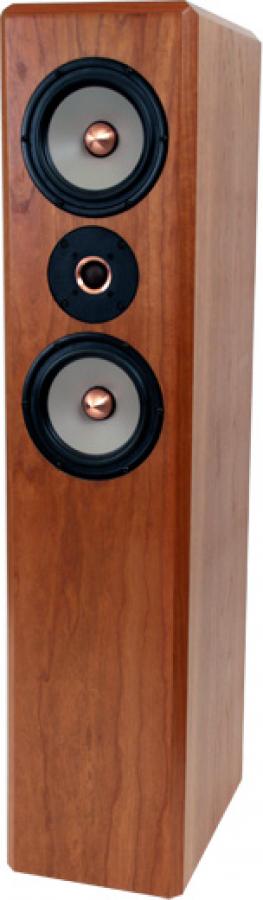

Seas Thor 7" MTM Transmission Line Speaker Kit- Pair- Parts Only
Premium MTM design using Seas Excel drivers in a transmission line cabinet. Transmission-line (TL) loudspeakers have long enjoyed a small but dedicated following, especially in the DIY community. The advantages of TLs are well known. They are essentially non-resonant enclosures, producing a deep, well-controlled bass response. For a given driver, bass response can often extend well below that produced with either a vented or sealed enclosure using the same driver. Above a few hundred Hz, the line-filling material completely absorbs the driver back wave, giving the TL an open, non-boxy sound.

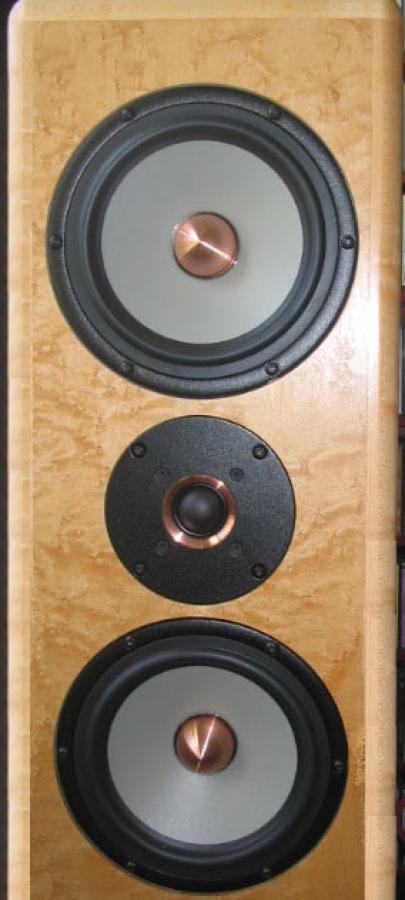

The Seas Thor kit consists of 4x Seas W18E-001 7" woofers, 2x Seas T25CF-002 in MTM arrangement, 2x fully assembled premium crossovers, and all internal accessories required. The two W18 Excel magnesium cone woofers and the T25 Millennium fabric dome tweeter are mounted in a D'Appolito configuration. The D'Appolito configuration offers a number of advantages over standard single-woofer designs:
* Controlled vertical directivity in the midrange which reduces the effect of floor and ceiling reflections.
* Excellent imaging and spatial characteristics.
* Higher system sensitivity.
* Lower distortion.
* Increased bass output.
For more in-depth information about the design, please see the article by Dr. Joseph D'Appolito and Dennis Colin in AudioXpress.
Online reviews of the Seas Thor Speaker Kit
- Joseph D'Appolito, "THOR: a D'Appolito Transmission Line ," audioXpress, May 2002, pgs 8-27.
- Honest review of the Thor kit on Speaker Asylum
Single kits may be ordered for half the pair price.
The kit includes a detailed PDF printout with instructions for assembly, including easy-to-read cabinet plans and installation of the accessories.
INSTRUCTIONS PDF
Optional Accessories Package:
- 4x Bennic DB Single-Wire Terminal Cups
- 18' Foam Tape for gasketing
- 1 lb. of Acousta-stuff
- 32x #8 x1" Socket Head Screws
- 12x #6x 3/4" Pan Head Screws
- 16x #6x 3/4" Socket Head Screws
- 34' Supra Classic 1.6 cable
- 36" Solder
- 1 tube GOOP
- Enclosure plan (mm) for Seas Thor Speaker Kit
- Enclosure plan (inches) for Seas Thor Speaker Kit
- Seas Thor Frequency Response Graph
- Crossover design for Seas Thor and Seas Odin Mk3
The crossover network is conventional except for a parallel circuit which suppresses the response peak due to the magnesium cone. The crossover frequency is 2.5kHz. We are building these exclusively with high-end parts: Goertz Copper Foil inductors, Clarity CSA capacitors, and Mundorf resistors(Please note the older-style ESA caps are pictured).
Upgrade further to Mundorf Supreme on the hi-pass via the pull-down menu.
