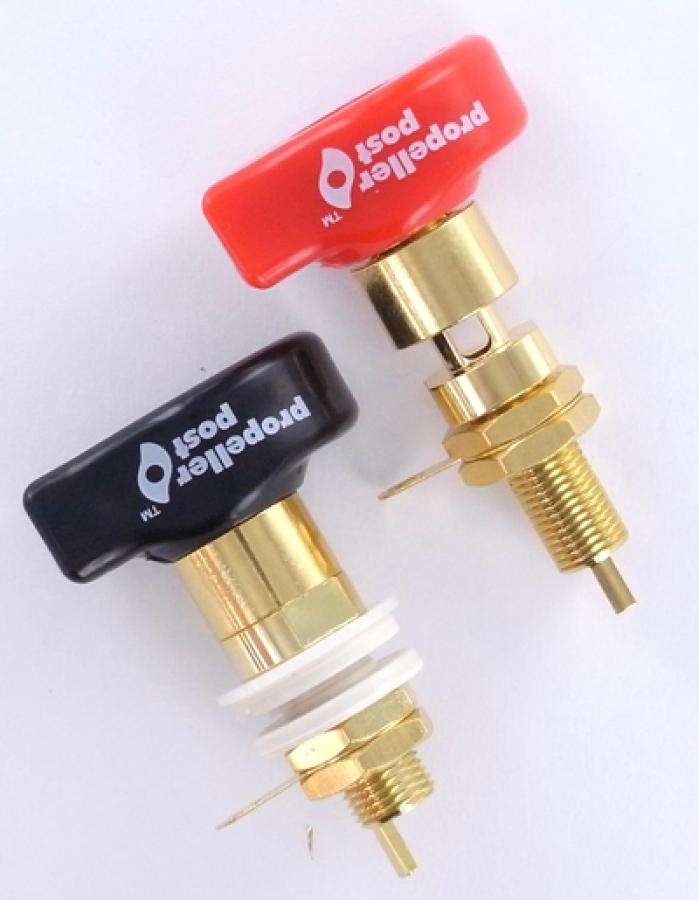

Propeller Post 16mm Tellurium Copper with Gold Plating - Pair
Price shown is for a PAIR
- Tellurium Copper with Gold Plate
- 16.5mm long threaded shaft (0.65")
- Use with banana, spade(6.5mm) or cable entry (2.9mm x 3.9mm opening)
- Connect from inside with solder tab or direct solder to post
- Comes with 2 solder tabs (3.4mm), 4 gold plated brass nuts, 4 shoulder washers, 2 flat washers
- Use a 11mm wrench to hold post during mounting (7/16")
- Use a 5/16" diameter hole for mounting (8mm)
- Use a 3/8" diameter hole in sheet metal when using the shoulder washers (9.5mm)
- The shoulder washers are used when mounting into a steel plate to isolate the post from the plate
Tellurium Copper is 99.5% Copper (Cu) and 0.5% Tellurium (Te) along with trace amounts of Silver and Phosphorus. Tellurium is added to the copper to improve the metals machinability. Propeller posts are designed by Virtue Audio: www.virtueaudio.com.
Shoulder washer cut out drawing.
Shaft threading is M8 x 0.75
Flat washer is 18mm OD
Shoulder washers are 16.5mm OD and made for 9.25mm hole, one is notched
Minimum 33mm post spacing so propellers don't touch each other.
Here is a pic of the propellers, front and back.
