Propeller Post 35mm TC Binding Post - Pair

Propeller Post 35mm Tellurium Copper with Gold Plating - Pair
Price shown is for a PAIR

• Tellurium Copper with Gold Plate
• 35mm long threaded shaft (1.37")
• Use with banana, spade(6.5mm) or cable entry (2.9mm x 3.9mm opening)
• Connect from inside with solder tab or direct solder to post
• Comes with 2 solder tabs (3.4mm), 4 gold plated brass nuts, 4 shoulder washers, 2 flat washers
• Use a 11mm wrench to hold post during mounting (7/16")
• Use a 5/16" diameter hole for mounting (8mm)
• Use a 3/8" diameter hole in sheet metal when using the shoulder washers (9.5mm)
• The shoulder washers are used when mounting into a steel plate to isolate the post from the plate

Tellurium Copper is 99.5% Copper (Cu) and 0.5% Tellurium (Te) along with trace amounts of Silver and Phosphorus.  Tellurium is added to the copper to improve the metals machinability.  Propeller posts are designed by Virtue Audio: www.virtueaudio.com.

Shoulder washer cut out drawing.

Shaft threading is M8 x 0.75

Flat washer is 18mm OD

Shoulder washers are 16.5mm OD and made for 9.25mm hole, one is notched

Minimum 33mm post spacing so propellers don't touch each other.

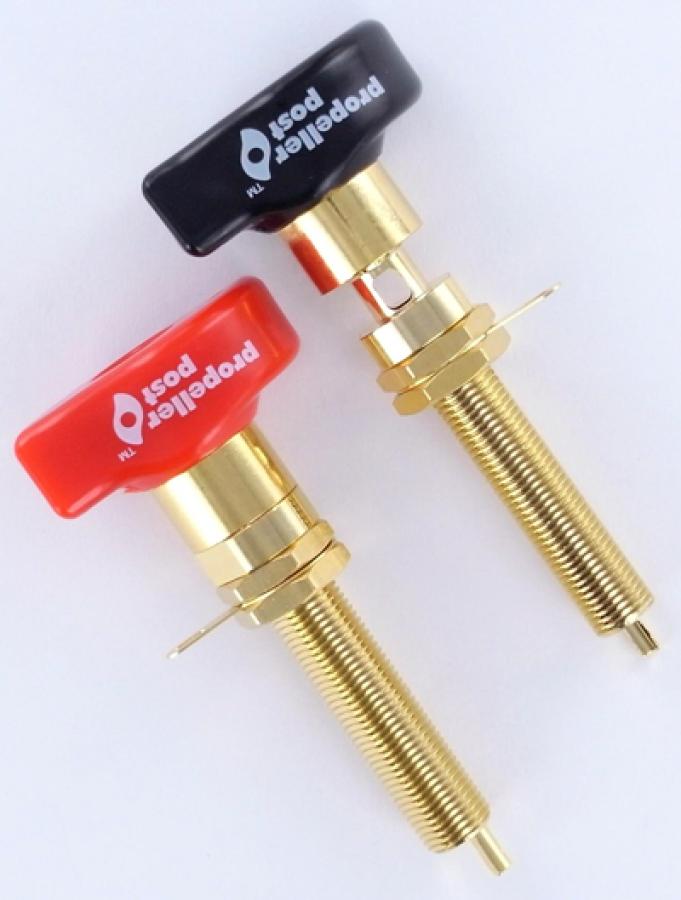

Here is a pic of the propellers, front and back.
