Discontinued

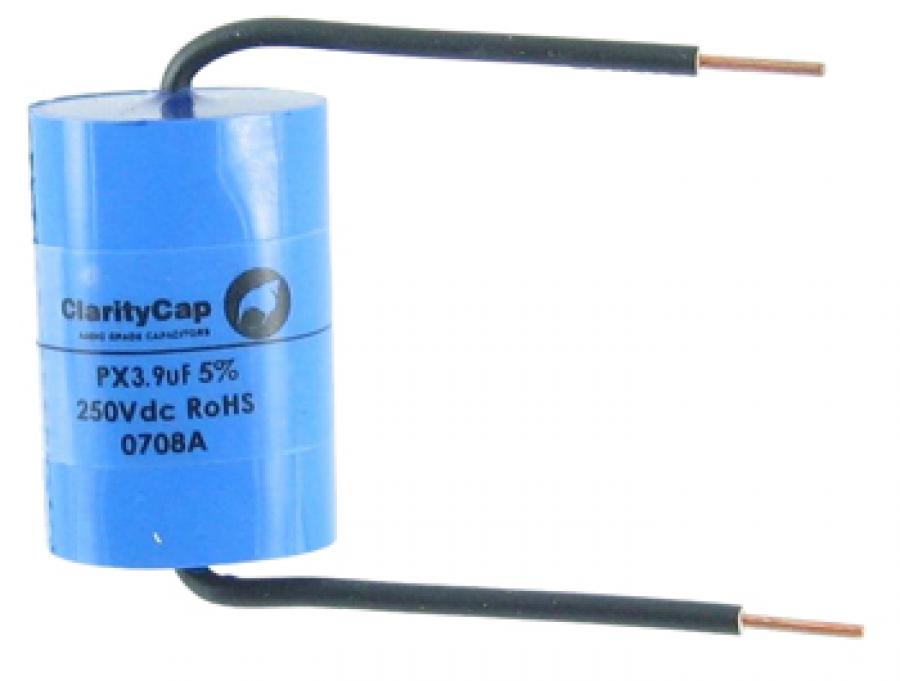

ClarityCap 3.9 mfd PX Range Polypropylene Caps
The ClarityCap PX range capacitor has a 5% tolerance. The PX is constructed from a 250Vdc rated film. The component is spindle wound. It is then given a special heat treatment before the insulated copper terminals are hand soldered to achieve the best possible connection. The inherently low dissipation and dielectric absorption factors of polypropylene allied with an excellent mechanical stability results in an extremely detailed sonic performance. The construction also results in a low self inductance and ESR (Equivalent Series Resistance) and the devices are highly stable with regard to temperature and frequency.
Compare PX values, dimensions, and Vdc: ClarityCap PX Capacitor Comparison Table
