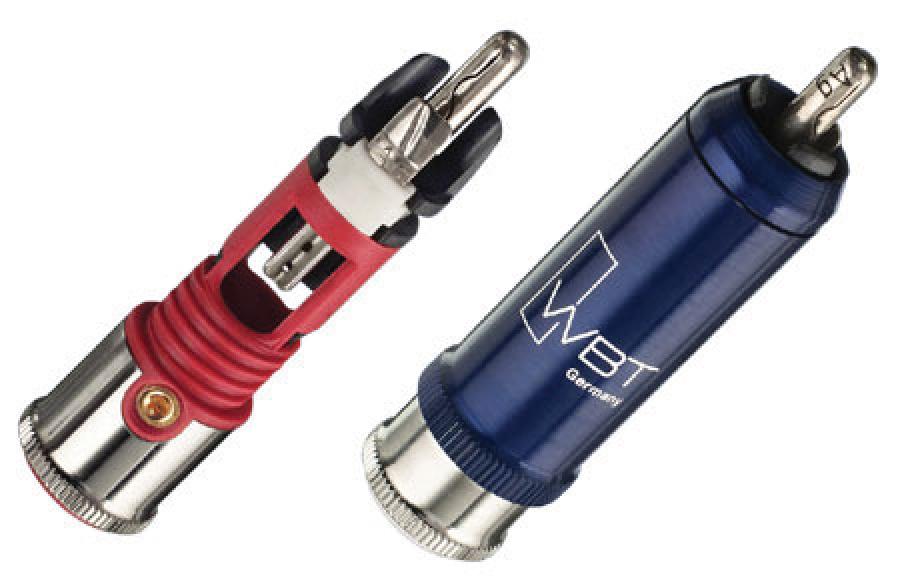

WBT-0110Ag-R nextgen Silver Signature - Red

Manufacturer: WBT

Be the first to review this product

Product ID: wbt-0110ag-r

$110.00

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

High-end RCA plug with nextgen™ technology. Passivated pure fine silver contacts. The body is constructed of Ultramid®, while the negative contact uses Dyneon™. The Barrel is comprised of Al/Mg alloy for improved rejection of EMI. With a characteristic impedance of 75 ohms, the WBT-0110 makes the perfect match for digital audio and video. The maximum size conductor that can be used is 1.5mm² / 16-17 AWG. Maximum diameter of cable with dielectric is 9mm² / 0.354 inches². Connector body available in nine different colors for multichannel identification. The barrel is offered in cobalt blue only.

WBT-0110Ag-R nextgen Silver Signature - Red

Spec sheet: WBT - 0110 RCA Plug nextgen

Passivated pure fine silver contacts. The body is constructed of Ultramid, while the negative contact uses Dyneon. The Barrel is comprised of Al/Mg alloy for improved rejection of EMI. With a characteristic impedance of 75 ohms, the WBT-0110 makes the perfect match for digital audio and video. The maximum size conductor that can be used is 1.5mm² / 16-17 AWG. Maximum diameter of cable with dielectric is 9mm² / 0.354 inches². Connector body available in nine different colors for multichannel identification. The barrel is offered in cobalt blue only.

Soldering required. Consider using WBT-0820 silver solder and a WBT-0488 Torx key.

Characteristic impedance: 75 ohms

For cable up to 9 mm dia.
