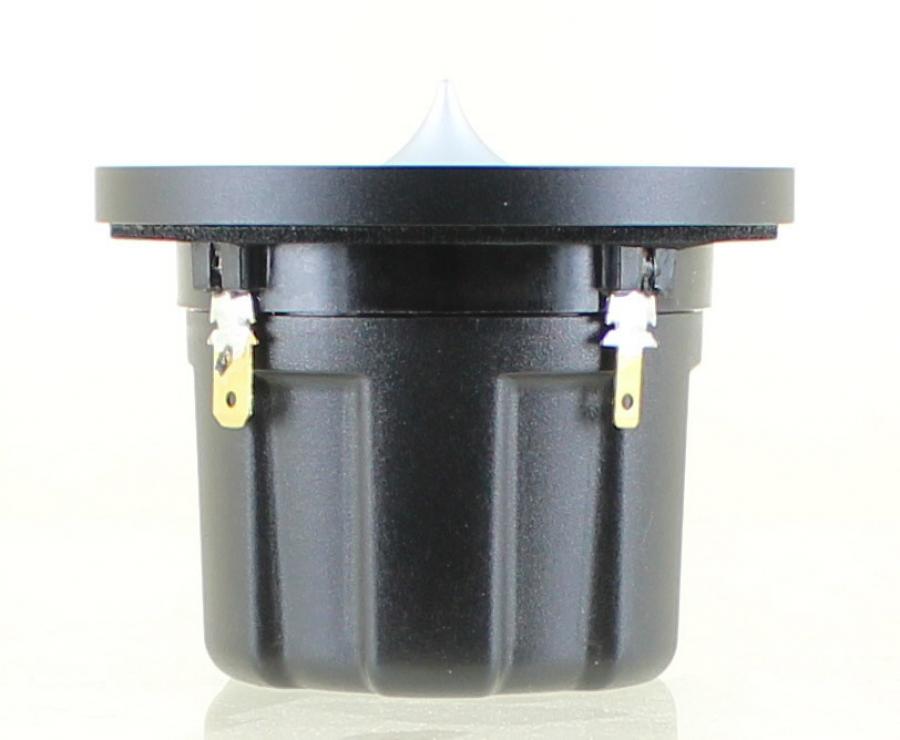

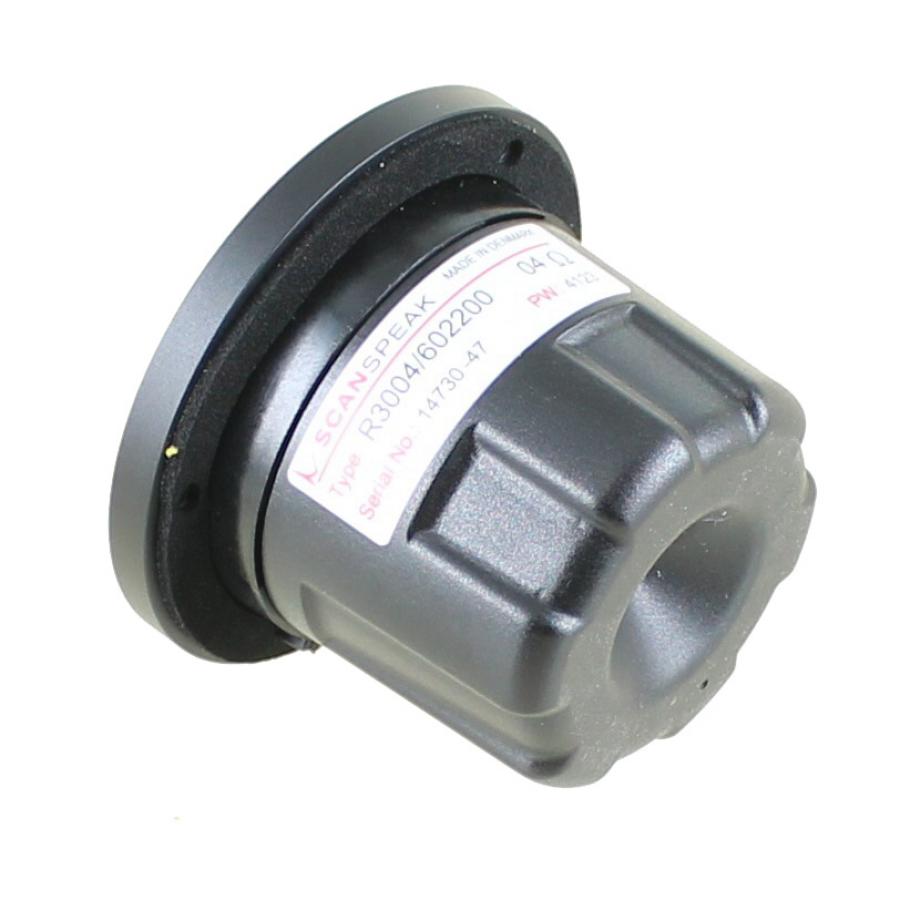

Scan-Speak R3004/602200 Illuminator Ring Radiator Tweeter
Scan-Speak R3004/602200 Illuminator Ring Radiator Tweeter

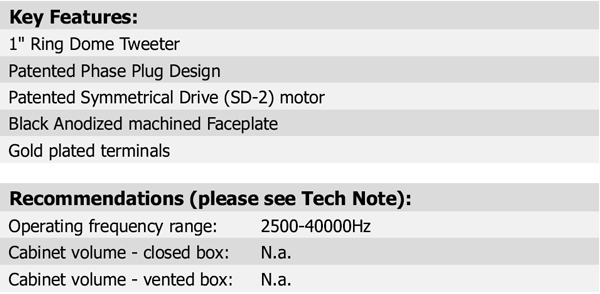

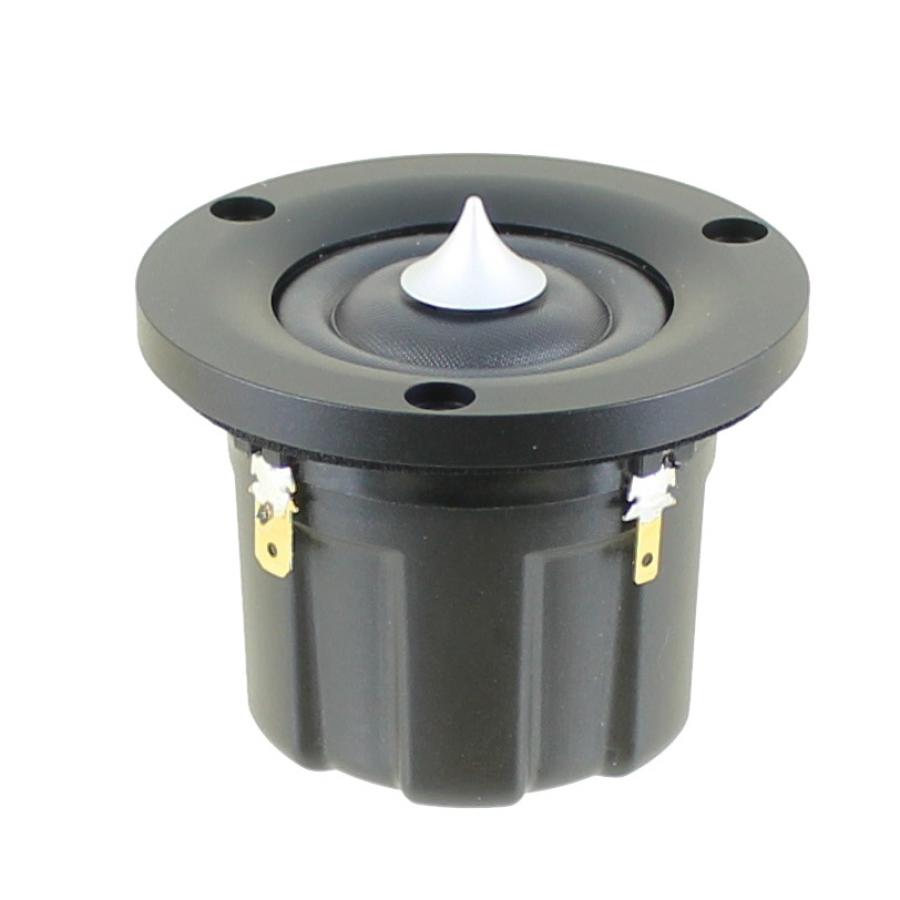

Having recently updated the D3004/602200 Illuminator dome tweeter, Scan-Speak has now released the optimized ring radiator version R3004/602200, replacing R3004/602000 and R3004/602010 models. The smaller size of the new version allows for a variety of design options. The new versions are fully comparable to the renowned full size Illuminator and Revelator tweeters and still incorporate the patented phase plug design and symmetrical drive (SD-2) motor.

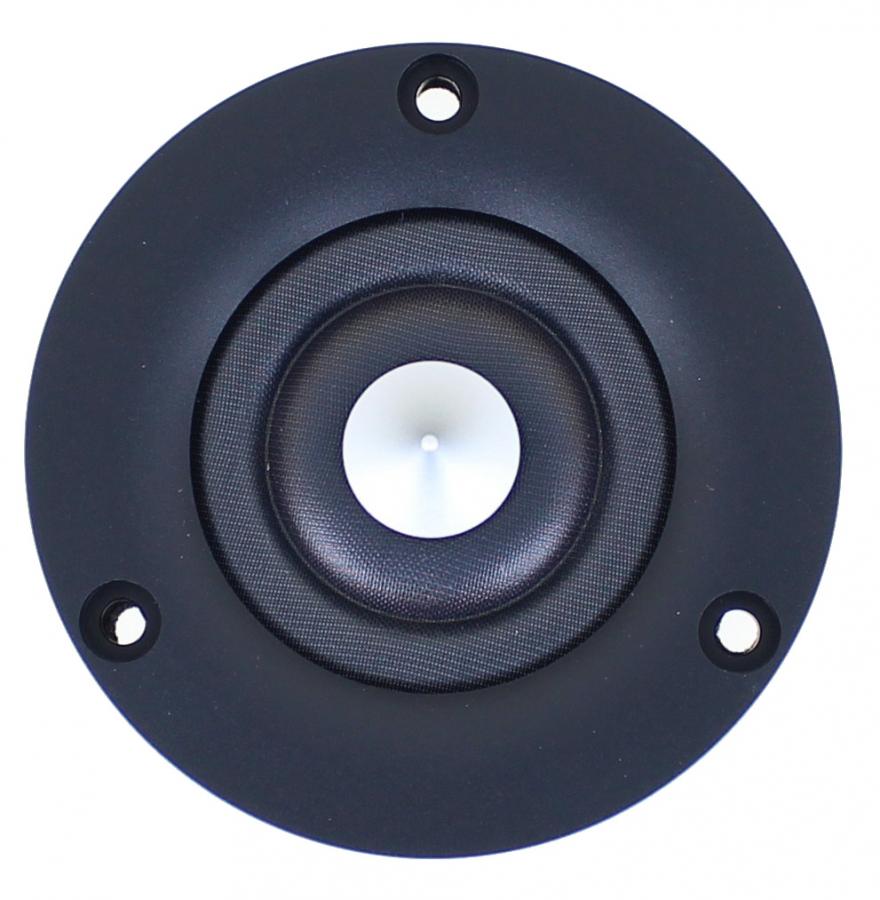

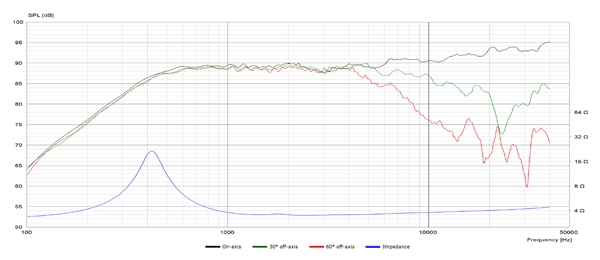

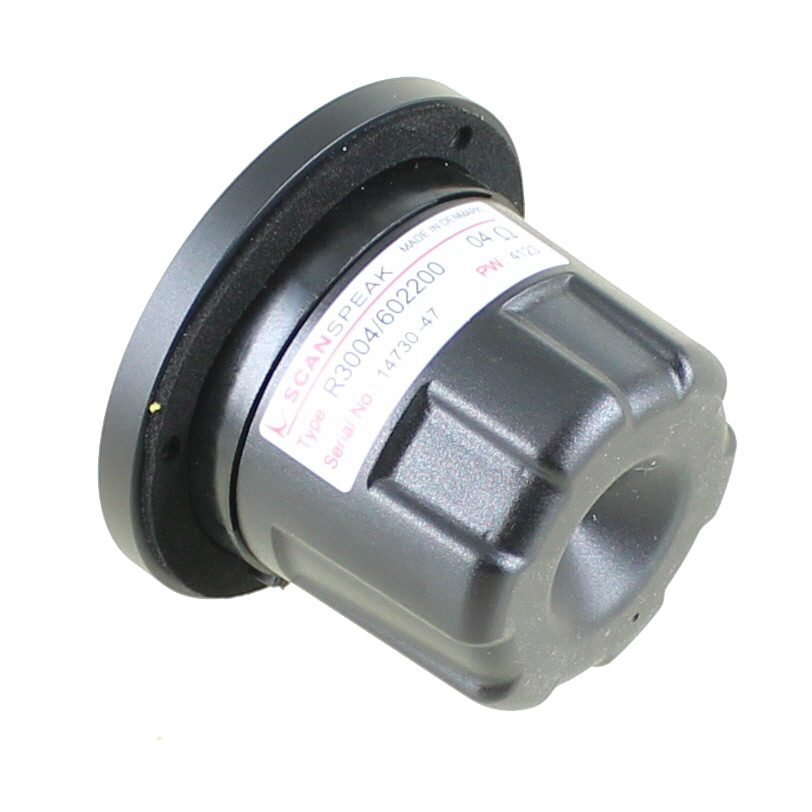

The new Scan-Speak R3004/602200 Ring Radiator Tweeter has lower distortion and improved frequency response beyond 40kHz due to optimized internal construction. Increased sensitivity (+2dB) is the result of a higher grade neodymium magnet. Improved Q is also a result of the optimized internal volume in a new high precision reinforced polycarbonate rear chamber. Black anodized aluminum Ø62mm faceplate and improved gold-plated terminals with increased heat resistance at solder points.
Note: The mechanical drawing does not show the notch-out requirement for the speaker wire tabs. They are not flush with the tweeter chamber. Take this into account or view the 3-D model on the Scan-Speak website for more detailed information. The Scan-Speak brand was founded in Denmark in 1970.
