ScanSpeak Discovery R2604/8330 Tweeter Dual Ring Radiator

Manufacturer: ScanSpeak

1 Customer Review(s)

Product ID: r2604_8330

$74.40

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

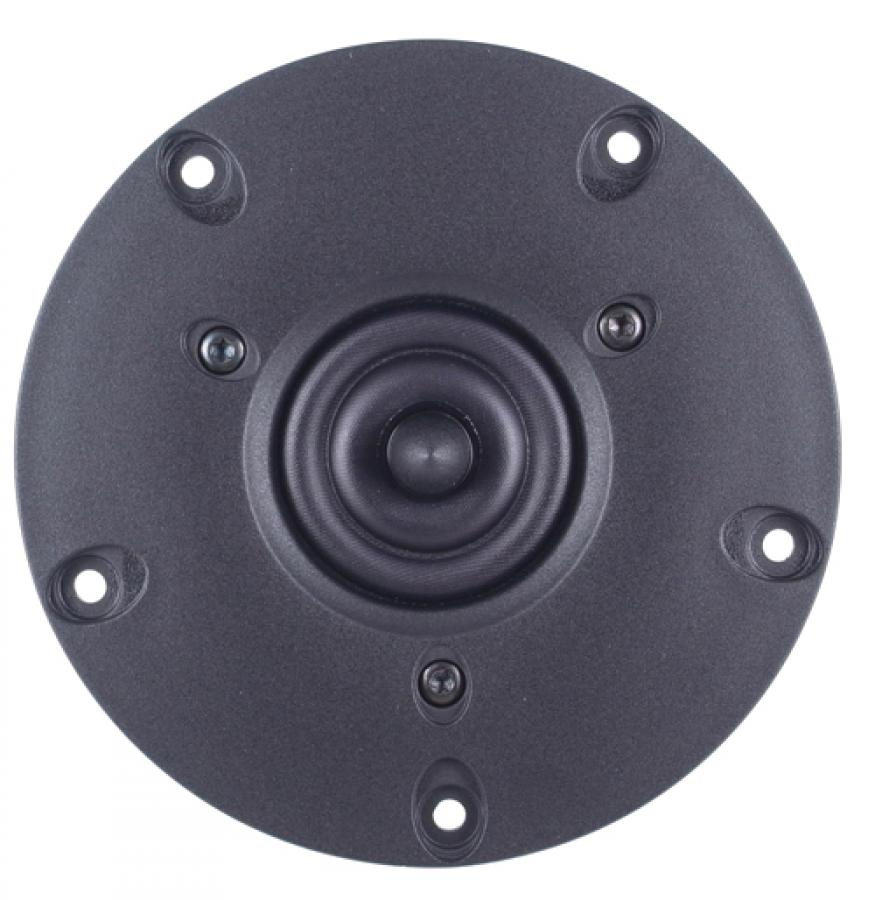

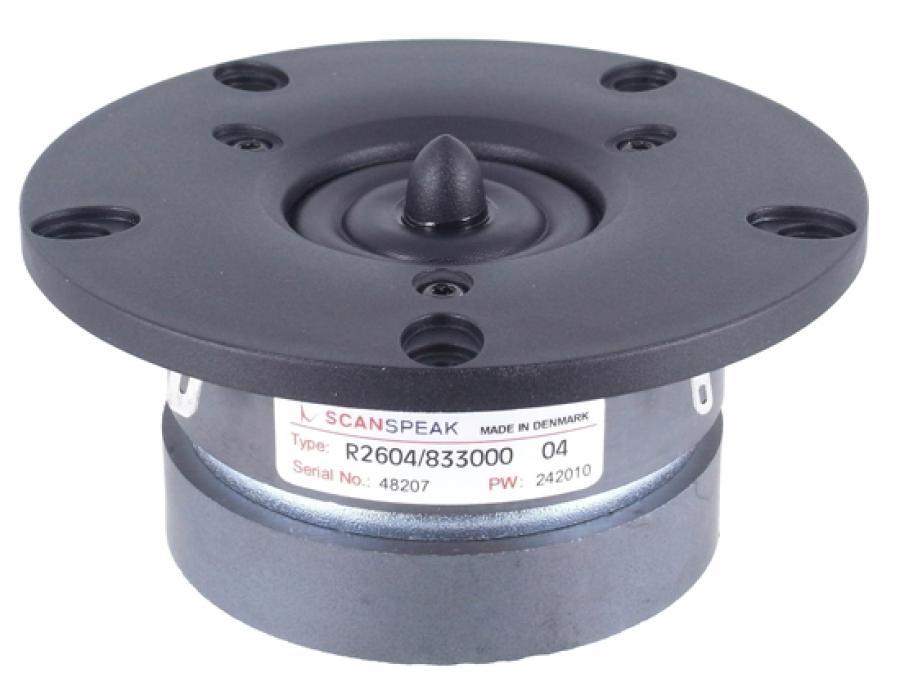

ScanSpeak Discovery R2604/8330 Tweeter Dual Ring Radiator- 104mm- 4 ohm- 92 dB

ScanSpeak Discovery R2604/8330 Tweeter Dual Ring Radiator- 104mm- 4 ohm- 92 dB

Spec Sheet PDF

Scan-Speak Danish-made version of the Vifa XT25BG60-04 tweeter. Similar to -8300 but with double magnet for higher SPL.

Dual Ring Radiator Diaphragm (Patented)
Wave-guide center plug (Patented)
Extended frequency to above 40kHz
High Sensitivity - 92dB
Low Resonance Frequency - 440Hz
Low Distortion
Double Magnet
Rear Chamber
Copper Clad Alu-wire

The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz. The additional volume from the second magnet also increases the size of the chamber, lowering the resonance frequency. This tweeter is an excellent choice for any high end home or automotive system.

1 Customer Review(s)

Verified Purchase

QUALITY TO SPARE FOR A MODIFIED CLASSIC

Reviewed by adrian.lachner on 04/30/2024

Somehow with these tweeters I managed to get the best soundstage I've ever heard.

Makes you want to keep listening to your music all night long.

As an added bonus, I can hear my speakers and Night without waking the whole house, low volume is precise and clear.

They replaced a high end titanium tweeter, on a "wide" cabinet speaker (JBL L100 Classic), and gave them a refined personality, and voicing.

No measurements yet. And I am reluctant to measure them, as they sound so good to me, I don't want to be biased if there are measurements results that don't match with what I am hearing.. Just enjoyable sounds.

(I used adapter rings, custom Made in CF Nylon, to make them fit 127mm flush cutouts and Mid range was also replaced with Scan Speak).
