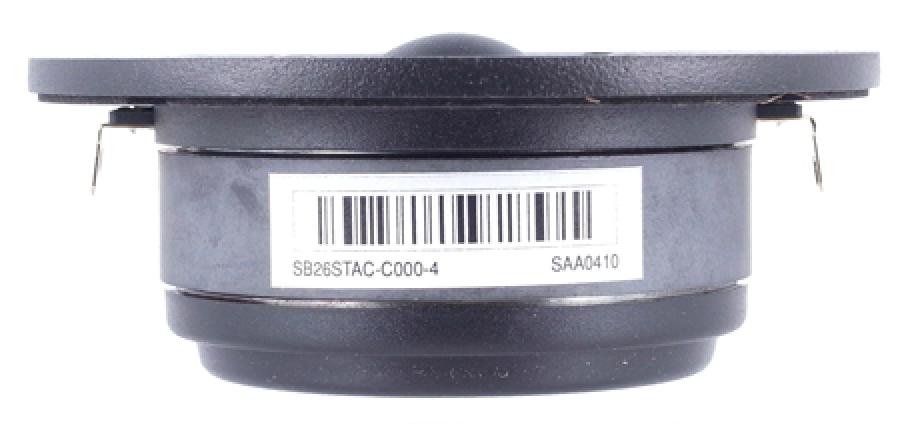

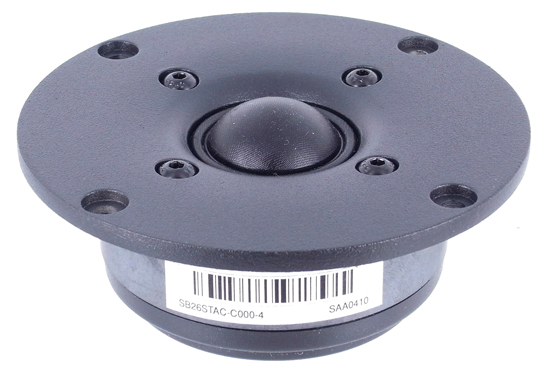

SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter

SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter
Click to enlarge
Price: $41.60


  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: SB Acoustics
Product ID : sb26stac-c000-4
Weight: 1.50 lbs
Manufacturer: SB Acoustics
E-mail to a friend


SB Acoustics SB26STAC-C000-4 Tweeter

Spec sheet: SB26STAC-C000-4 PDF

  • 1" Textile Dome
  • Frequency Range 2000Hz to 25,000Hz
  • 4 ohm Impedance
  • 91.5dB Efficient
  • 100mm Linear Response Metal Face Plate (3.94")
  • Low Reflection Tuned Rear Chamber
  • Foam Gasket Attached

Advanced Features

  • Cast aluminium faceplate
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • Fine weave soft fabric dome for smooth frequency response
  • Saturation controlled motor system for low distortion
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency

The SB26STAC-C000-4 has been recommended as a very good replacement for the Allison Model AL 120 tweeter.  The outside diameter, cut out and terminal positions are all compatible to the original tweeter.  The customer also did measurement comparisons and found them to be a good match in both frequency and impedance.

Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by lirico
10/18/2018 - 09:21:19 AM
Muy buenos
Muy recomendables, lo uso combinados con parlantes antiguos en cajas de 3 way; La respuesta sonica es muy pareja y bastante detallada, dejando a la luz todo contenido con muy agradable nivel y sin duresas. sin duda alguna pueden hacer la inversion con seguridad.
Reviewed by RICARDOBR
RICARDOBR bought "SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter" on our website
01/16/2014 - 11:48:24 AM
Got this driver to replace a three way speaker system from the mid 80's. I didn't know its crossover points. However, the old tweeter was a 4ohm non vented 19mm soft dome design, which lead me to the conclusion the crossover point should be rather high (3000 hz or +).
So, I took a guess this SB would do the job of injecting "air" and liveness to the sound (the old driver had a somewhat sibilant and lacklustre, dirty sound).
And I guessed right! After some break in, this very nice buit tweeter sounds incredibly clean and open, transforming the old system totally. By the way, it's fast and very dinamic too!
I'm pretty knew to the DIY hobby, but I think that, with a better crossover and in an overall better speaker system design, this tweeter might work miracles!
