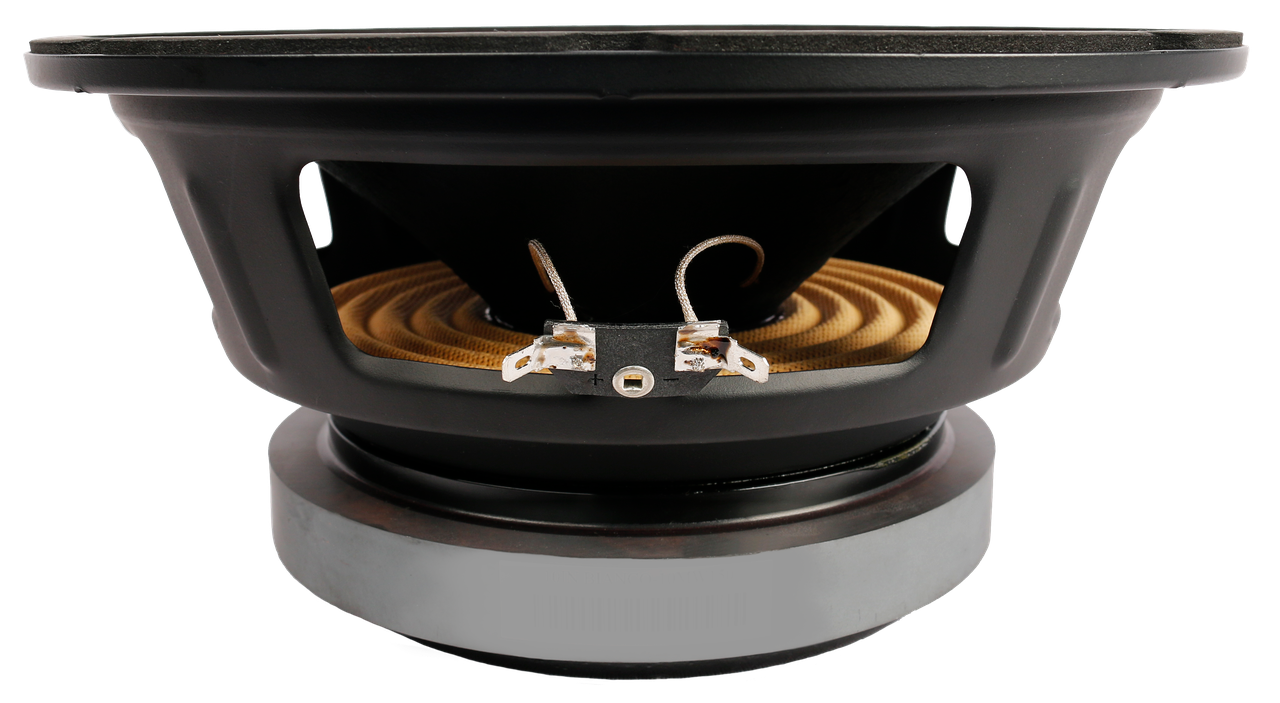

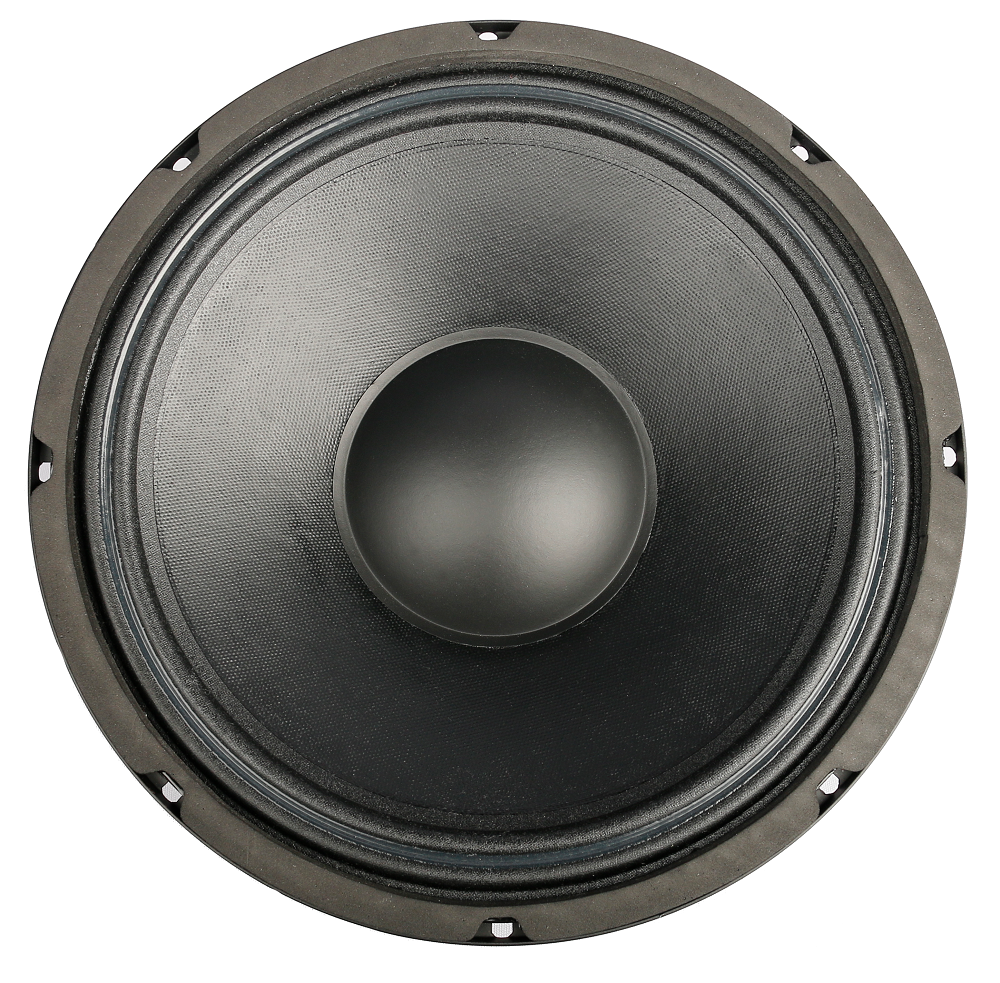

SB Audience Bianco-10MW150 10" Mid-woofer
Manufacturer: SB Audience
Product ID: Bianco-10MW150
Price:
$98.10
Product is out of stock
Overview
SB Audience Bianco-10MW150 10" Paper Cone Mid-Woofer- 258mm- 8 ohm- 100dB
SB Audience Bianco-10MW150 10" Paper Cone Mid-Woofer- 258mm- 8 ohm- 100dB
Spec Sheet PDF
Try small vented box 0.8 cf3- see below. Good for high SPL 3-way.
At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers. The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.
Possible box alignments:
Sealed box of 0.65 cubic feet for 3dB down of 130Hz.
Vented box of 0.8 cubic feet with a 3" diameter vent by 3.75" long for 3dB down of 68Hz.
Spec Sheet PDF
Try small vented box 0.8 cf3- see below. Good for high SPL 3-way.
At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers. The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.
- Proprietary cone paper material with linter pulp
- 2.4" voice coil with APC (Advanced Polymer Coating)
- Vented back plate for reduced compression
- Minimum damping fiber glass voice coil former
- Weather-proof coated conepaper
- Long life silver lead wires
Possible box alignments:
Sealed box of 0.65 cubic feet for 3dB down of 130Hz.
Vented box of 0.8 cubic feet with a 3" diameter vent by 3.75" long for 3dB down of 68Hz.
