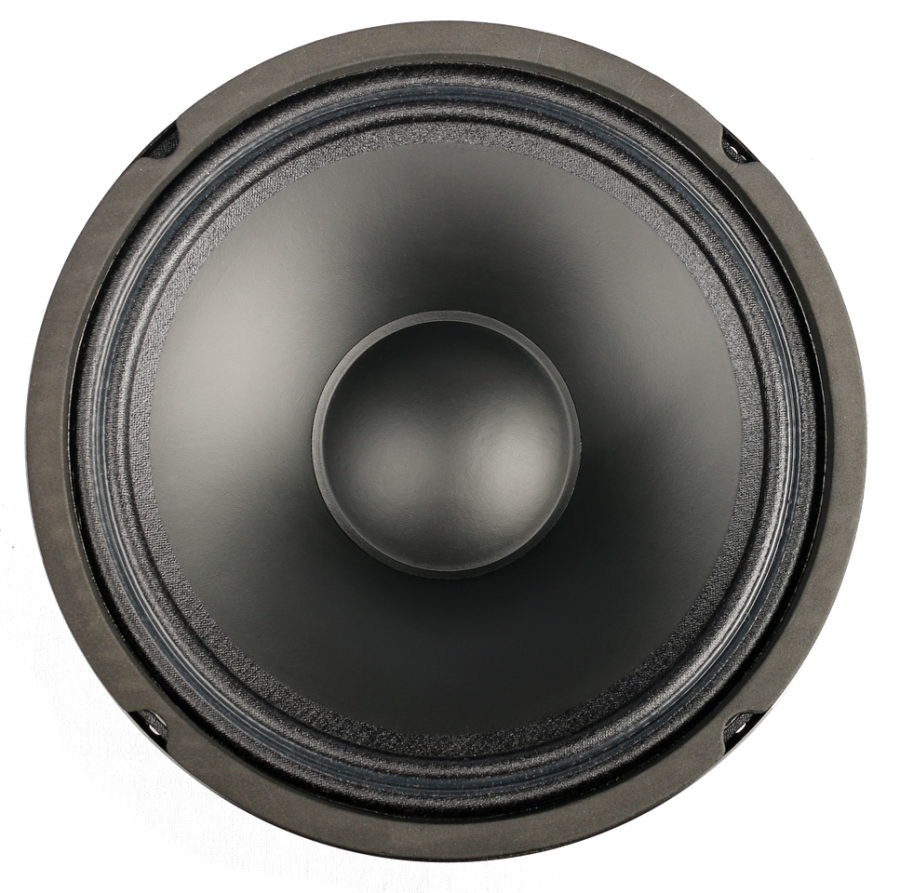

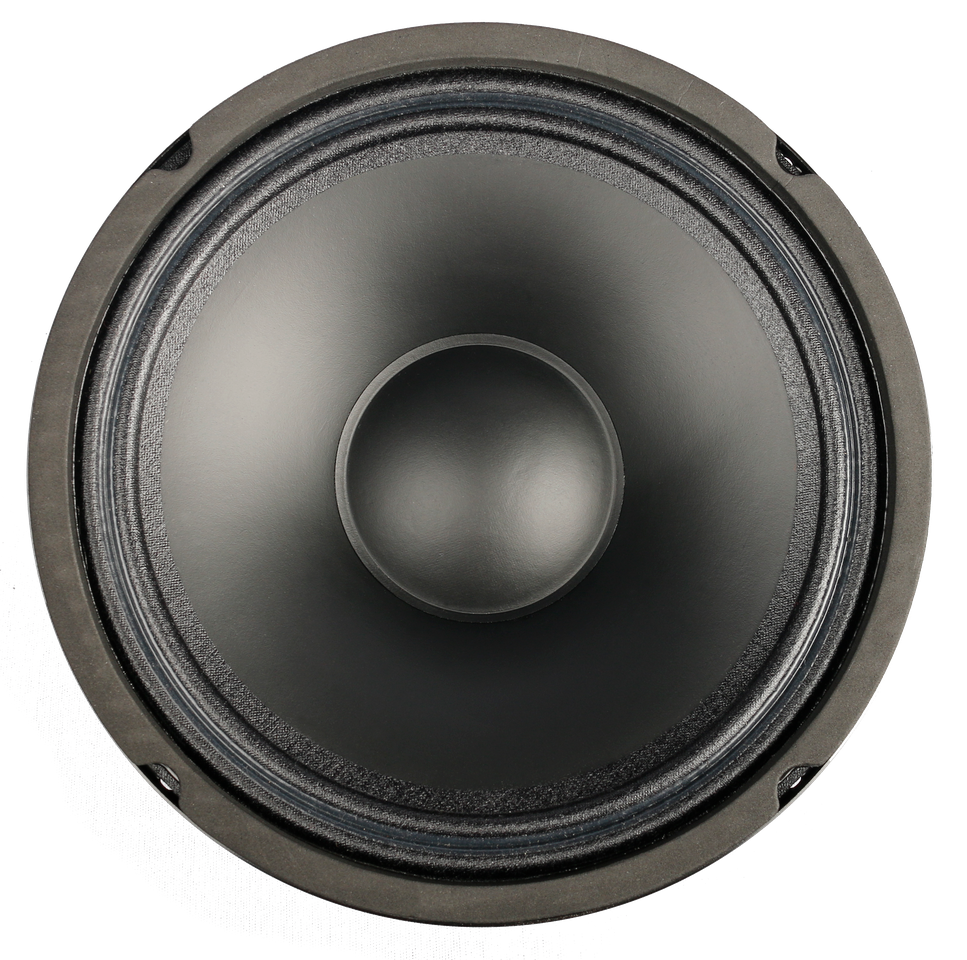

SB Audience Bianco-8MW125 8" Mid-woofer
Manufacturer: SB Audience
Product ID: Bianco-8MW125
Price:
$53.10
Overview
SB Audience Bianco-8MW125 8" Paper Cone Mid-Woofer- 205mm- 8 ohm- 97dB
SB Audience Bianco-8MW125 8" Paper Cone Mid-woofer- 205mm- 8 ohm- 97dB

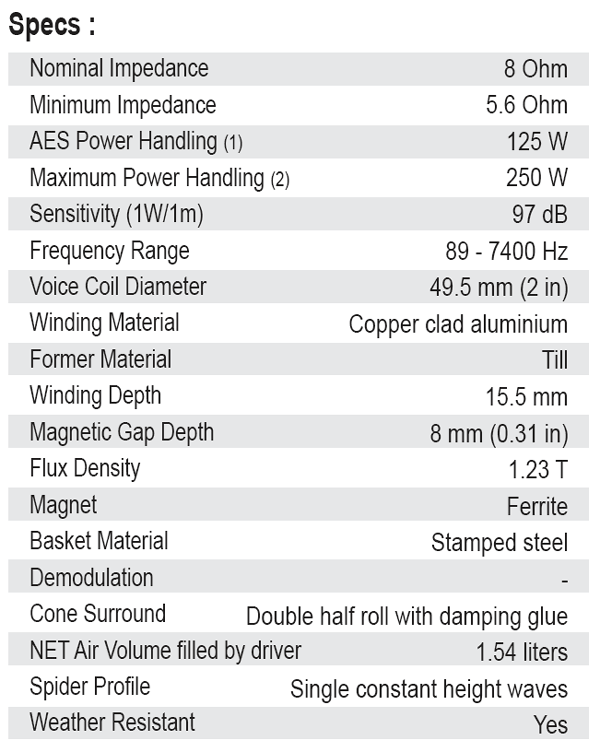

Spec Sheet PDF
High Qts- good for open baffle, free air or sealed box. .35 cf3 sealed F3 125 Hz. See some sample boxes below.

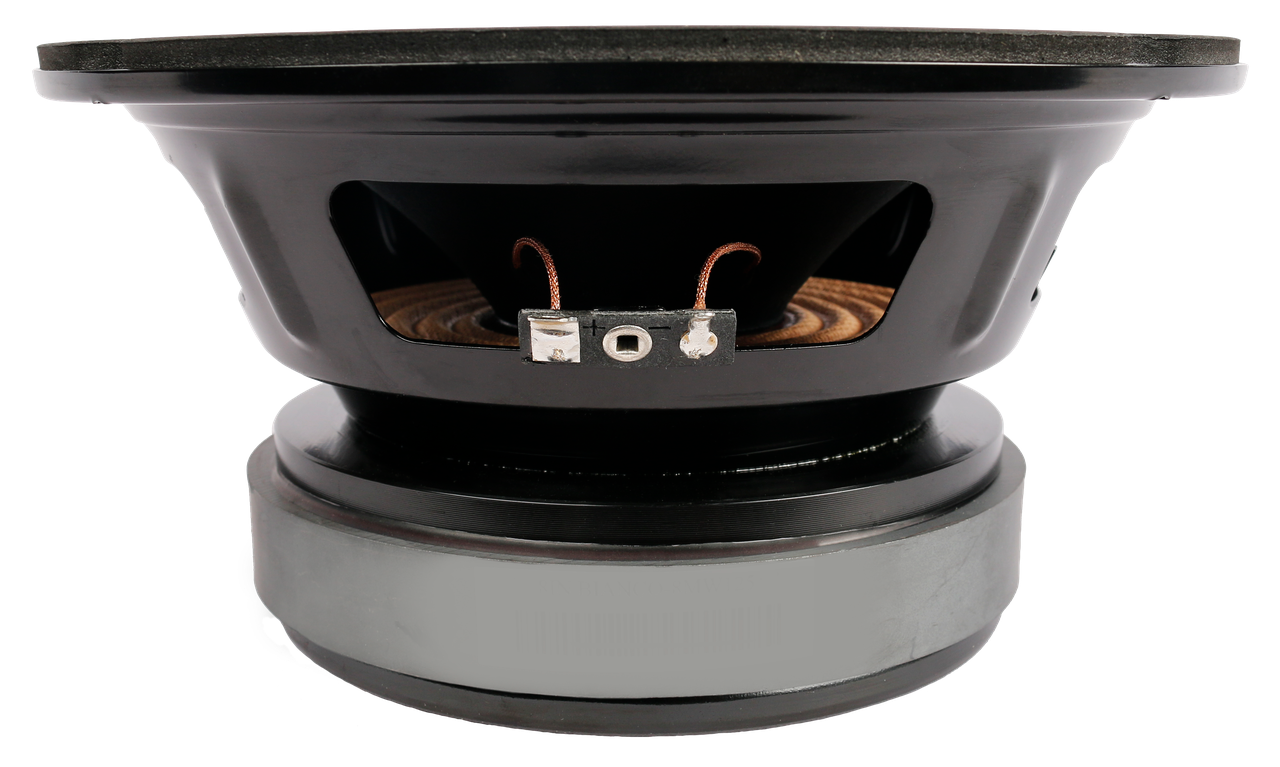

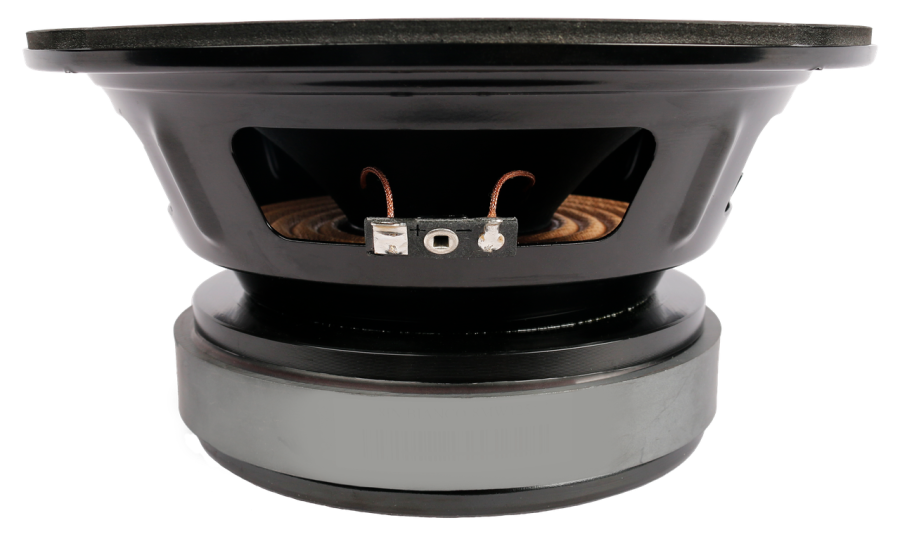

At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers. The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.
Possible box alignments:
Sealed box of 0.35 cubic feet for a 3dB down of 125hz.

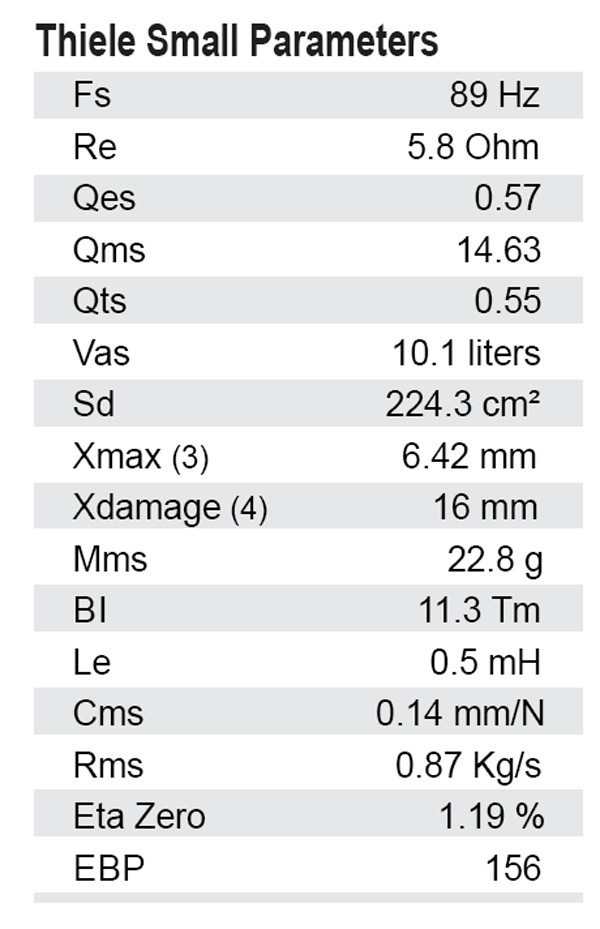

The high Qts of 0.55 indicates this woofer should be used sealed.
Spec Sheet PDF
High Qts- good for open baffle, free air or sealed box. .35 cf3 sealed F3 125 Hz. See some sample boxes below.
At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers. The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.
- Proprietary cone paper material made in-house
- 2" voice coil with APC (Advanced Polymer Coating)
- Vented back plate for reduced compression
- CCAW voice coil wire for reduced moving mass
- Minimum damping fiber glass voice coil former
- Long life silver lead wires
Possible box alignments:
Sealed box of 0.35 cubic feet for a 3dB down of 125hz.
The high Qts of 0.55 indicates this woofer should be used sealed.
