At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers.

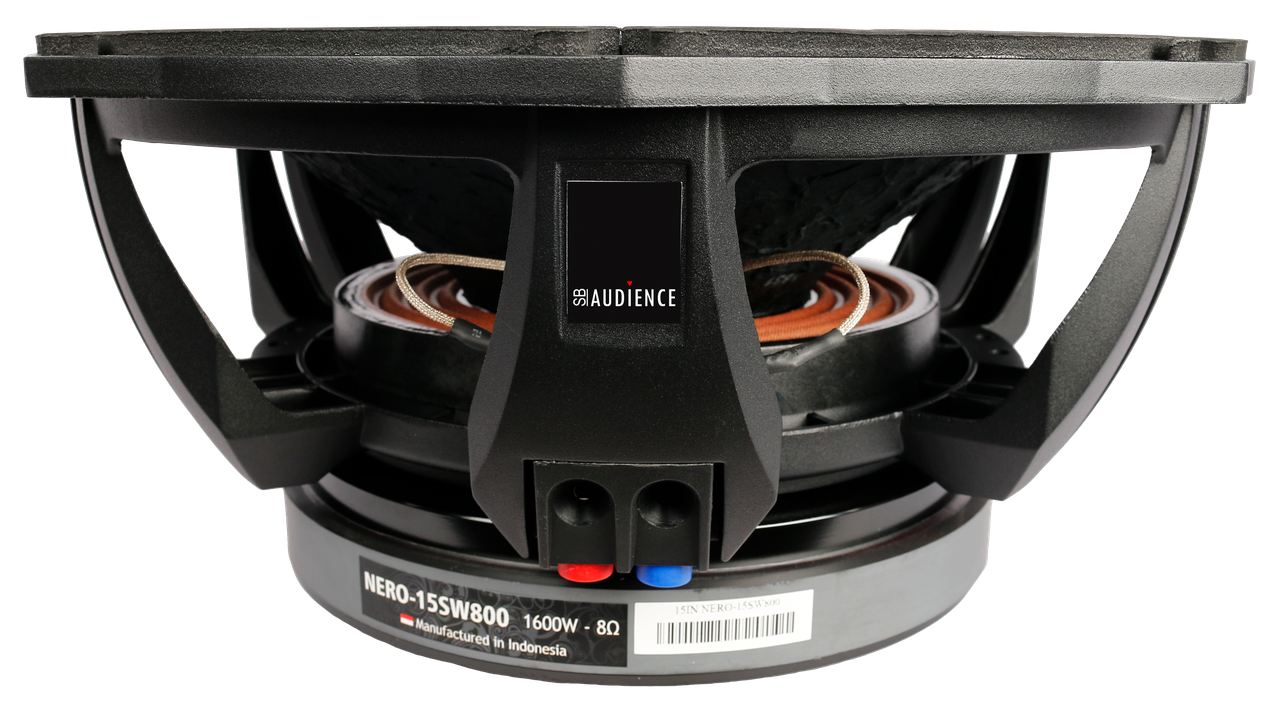

The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.
Proprietary cone paper material with silk cotton tree and manila pulp
Minimum damping fiber glass voice coil former
4.5" voice coil with APC (Advanced Polymer Coating)
Cast aluminium chassis
Vented back plate for reduced compression
Double spider for high stability suspension
Cooling device on head yoke for increased heat transfer
With well over 35 years of experience in professional sound reinforcement drivers, we strive to bring this know-how to the world with the most competitive high quality drivers on the market.
SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing. There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.
Possible box alignments:
Sealed box of 1.8 cubic feet for a 3dB down of 70Hz and 6dB down of 50Hz. You'll need to add some electronic boost to the woofer to extend the low frequencies if using it sealed.
Vented box of 4.0 cubic feet with (2x) 3" vent by 6" long for a 3dB down of 35Hz. 6dB down of 28Hz
