At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers.
The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.
Proprietary cone paper with silk cotton tree
Double spider high stability suspension
Cooling device on yoke for improved heat transfer
5" voice coil with APC (Advanced Polymer Coating)
Shorting ring in motor system for reduced distortion

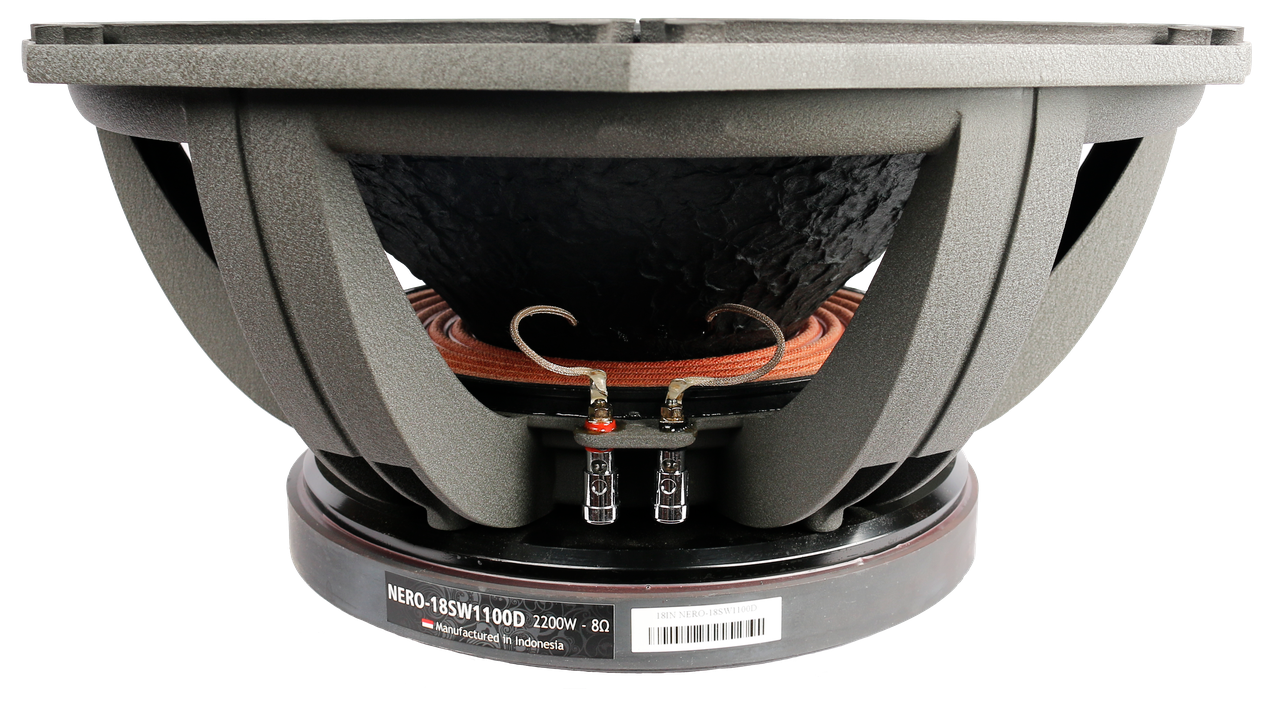

Cast aluminium chassis
With well over 35 years of experience in professional sound reinforcement drivers, we strive to bring this know-how to the world with the most competitive high quality drivers on the market.
SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing. There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.
Possible box alignments:
Sealed box of 2.75 cubic feet for a 3dB down of 85Hz, 6dB down of 55Hz, 9dB down of 45Hz and 12dB down of 34Hz. You'll have to add some boost electronically to use this woofer as a subwoofer in a sealed box.
Vented box of 4 cubic feet with (2x) 4" diameter vents by 8" long for a 3dB down of 40Hz and 6dB down of 34Hz.
