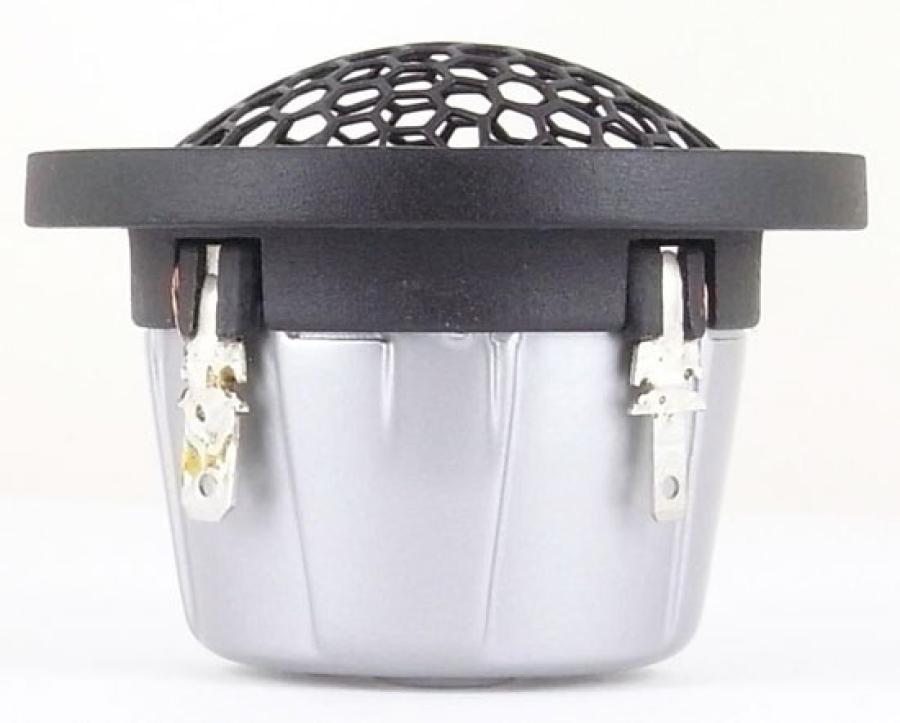

ScanSpeak Illuminator D2004/6020-00 Tweeter

ScanSpeak Illuminator D2004/602000 3/4" Soft Dome Tweeter -55mm- 4 ohm

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations.

The compact size (2.17" outer flange) is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

• 3/4" Soft Dome with Large Roll Surround for Wide Dispersion
• Patented Symmetrical Drive (SD-2) motor
• Ring Neodymium Magnet
• Aluminum Face Plate and Housing
• Sound Transparent Protective Grill
• Shallow Chamber
• 55.5mm (2.18") diameter flange with 29.3mm (1.15") depth
• Excellent choice for both home hi-fi and autosound applications

These Illuminator tweeters continue on with the heritage of the renowned Revelator series. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability. D2004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminium and designed with a contoured shape that functions as a heat sink in high power applications.
