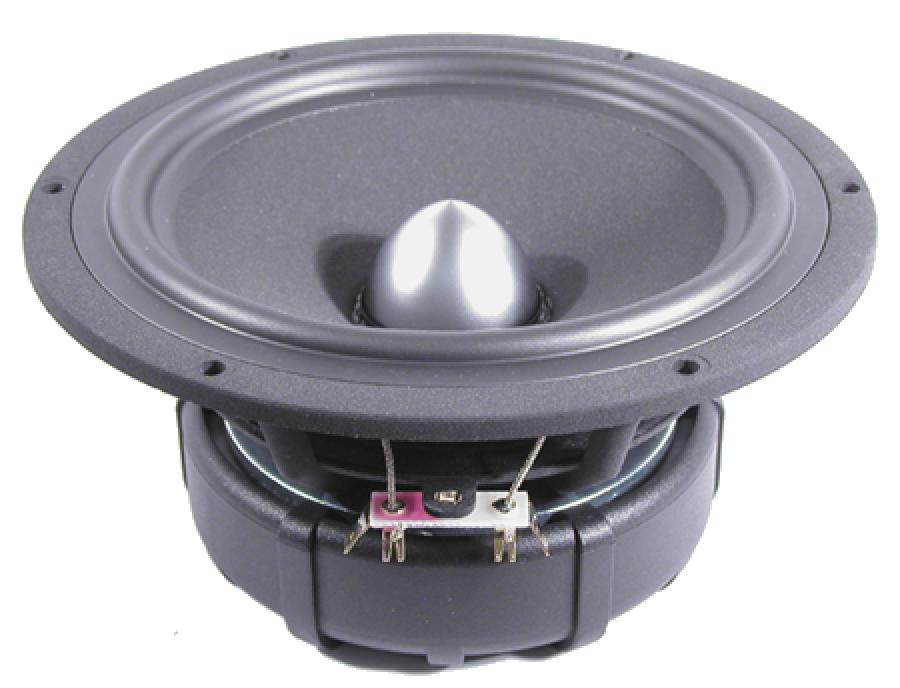

SEAS Excel W18NX-001 (E0042) Nextel Cone 7" Woofer
An adaptive rubber surround provides an ideal match to the cone over the total frequency range.
W18NX001 + T25CF001 2way Passive Crossover Design
- A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.
- A large magnet system with bumped back plate, together with a very long and light weight CCAW voice coil allow extreme coil excursion with low distortion and excellent transient response.
- Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.
- Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
- Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
Suggested box alignments:
Sealed box of 0.2 cubic feet for an F3 of 95Hz. 50% filling
Vented box of 0.4 cubic feet for an F3 of 60Hz. 1.5" diameter vent by 4.75" long
