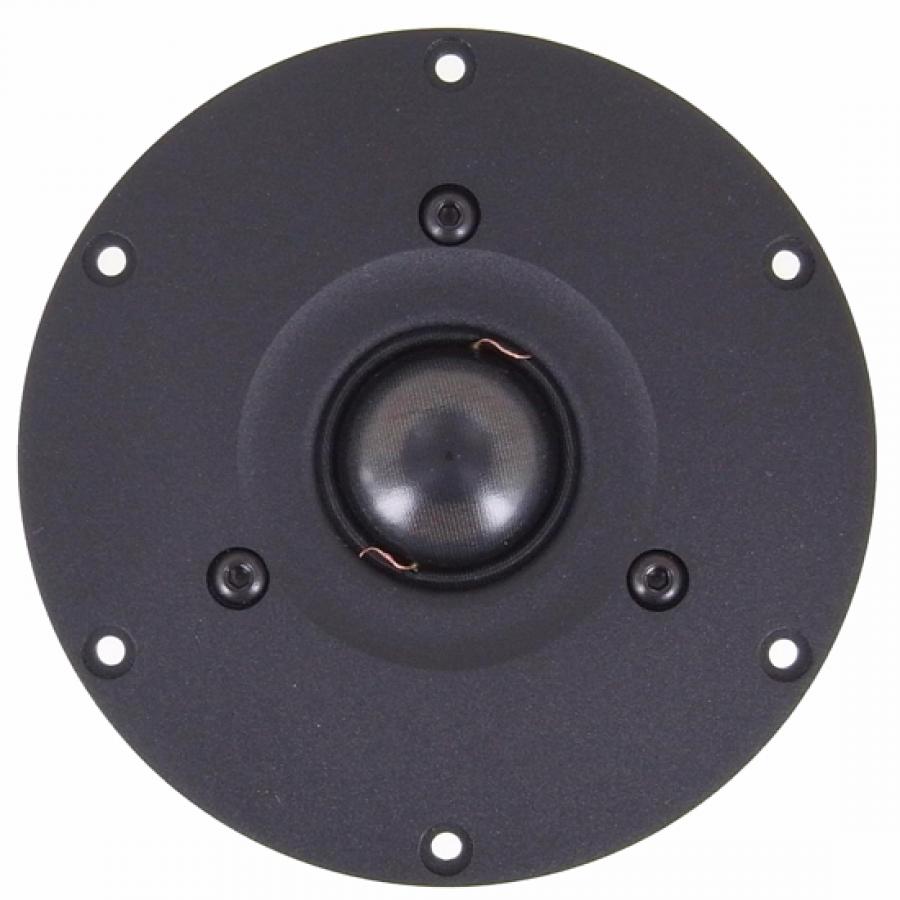

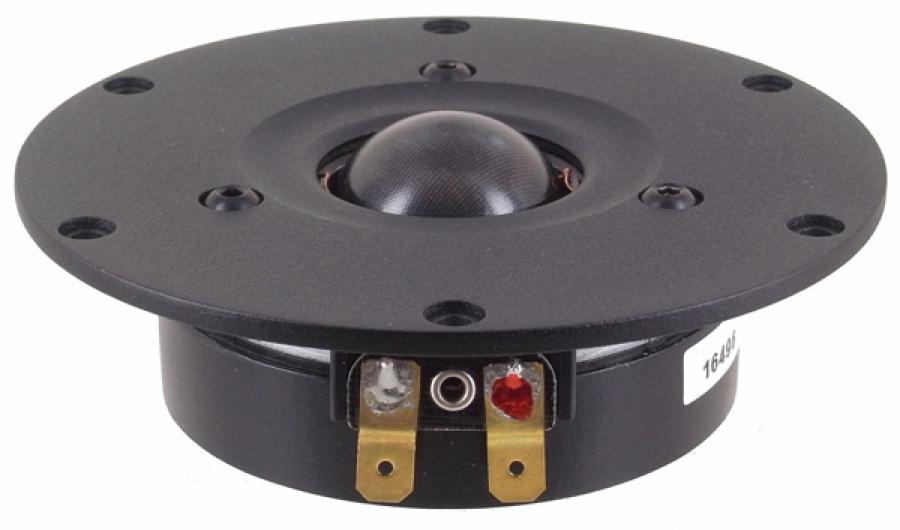

Morel Titanium Supreme TSCT1104 Tweeter - Each

Special order basis, please contact us

Morel Titanium Supreme TSCT1104 Tweeter - Each- 110mm- 4 ohm

Titanium voice coil formers improve the performance of a voice coil with greater strength and heat conduction.

Innovative engineering and an advanced approach to acoustic construction makes the Titanium Supreme TSCT1104 a superior high performance tweeter.

Spec sheet: Morel TSCT1104 Titanium Supreme Tweeter

Sold as each, but packaged in matched pairs. Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there at all times during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.

Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.

Copper shorting ring. There are several clear benefits:

1. Reduces impedance rise and increases sensitivity.

2. Reduces voice coil inductance, which minimizes non-linearity during operation.

3. Improves overall speaker performance across the frequency band.

Features:

• Underhung voice coil, 4 ohm
• 1⅛” Large Hexatech™ Aluminum voice coil
• Neodymium flat pancake magnet
• High power handling
• 110mm IDR™ (Improved Dispersion Recess)
• Titanium Voice Coil Former
• Replaceable Acuflex™ dome/coil assembly
• Aluminum die-cast rear chamber
• Copper shorting ring (in & out)
