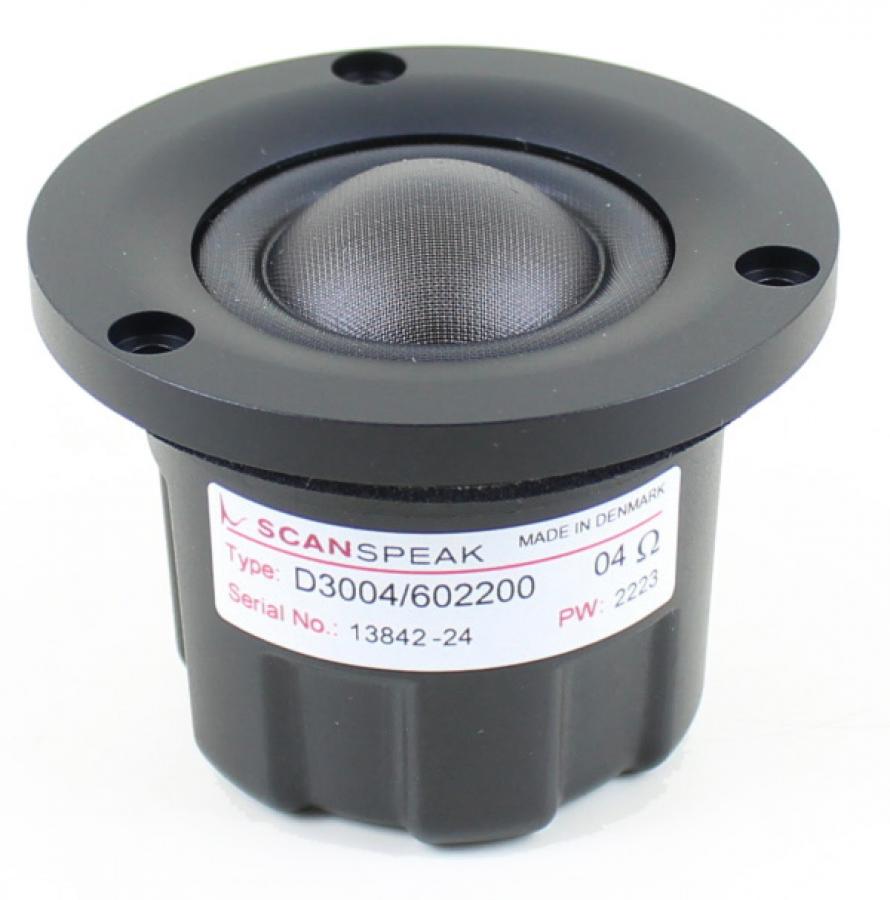

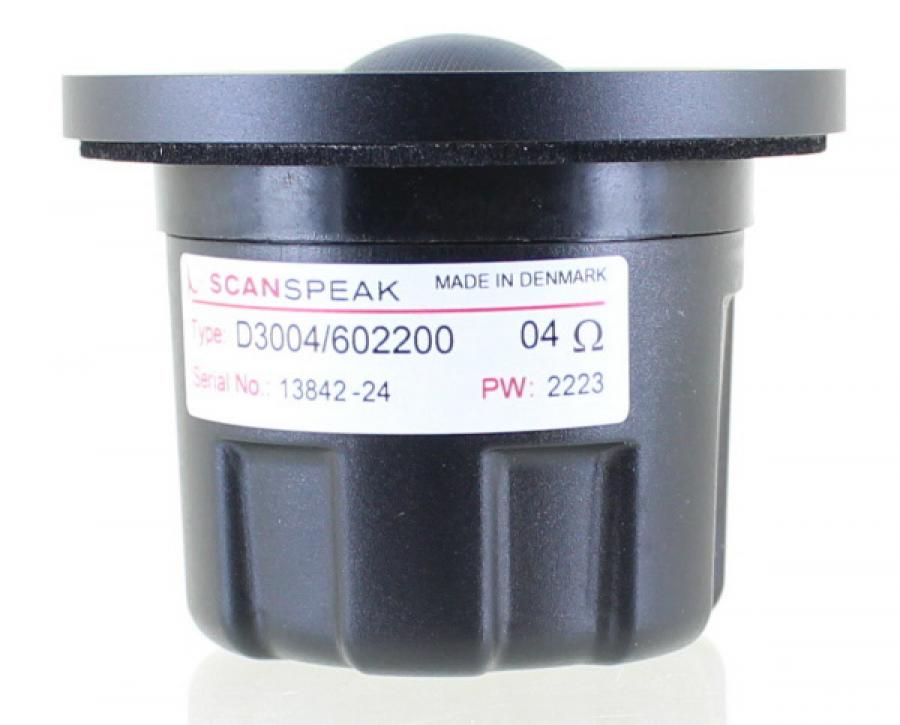

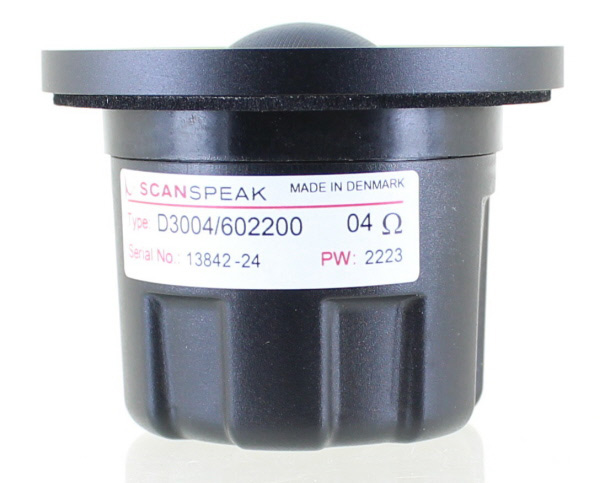

ScanSpeak Illuminator D3004/6022-00 26mm Dome Tweeter

ScanSpeak Illuminator D3004/6022-00 26mm Dome Tweeter- 62mm- 4 ohm- Neodymium

Spec Sheet PDF

This model replaces the older versions D3004/602000 and D3004/602010 which are being discontinued and phased out.

The Illuminator tweeters continue on with the heritage of the renowned Revelator series and provide superb vocal rendition and excellent imaging. The large-roll surround and textile dome diaphragm enable a flat frequency response with outstanding off-axis dispersion. The faceplates are die cast in aluminum for a beautiful look with maximum mechanical stability. This tweeter is optimized to fit into tight spaces such as compact cabinets and automotive trim pieces.

• Lower distortion and improved frequency response extending to beyond 40kHz due to optimized internal construction.
• Increased sensitivity (+1-1,5dB) due to higher grade neodymium magnet.
• Improved Q due to optimized internal volume in a new high precision reinforced polycarbonate rear chamber.
• A new smoother look with Black anodized aluminium Ø62mm faceplate.
• Better connection with new gold-plated terminals with improved heat resistance at soldering.

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

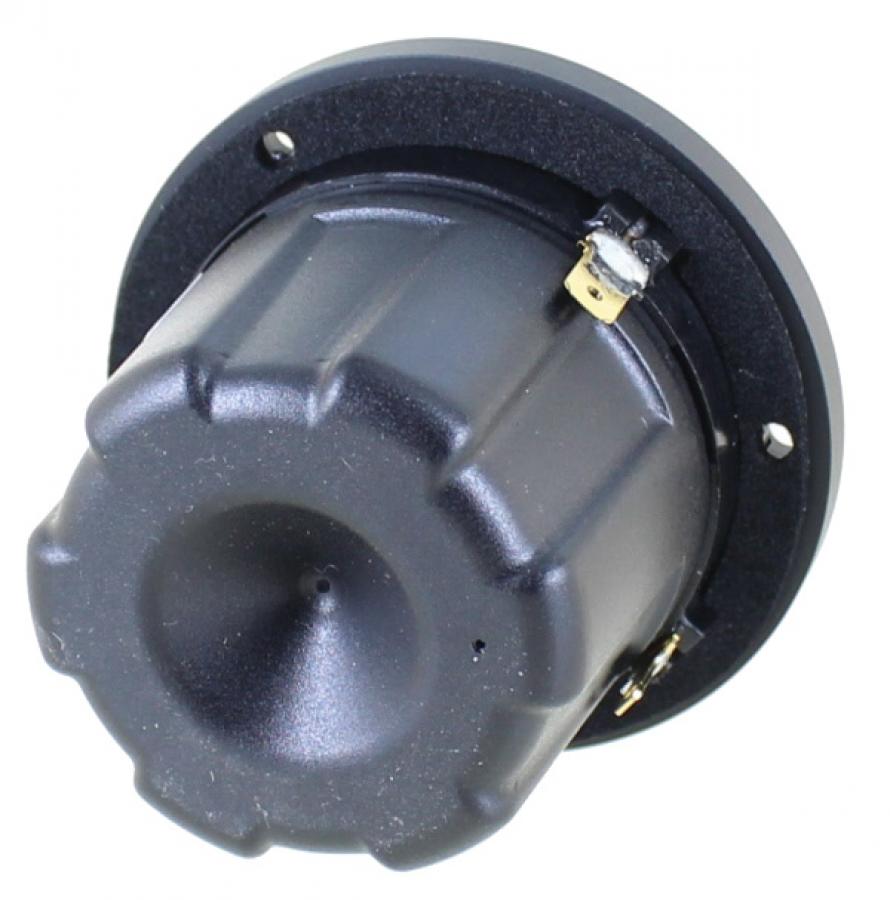

Note: The mechanical drawing does not show the notch-out requirement for the speaker wire tabs. They are not flush with the tweeter chamber. Take this into account or view the 3-D model on the Scan-Speak website for more detailed information.

The ScanSpeak Illuminator D3004/6022-00 exemplifies Danish engineering excellence. This sophisticated 26mm dome tweeter features advanced motor design and precision manufacturing for exceptional high-frequency detail.
