Scan Speak Illuminator D3004/6062-00 TPCD Dome Tweeter

Manufacturer: ScanSpeak

Be the first to review this product

Product ID: D3004/6062-00

$248.00

Add to wish list E-mail to a friend

Overview

Scan Speak Illuminator D3004/6062-00 TPCD Textreme Dome Tweeter- 62mm - 4 ohm

Scan Speak Illuminator D3004/6062-00 TPCD Dome Tweeter- 62mm - 4 ohm
TPCD technology

Spec Sheet PDF

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. In continuation of the updating of our compact Illuminator tweeters we are now adding a completely new family member. The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

The new D3004/606200 features a bespoke tailored TPCD (Thin-Ply Carbon Diaphragm) applying the latest technology tweaks in order to create the mechanical properties of the carbon fiber that will make the tweeter a true Scan-Speak driver fitting the compact Illuminator platform. The ultra lightweight, very high stiffness and very well controlled breakup patterns minimizes distortion and maximizes linearity, offering natural and – true to live – sound reproduction.

Bespoke TPCD diaphragm.

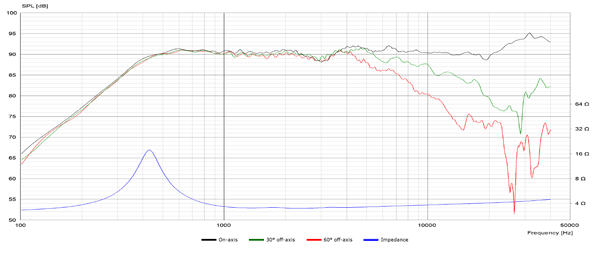

Low distortion and very linear frequency response extending to beyond 50kHz.
Black anodized aluminium Ø62mm faceplate.
Gold-plated terminals with high heat resistance at soldering.

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. TPCD (Thin-Ply Carbon Diaphragm) dome, applying the latest technology tweaks in order to realize the mechanical properties of carbon fiber that makes the tweeter a true Scan-Speak driver.
