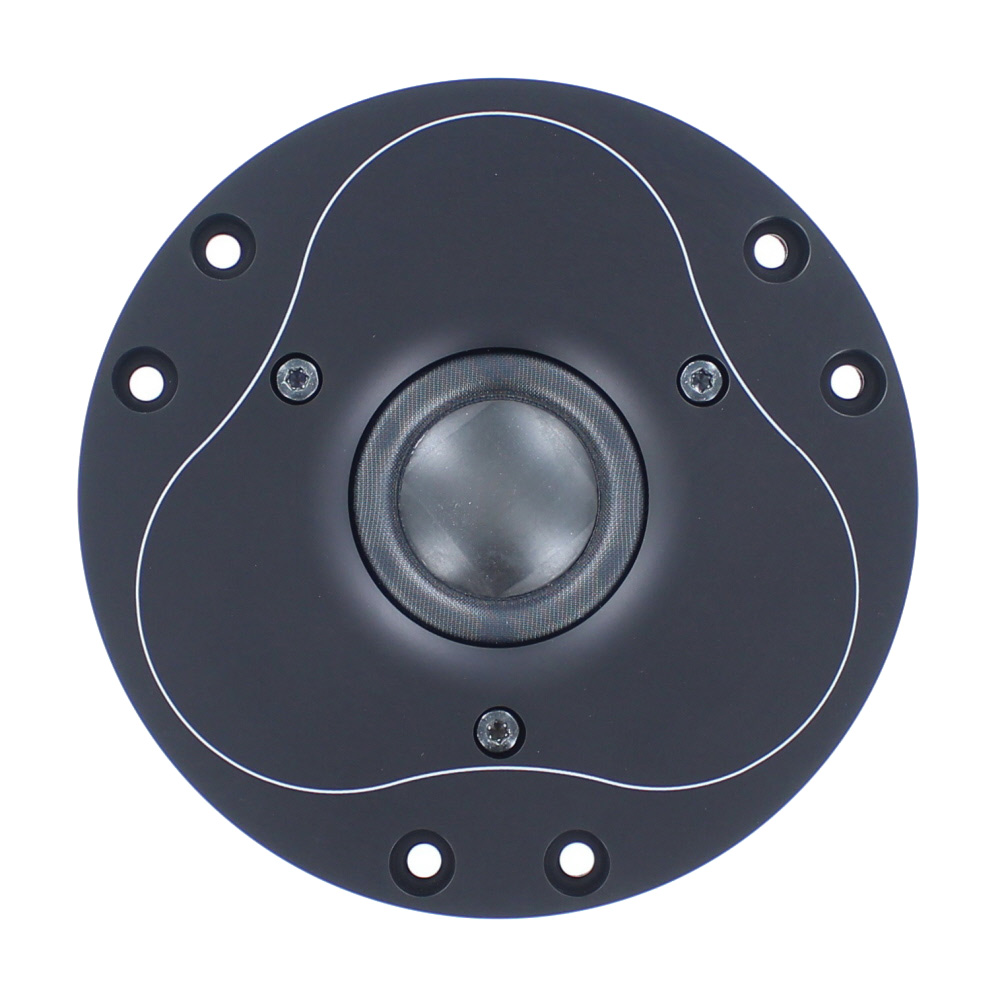

ScanSpeak Illuminator D3004/6660-00 AirCirc TPCD Dome Tweeter- 4 ohm

ScanSpeak Illuminator D3004/6660 AirCirc TPCD Dome Tweeter- 104mm- 4 ohm
TPCD technology

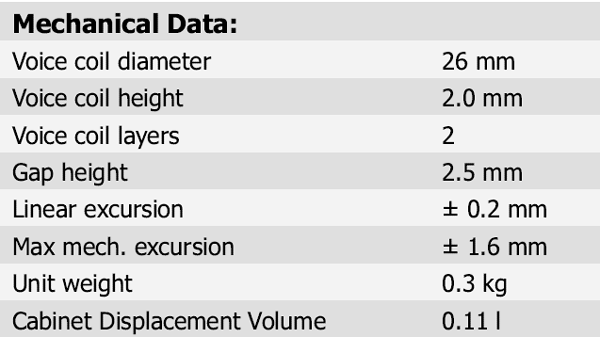

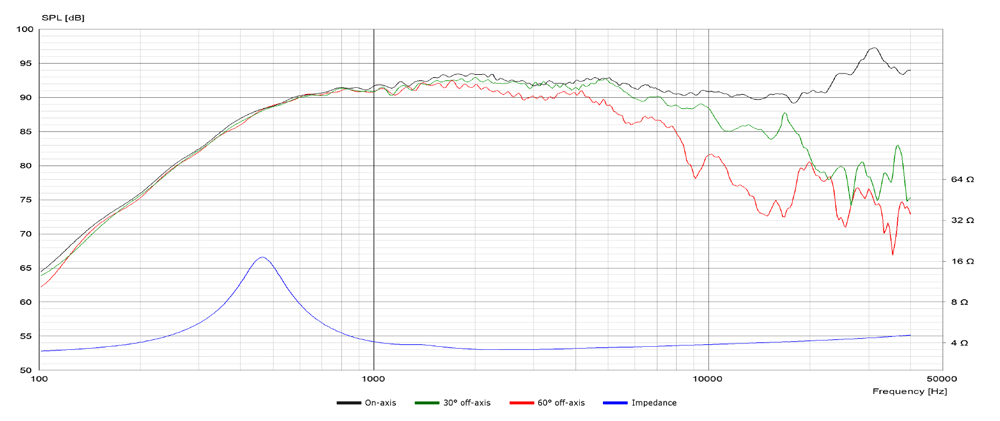

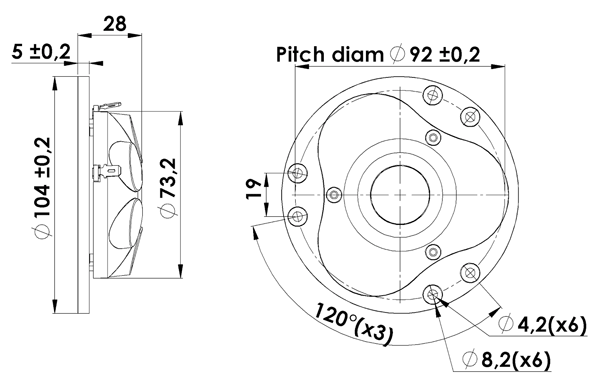

Spec Sheet PDF

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. TPCD diaphragms are constructed using multiple thin layers of carbon fiber that are stacked and bonded together to form a lightweight and stiff diaphragm. Each layer is engineered to cover the full cone or just some small areas, so that they combined give stiffness to the areas we want stiffness and softer with more damping where that is needed. This construction technique results in a material that is much stiffer than traditional diaphragm materials like paper or plastic, while still maintaining a low mass and good internal damping.

• Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
• AirCirc Motor Design w. 6 Neo magnets
• Patented Symmetrical Drive (SD-2) motor
• Large Roll Surround f. Wide Dispersion

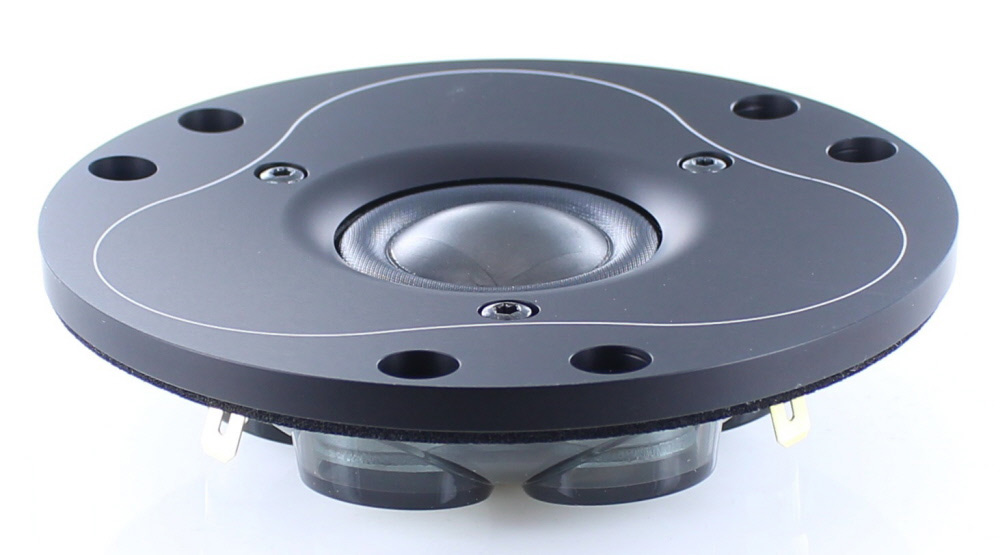

• Black Anodized machined Faceplate

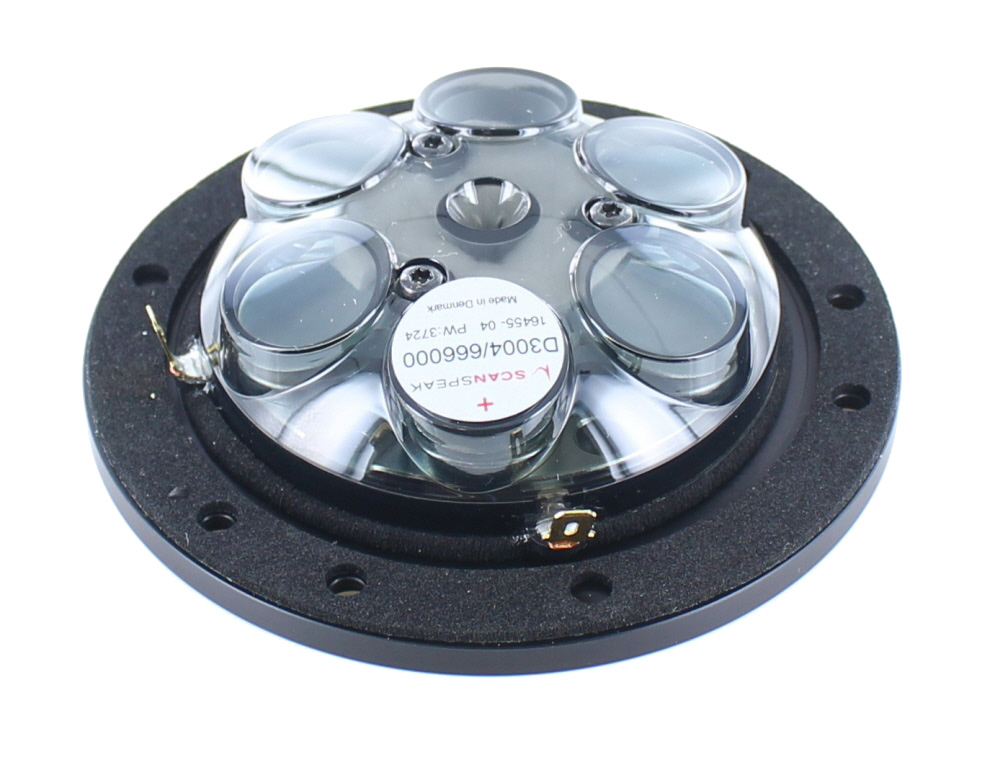

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations.  The unique AirCirc Magnet System and its rear chamber eliminate reflections and resonances that compromise the performance of traditional motors. TPCD (Thin-Ply Carbon Diaphragm) dome, applying the latest technology tweaks in order to realize the mechanical properties of carbon fiber that makes the tweeter a true Scan-Speak driver. The ultra lightweight, very high stiffness and very well controlled breakup patterns minimize distortion and maximize linearity, offering natural and – true to live – sound reproduction.

Scan Speak DIY kits using this Tweeter:

Jenzen Illuminator (D3004/660000, 18WU/8741T00, 26W/8861T00)
Ellam FLEX 3W (D3004/660000 or R3004/662000, 15W/8530K00, 22W/4851T00)
Ellam Flex (D3004/660000 or R3004/662000, 15W/8530K00)
Illumina 66 (D3004/660000, 18WU/4741T00)
ScanSpeak Ekta-7741 (D3004/660000, 12MU/8731T00, 18WU/8741T00)
ScanSpeak Illuminator-71 (D3004/660000, R3004/662000, 18WU/4741T00)
ScanSpeak Revelator-3WC
(D3004/660000, 15M/8631G00, 22W/4851T00)
ScanSpeak Revelator-66 (D3004/660000,18W/4531G01)
ScanSpeak Revelator-851 (D3004/660000, 15M/8631G00, 22W/4851T00)
