Satori Raiya TX Center Channel Kit
Overview
Satori Raiya TX Center Channel Kit
Black satin & white satin finished enclosures are now available!
Introducing Raiya Tx — a new center channel designed to integrate seamlessly with the TeXtreme lineup, including Ara Tx, Rinjani Tx, and Sasandu Tx. Engineered for uncompromised full‑range performance and exceptional vocal intelligibility, Raiya Tx delivers dialogue with remarkable precision.
The vertically aligned midrange–tweeter eliminates the comb‑filtering artifacts that plague conventional horizontal center-channel driver arrangements, producing a cleaner, more natural presentation across a wide listening area. Designed expressly for high‑end home theater systems, Raiya Tx ensures every word is conveyed with intent and accuracy.
With Raiya Tx, your cinematic soundscape gains a true focal point — refined, articulate, and perfectly matched to the TeXtreme family.
Factory assembled crossover uses Jantzen components throughout, and is pre-wired with quick connects. No soldering is required.
Cabinet comes completed with high end fit and finish. Kit assembly only requires a screwdriver or drill and M4 bit.
Price shown includes a 10% discount on all of the drivers.
Kit page on SB Acoustics website here.
Cabinet drawing (pdf)

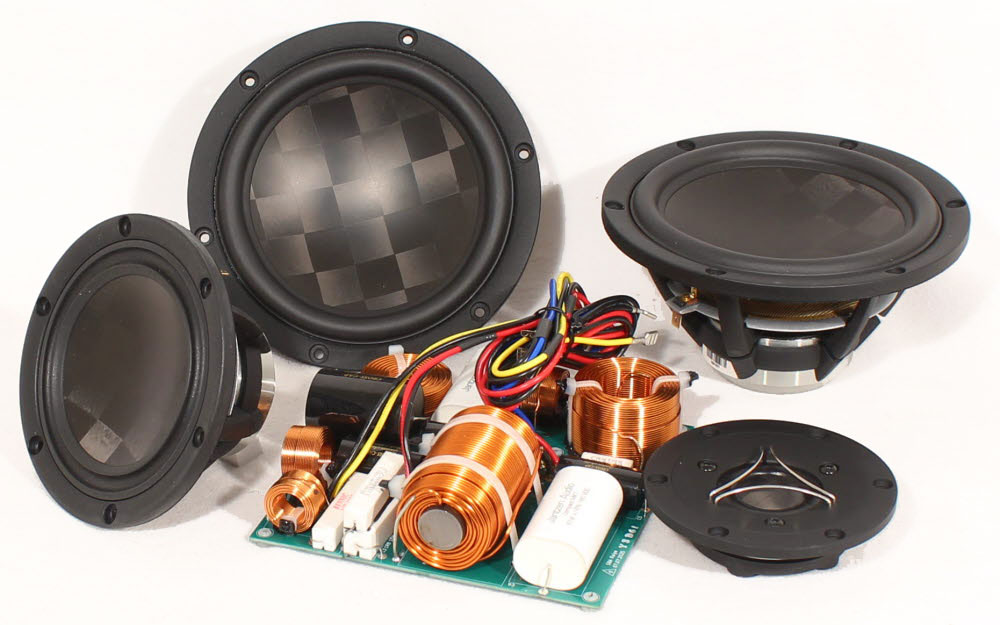

Each Raiya TX Kit Includes:
- (1) Satori TW29TXN-B-8 TeXtreme Dome Tweeter
- (1) Satori Textreme MR13TX-4 5" Midrange
- (2) Satori 6" MW16TX-4 TeXtreme Cone Woofers in SERIES for 8 ohm

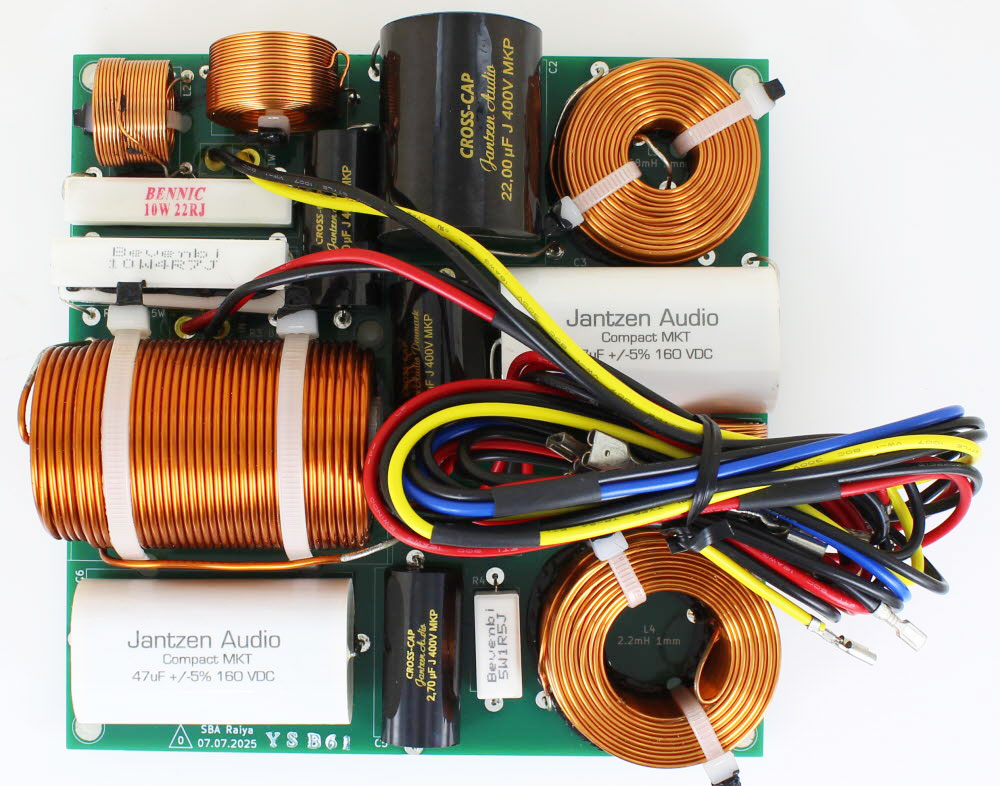

- (1) Assembled & Pre-wired Crossover (as pictured)
Optional Raiya TX Cabinet Includes:
- Premium fully finished enclosure in choice of black or white satin
- Dual flared port tubes
- High quality gold plated binding posts on aluminum mounting plate
- Dacron internal damping material
- Driver mounting hardware
- Precision fit magnetic grill covers for all drivers
- Free shipping within the contiguous 48 states
Specs
- Frequency range: 45 – 32000 Hz
- Sensitivity ( 2.83V / 1m ): 88 dB
- Nominal impedance: 8 Ω Max SPL: 105 dB
- Recommended amplifier: 30 – 120 W
- Crossover frequency: 450 Hz & 2800 Hz
- Speaker type: 3-way center speaker
- Enclosure type: Bass reflex (woofer), sealed (midrange)
- Port tuning frequency: 36 Hz
- Drive units: SATORI TW29TXN-B-8, 5″ SATORI MR36TX-4 & 6½″ SATORI MW16TX-4 (x2)
- Cabinet material: 15 mm & 18 mm MDF
- Speaker dimension (HxWxD): 270 x 786 x 342 mm (10.6 x 30.9 x 13.5 inch)
- Net weight: Full assy 23.6 kg (52 lb)

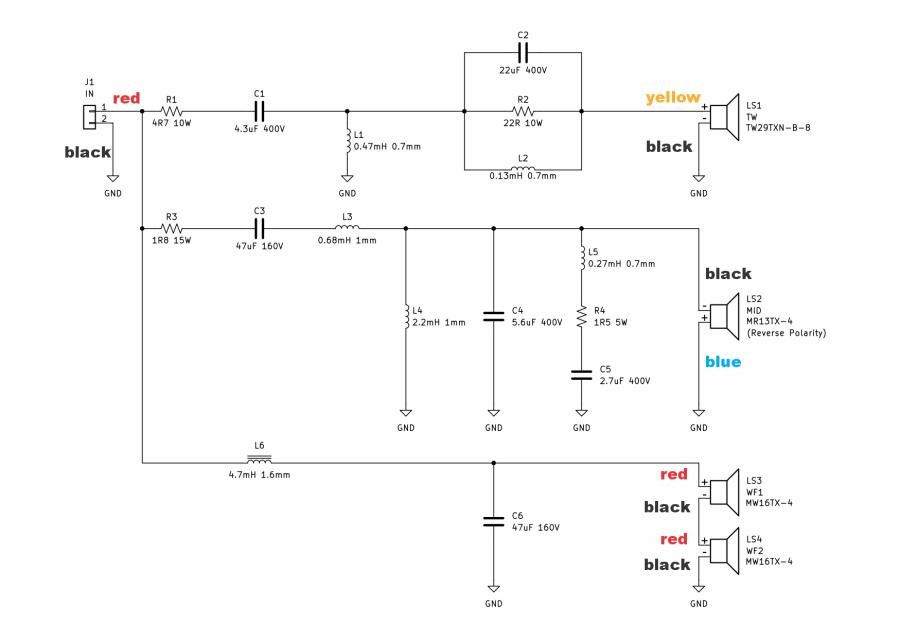

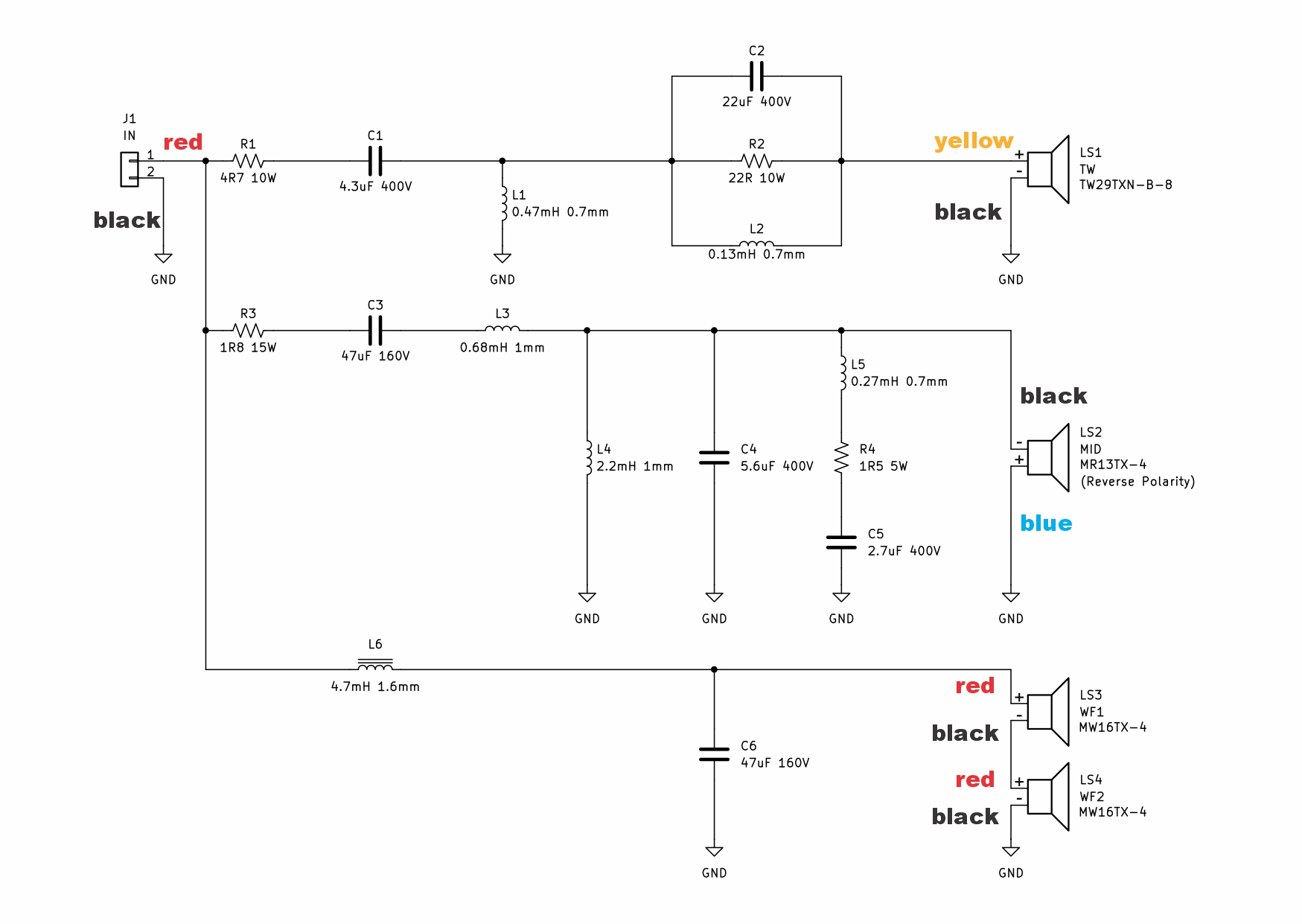

Raiya Crossover Schematic & Hookup

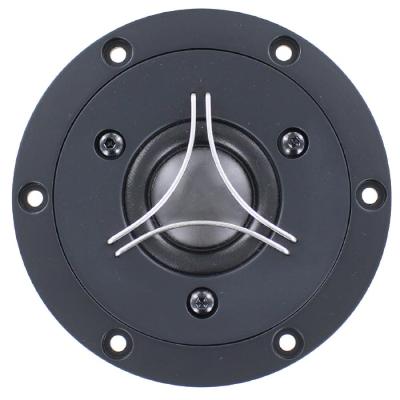

Satori TW29TXN-B-8 TeXtreme Dome Tweeter

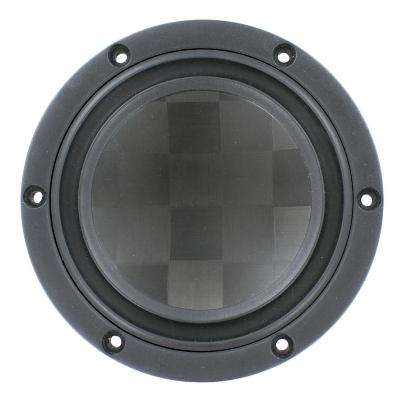

Satori Textreme MR13TX-4 5" Midrange

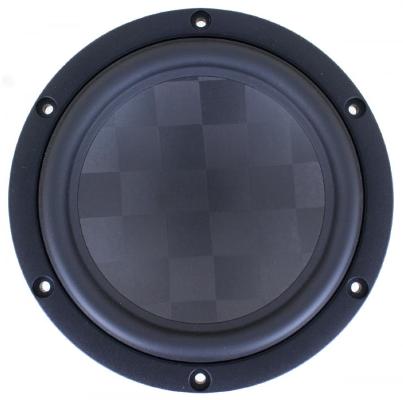

Satori 6" MW16TX-4 TeXtreme Cone Woofer

Optional Flared Port Kit (already included with cabinets)
