ScanSpeak Revelator B1371 3-Way Speaker Kit by Peter Noerbaek
Price shown is for a PAIR
This latest in the coveted line of speaker kits from PBN Audio is already making waves within the audiophile community – and rightly so. Featuring superlative drivers from ScanSpeak, an international leader in the realm of high-end sound systems, these elegantly simple and lustrously gorgeous speakers define the most basic premise of stereophonic excellence: It’s all about what you hear. PBN Audio has devoted decades of engineering prowess to designing systems that completely serve the music. The B1371 delivers on that promise.
The B1371 incorporates three of the latest cutting edge drivers from the Revelator line. Holding down bass duty is the robust 32W/4878T-01 13", Scan-Speaks most powerful woofer to date. Midrange is covered by the high efficiency 18M/4631T 7" sliced paper cone mid driver. High frequency reproduction is carried by the top of the line D2908/7140 1"Beryllium dome tweeter.
Scan-Speak B1371 PDF Brochure
Specifications
Assembled Crossover Information

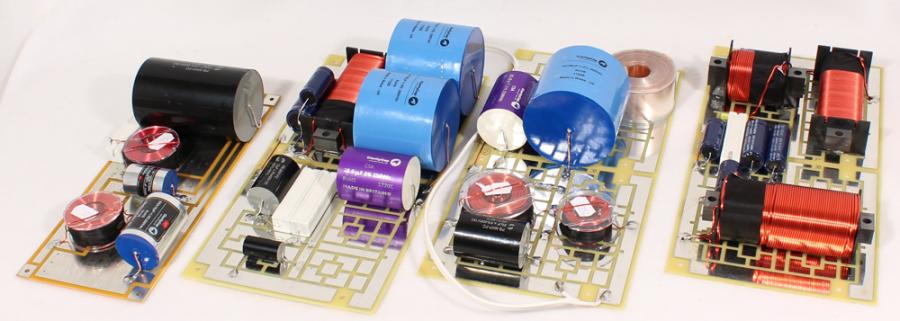

Madisound hand assembles each crossover to order. We use premium parts throughout to compliment these incredible Revelator drivers. All parts are terminated with 3% silver solder to our silver tinned copper circuit boards.
The series tweeter circuit comes standard with ClarityCap CSA capacitors, with an upgrade option to Mundorf MCap Supreme caps also available. The shunt circuit uses a Solen FastCap for the large 150 mfd value required.
The series midrange circuit comes with ClarityCap PX capacitors run in parallel to achieve the required 120 mfd & 220 mfd values. The main series inductor is a Goertz Copper Foil 0.75mH 14 awg.
The series woofer circuit utilizes ultra low resistance Sledgehammer 15 awg Steel Laminate inductors.
Please note the crossover boards are large: (3) 11" x 5.6", (1) 9.55" x 4" per speaker. Take this in consideration when constructing your cabinets, make sure to allocate space for them inside.
Crossovers are also available for purchase seperately (select from the drop down menu above).
*Pictures of tweeter crossover shows now retired ESA line. Standard crossover is now built with the highly regarded CSA line.
Measurements
Crossover Schematic
Cabinet Plans
Pictures of B1371 Cabinet During Construction (PDF)
