Satori Sasandu 3-Way Speaker Kit - Pair
Manufacturer: SB Acoustics
Product ID: Sasandu Kit
Price:
$2,742.00
Overview
SB Acoustics Sasandu Kit
Satori Sasandu 3-Way Speaker Kit - Pair
High gloss black & high gloss white cabinets in stock.
3-way Satori Based Tower Kit with Beryllium Tweeter and optional finished cabinets
Sasandu, also called Sasando, means “sounded instrument” and is a traditional Indonesian harp-like stringed instrument with a body made from bamboo and native type of leaves. The Sasandu is a no-compromise speaker kit designed to reproduce music as faithfully as possible.
High gloss black & high gloss white cabinets in stock.
3-way Satori Based Tower Kit with Beryllium Tweeter and optional finished cabinets
Sasandu, also called Sasando, means “sounded instrument” and is a traditional Indonesian harp-like stringed instrument with a body made from bamboo and native type of leaves. The Sasandu is a no-compromise speaker kit designed to reproduce music as faithfully as possible.

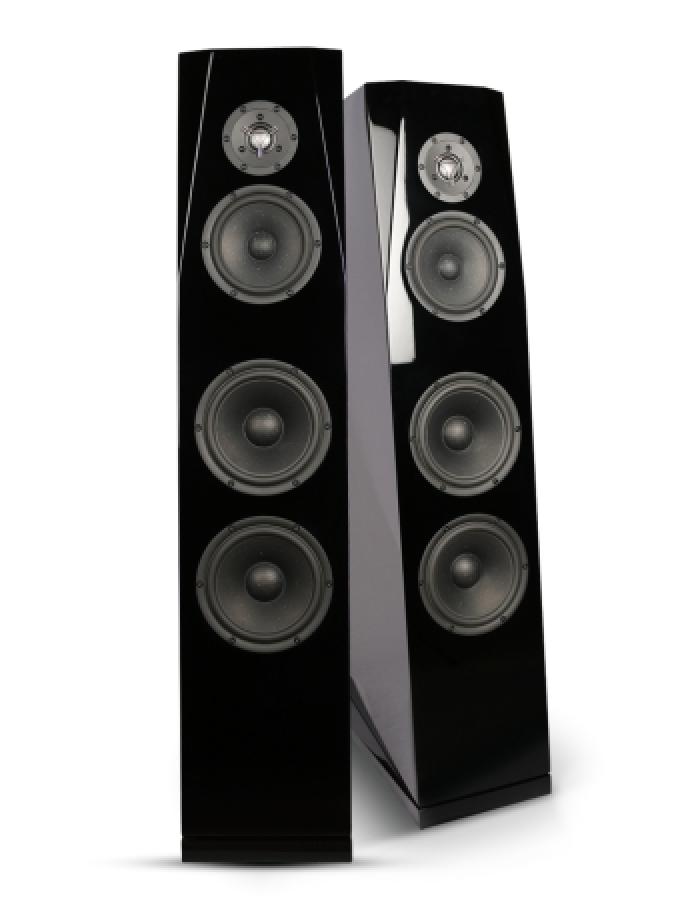

The Sasandu is a large 3-way floor standing speaker showcasing the advanced SATORI 29mm Neodymium TW29BN-B-8 Beryllium tweeter. The midrange is covered by the 6½” SATORI MR16P-4 Egyptian Papyrus cone midrange featuring a dedicated large sealed midrange chamber for low compression and wonderful open midrange reproduction. Each speaker is solidly anchored in the lower octaves by two 7½” SATORI MW19P-8 for a deep, tight, and satisfyingly musical bass. Madisound is not stocking the natural color cone version of the midrange or woofers at this time.
The SASANDU’s faceted baffle and optimised tweeter position to lower diffraction, in addition to an inclined cabinet to time-align the drivers result in state-of-the art-imaging. The large high-quality crossover has its own chamber behind the removable plinth.
The optional cabinets are masterfully crafted from 28, 18, and 15 mm MDF with strategic internal bracing to distribute cabinet vibrations and lower sound coloration. A slanted internal partition reduces internal standing waves and the oversize 75 mm port at the rear ensures uncompressed bass even at very high listening levels.
Madisound stocks the high gloss black cabinets. Other colors/finishes are available by special order, lead time is approximately 4-5 months.
Price shown includes a 10% discount on all drivers.
View the Sasandu product page on the SB Acoustics website here.
View the Sasandu cabinet details here.
Vew the Sasandu User Manual w/ complete assembly instructions here.
Read review of Sasandu kit here.

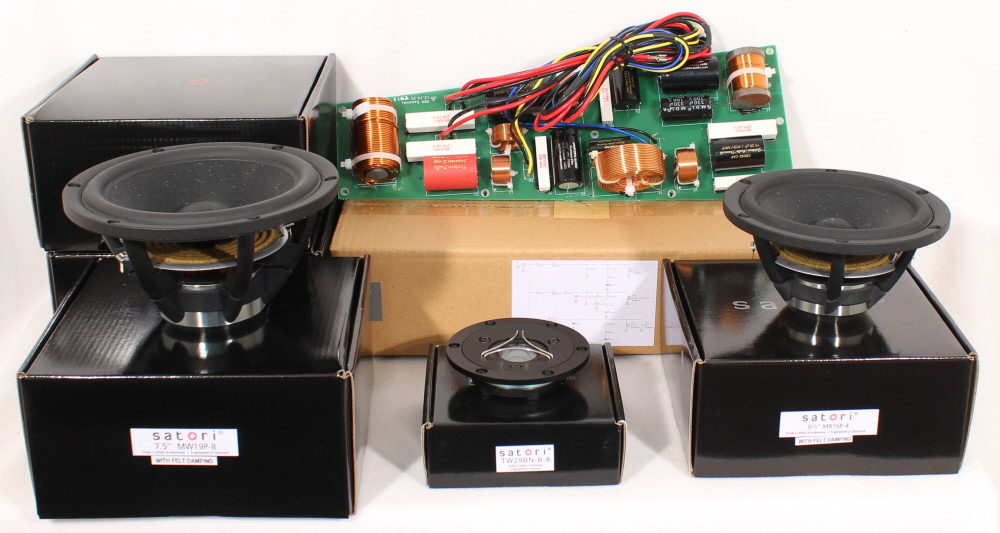

Each Sasandu Kit Purchase Includes:
- (2) Satori TW29BN-B-8 Beryllium Dome Tweeters
- (2) Satori MR16P-4 Egyptian Papyrus Cone Mids
- (4) Satori MW19P-8 Egyptian Payrus Cone Woofers

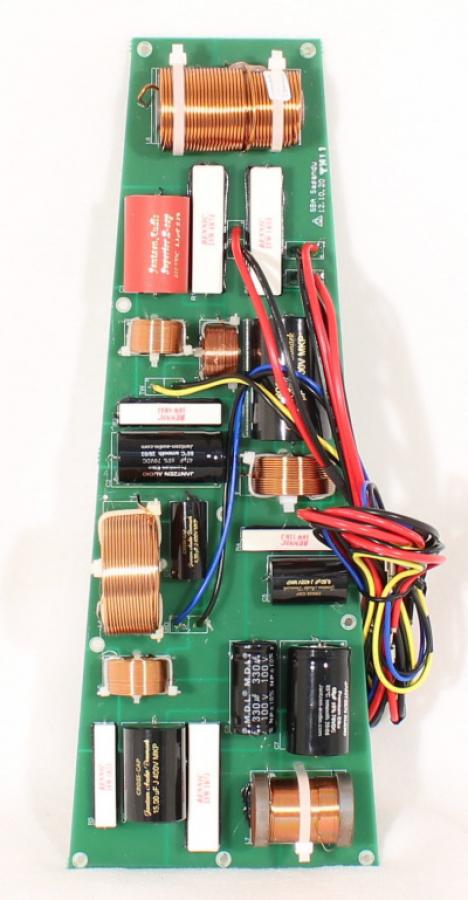

- (2) SB Acoustics Factory Assembled Crossovers (as pictured)
Sasandu Kit Options:
- Fully finished high gloss cabinets
- Crossovers only
- See drop down menu
Specifications:
- Frequency Range: 32 – 32000 Hz
- Sensitivity ( 2.83V / 1m ): 89 dB
- Nominal Impedance: 4Ω
- Max SPL: 108 dB
- Recommended Amplifier: 100 – 200+ W
- Crossover Frequency: 480/2800 Hz
- Enclosure Type: Bass reflex (woofer), sealed (midrange)
- Port tuning Frequency: 32 Hz
- Cabinet Dimensions: 43.3" tall x 9" wide x 18.9" deep + recline
Sealed chamber 18.1 liters
Vented chamber 50.5 liters
