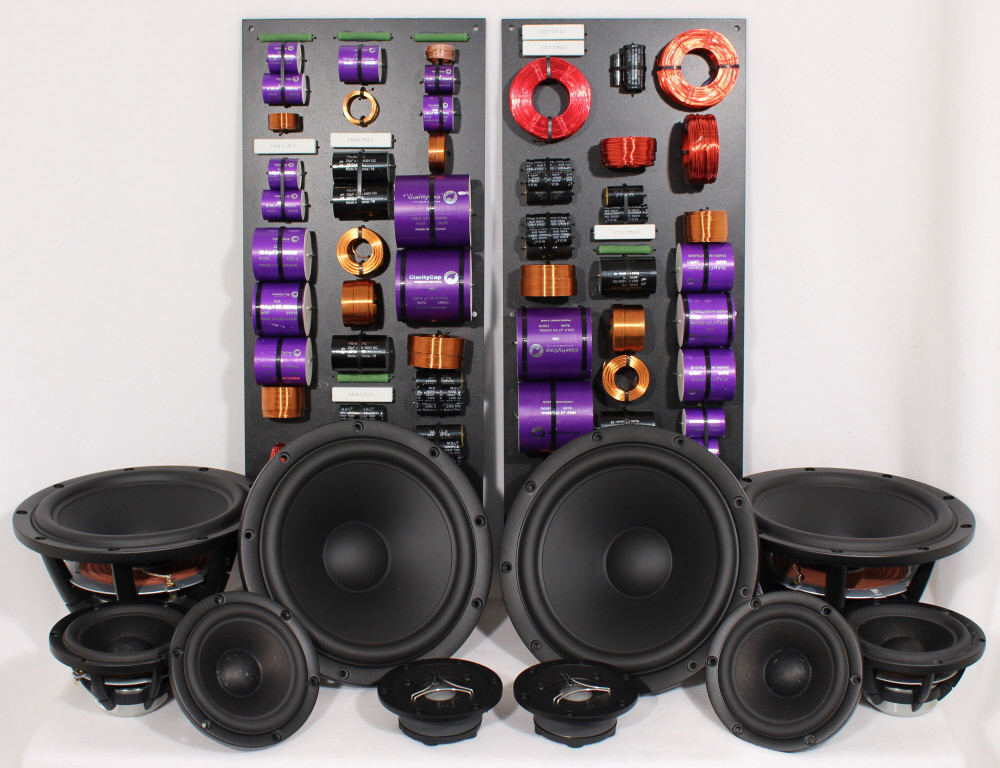

Satori SBA 951 Speaker Kit by Peter Noerbaek Photo

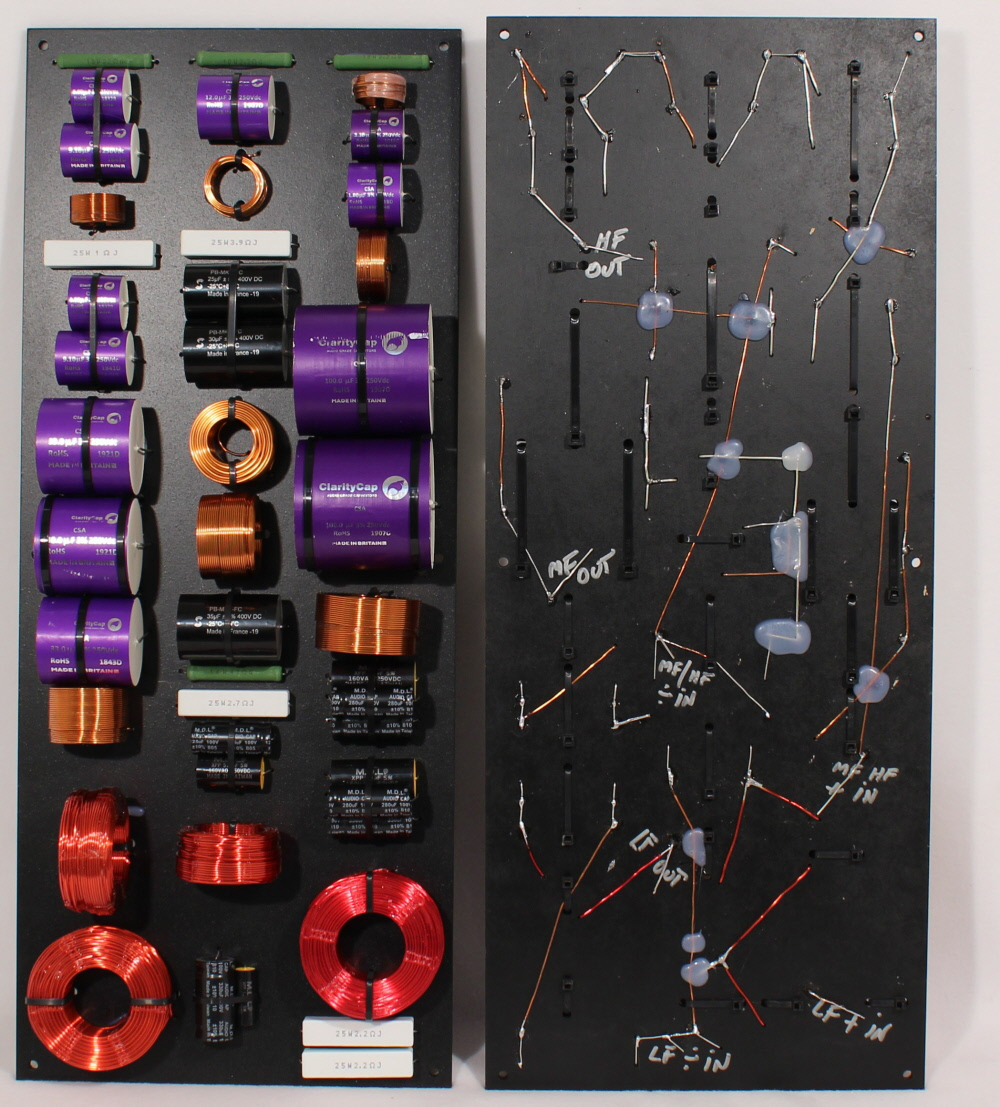

Satori SBA 951 Speaker Kit by Peter Noerbaek Crossovers

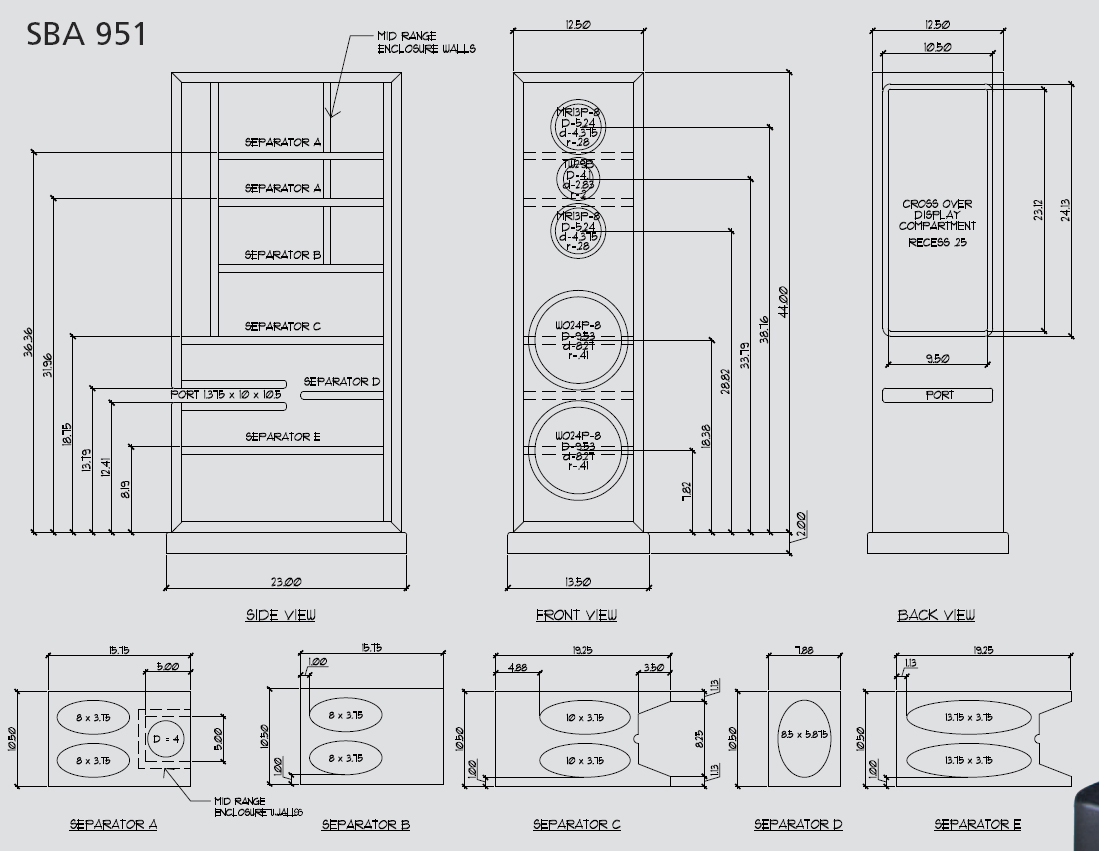

Satori SBA 951 Speaker Kit Cabinet Drawing

Satori SBA 951 Speaker Kit by Peter Noerbaek - Pair

Manufacturer: SB Acoustics

Be the first to review this product

Product ID: SBA-951

$3,988.00

Add to wish list E-mail to a friend

Satori SBA 951 Speaker Kit by Peter Noerbaek - Pair

The extraordinary lineup of build-it-yourself speaker kits from PBN Audio is now enhanced by the addition of this five-driver wonder. Conceived out of the special partnership with renowned manufacturer SB Acoustics, the SBA 951 features top-line Satori drivers and matching electronics. The acoustic balance is stunning; the electronics, state of the art. This design is available as a parts kit (no cabinets) from Madisound or as masterly crafted finished speaker from PBN.

The SBA 951 is a full size dual woofer dual midrange 3-way speaker featuring a Beryllium dome tweeter. Each speaker utilizes a pair of WO24P-8 9.5" Egyptian papyrus cone woofers, along with two MR13P-8 5" Egyptian papyrus cone mids, and the TW29B-B Be dome tweeter.

PBN SBA 951 PDF Brochure

Each Satori SBA 951 Kit Includes:

(2) TW29B-B Beryllium Dome Tweeters
(4) MR13P-8 5" Egyptian Papyrus Cone Midrange Drivers
(4) WO24P-8 9.5" Egyptian Papyrus Cone Woofers
(2) PBN Point-to-Point Professionally Assembled Crossovers (details below)
Crossovers are built to order ~ Please allow a 2 week lead time once your order is placed

Optional Accessories Package Includes:

(2) TD-CUP - Dual binding post input cup
(20ft) Supra Classic 2.5 - 13 awg tinned oxygen free copper internal speaker wire (to x-over & woofers)
(20ft) Supra Classic 1.6 - 15 awg tinned oxygen free copper internal speaker wire (to mids & tweeter)
(1.5lb) Acousta-Stuf - fluff & fill mid chamber & lightly fill woofer chamber
(4pcs) Foam Sheet - cut & line internal walls of woofer chamber
(1) GOOP - adhesive for foam sheet
(12) QC205B Quick Connects - for - woofer, mid & input cup tabs
(6) QC205R - for + tweeter & input cup tabs
(2) QC110B - for - tweeter tabs
(8) QC250R - for + mid & woofer tabs
(36) OXSOCKET8X1 - mount tweeter & mids to baffle
(36) OXSOCKET10X1 - mount woofers to baffle
(8) OX6OVAL3/4 - mount input cup to cabinet

Price shown includes a 10% discount on all drivers and accessories package.

Specifications

3-Way 5-Driver MTMWW Floor Standing Tower
Cabinet Dimensions: 46" tall x 12.5" wide x 23" deep
Sensitivity: 90 db
Impedance: 4 ohm
Frequency Response: 30 Hz (-3db) to 40 kHz
Crossover Frequencies: 200 Hz / 1.5 khz
Cabinet Note: External walls are all 1". Internal braces and internal front wall is 3/4"

Kit pricing shown includes a discount on all drivers and accessories package. Crossovers are available for separate purchase from the drop down menu.

Assembled Crossover Information

Each crossover is hand assembled by Peter Noerbaek with point-to-point wiring and premium parts. The crossover board is installed into the rear of the speaker cabinet for viewing pleasure.

The series tweeter and midrange circuits utilize our go-to ClarityCap CSA capacitors. All inductors are air core and custom wound to the exact mH and DCR value called for in this highly advanced design. Mundorf Mresist MOX resistors are used on the series tweeter section.

Crossovers are also available for purchase separately (select from the drop down menu above).

Measurements

Crossover Schematic

Assembled Crossovers

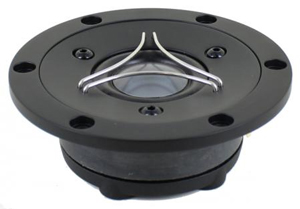

Satori TW29B-B Beryllium Dome Tweeter

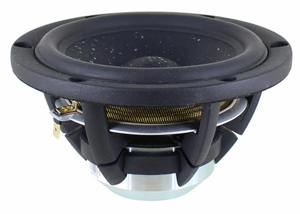

Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

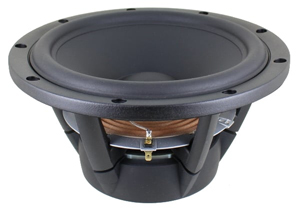

Satori WO24P-8 9.5" Egyptian Papyrus Cone Woofer

PBN Completed Speakers
