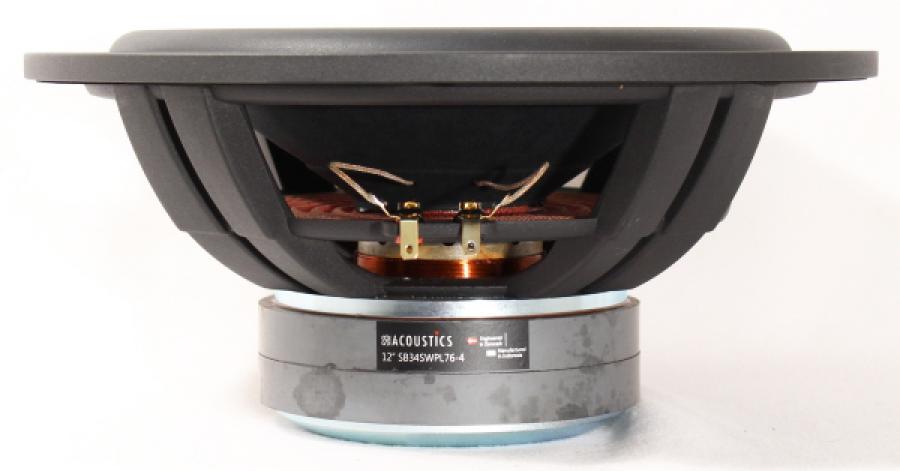

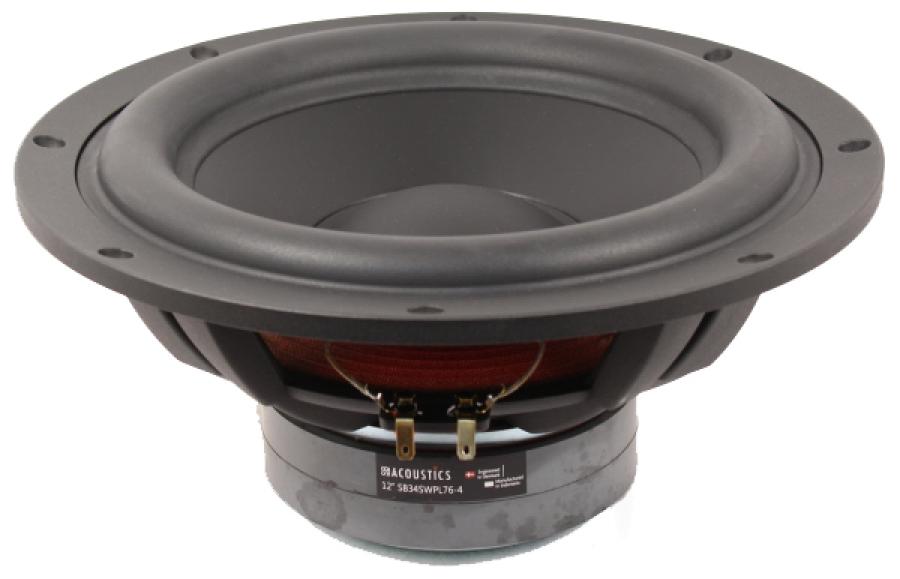

SB Acoustics SB34SWPL-76-4 12" Subwoofer
New Paper cone sub from SB! Low resonance, reinforced cone and high power handling make this a versatile subwoofer driver for home or car.
Speaker Type: Paper Cone Subwoofer
Nominal Diameter: 34cm
Impedance: 4 ohms
Power Handling (RMS): 300 W
Frequency Response: 18 Hz
Sensitivity: 84 dB
Voice Coil Diameter: 76mm
Features:
- Long stroke design
- Linear high stability suspension
- Low damping rubber surround
- 3’’ copper voice coil
- Non-conducting reinforced fibre glass coil former
- Very stiff hard paper cone (made in-house)
- Vented cast aluminium chassis
- Large vented motor system and vented coilformer
- Long life silver lead wires
Possible box alignments:
- 1 cubic foot sealed for f3 of 40Hz and f6 of 30Hz. A little bass boost on the amp and you have a sealed box subwoofer.
- Your normal vented box alignments would have too long a port in too small a box. A modified extended bass shelf could be used as 2.5 cubic feet with a 3" diameter vent by 12" long for f3 of 21Hz.
