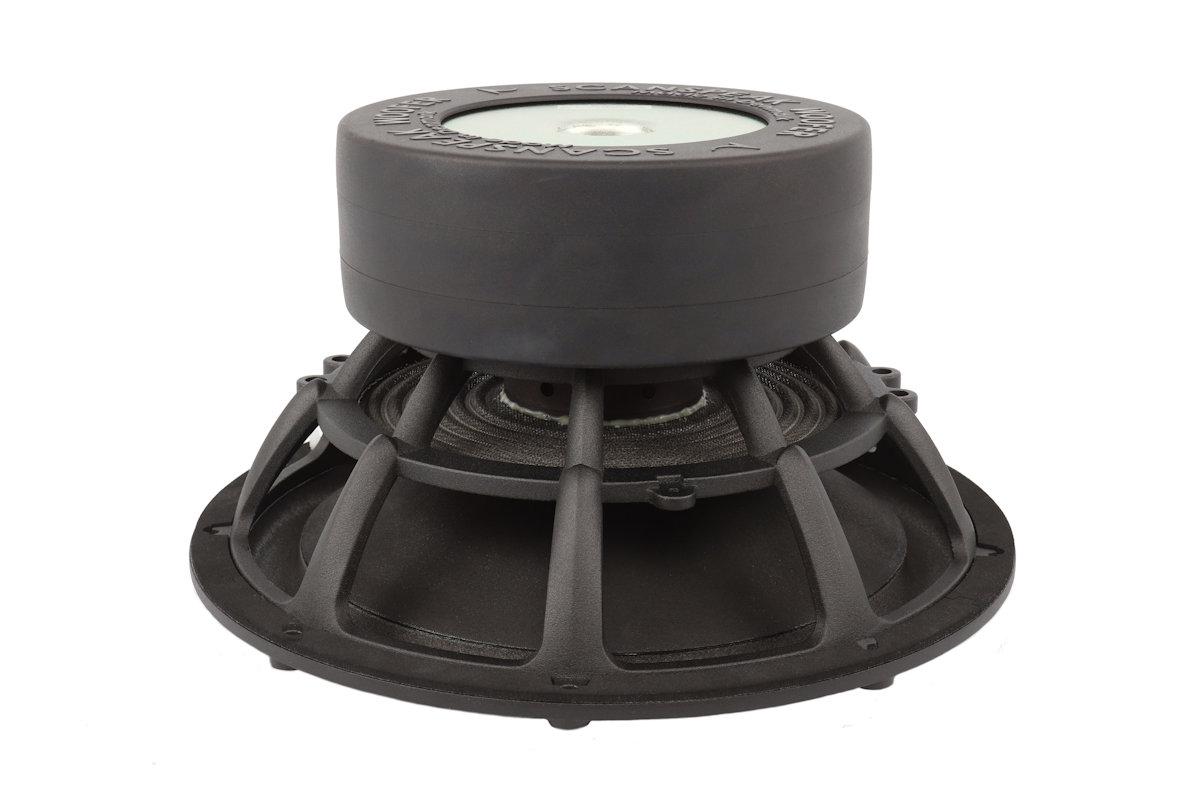

Scan-Speak 32W/8878T11 Revelator 13" High SPL Woofer

Scan-Speak Revelator 32W/8878T11 13" High SPL Paper Cone Woofer- 320mm- 8 ohm- 91.5 dB

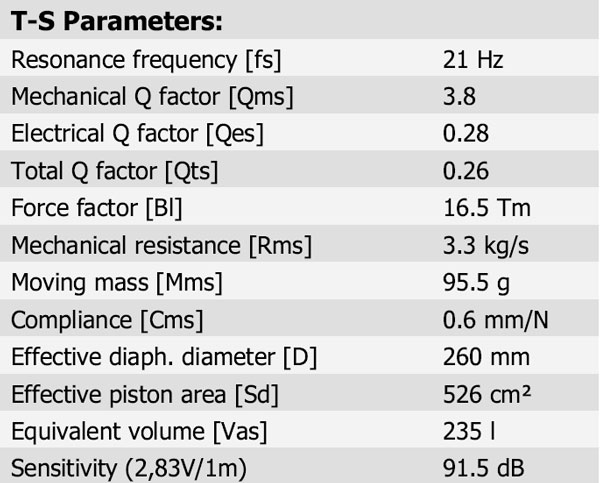

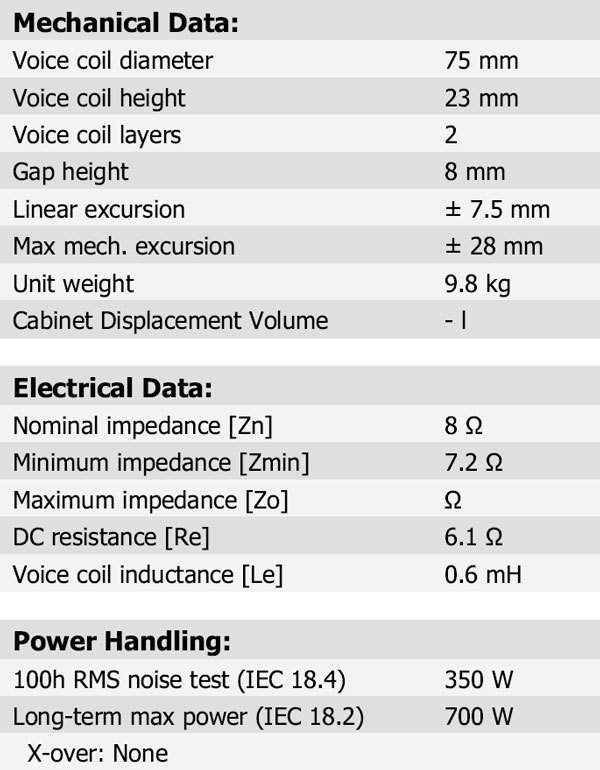

Spec Sheet PDF

New from Scan-Speak! The 32W/8878T11 woofer is optimized for high sensitivity applications. It offers an impressive 92 dB sensitivity at 2.83V/1m. It features a large 3” motor system with patented Symmetrical Drive, double ferrite magnets and a sandwich paper cone surrounded by a coated foam suspension.

Madisound recommends a 2-3 cf3 vented box (please see below) and this woofer will roll off in the 30Hz region.

• 91.5 dB Sensitivity @ 2.83V/1m
• Coated foam Surround

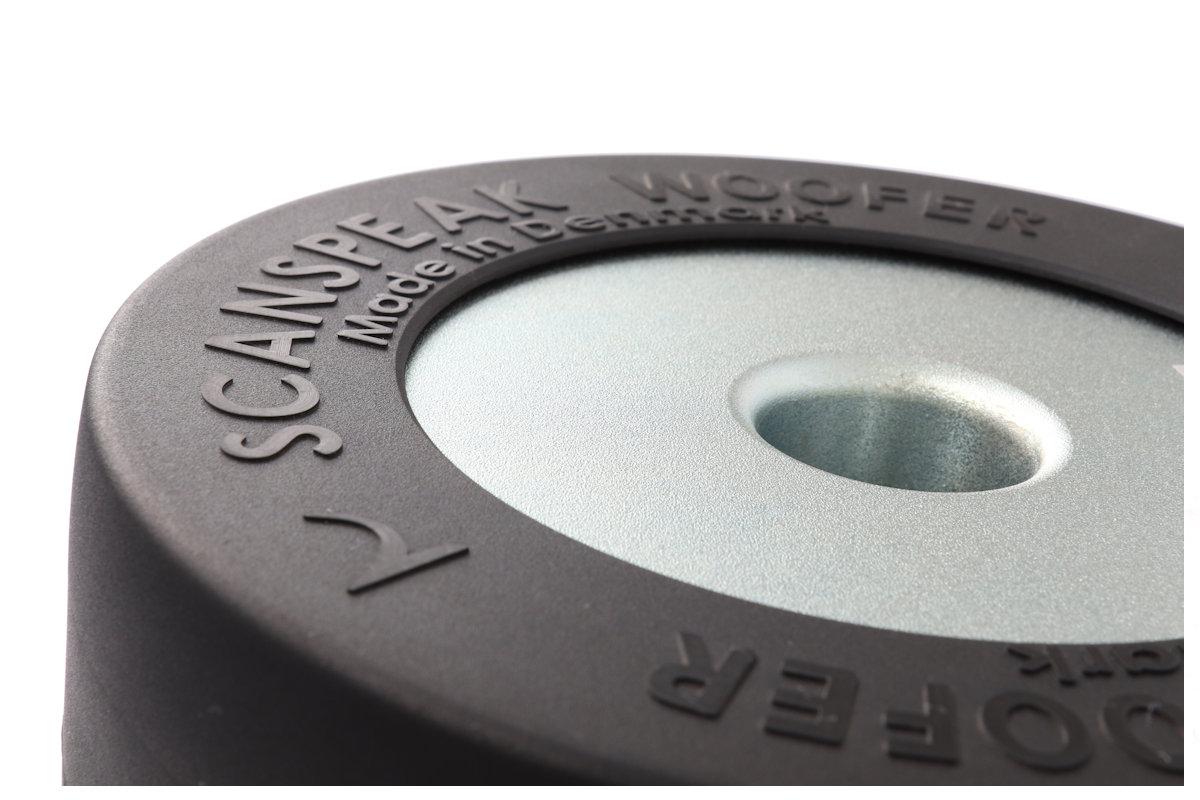

• Powerful motor with dual ferrite magnets

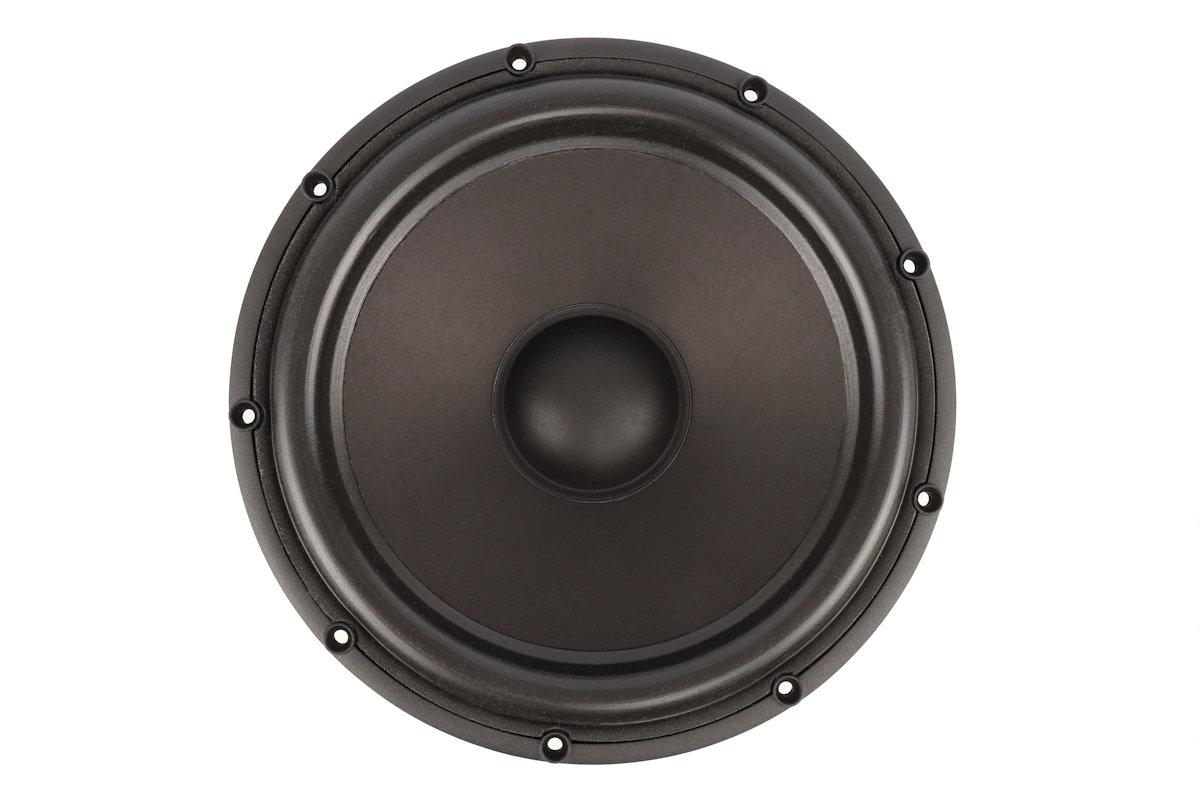

• Paper sandwich cone
• Patented Symmetrical Drive motor
• 3” Voice coil, Titanium former and paper reinforced

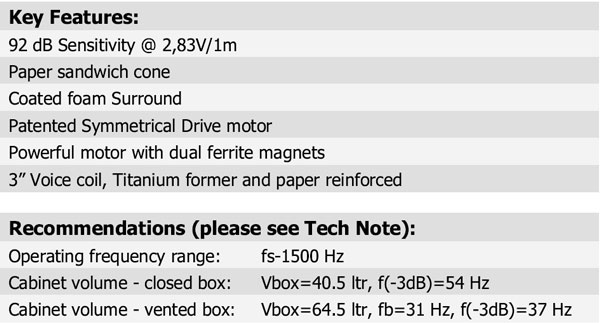

Possible alignments:

• 2.0 cubic feet with a 3" diameter vent by 6" long for F3 of 37Hz.
• 3.0 cubic feet with 4" diameter vent by 7.5" long for F3 of 31Hz.
