Peerless TC9FD-18-08 3.5" Full Range
- Coated paper cone with rubber surround
- Front mounted gasket for rear mount applications
- Copper cap on pole piece
- Polymer chassis

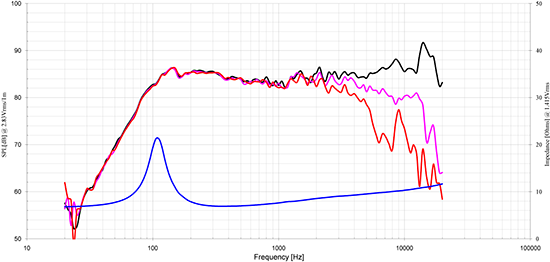

- Frequency response 100Hz to 20KHz
- High Qts indicates this driver will work in a small sealed enclosure
- Flange 83.7 mm square
- Cutout 78mm
- Depth 39mm
- There are 45 pieces to a case
- Larger terminal is positive, also marked with plus in red tab
This TC family 3.5 inch 8 ohm full-range driver,with ferrite magnet, paper cone, rubber surround, and plastic basket with front sealing gasket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and compact applications in mind.
The high Qts of this speaker indicates a sealed enclosure would be best. We recommend anything from 0.1 to 0.2 cubic foot for a roll off on the low end around 110Hz.
This product was previously branded as Vifa.
